Ref. 14012

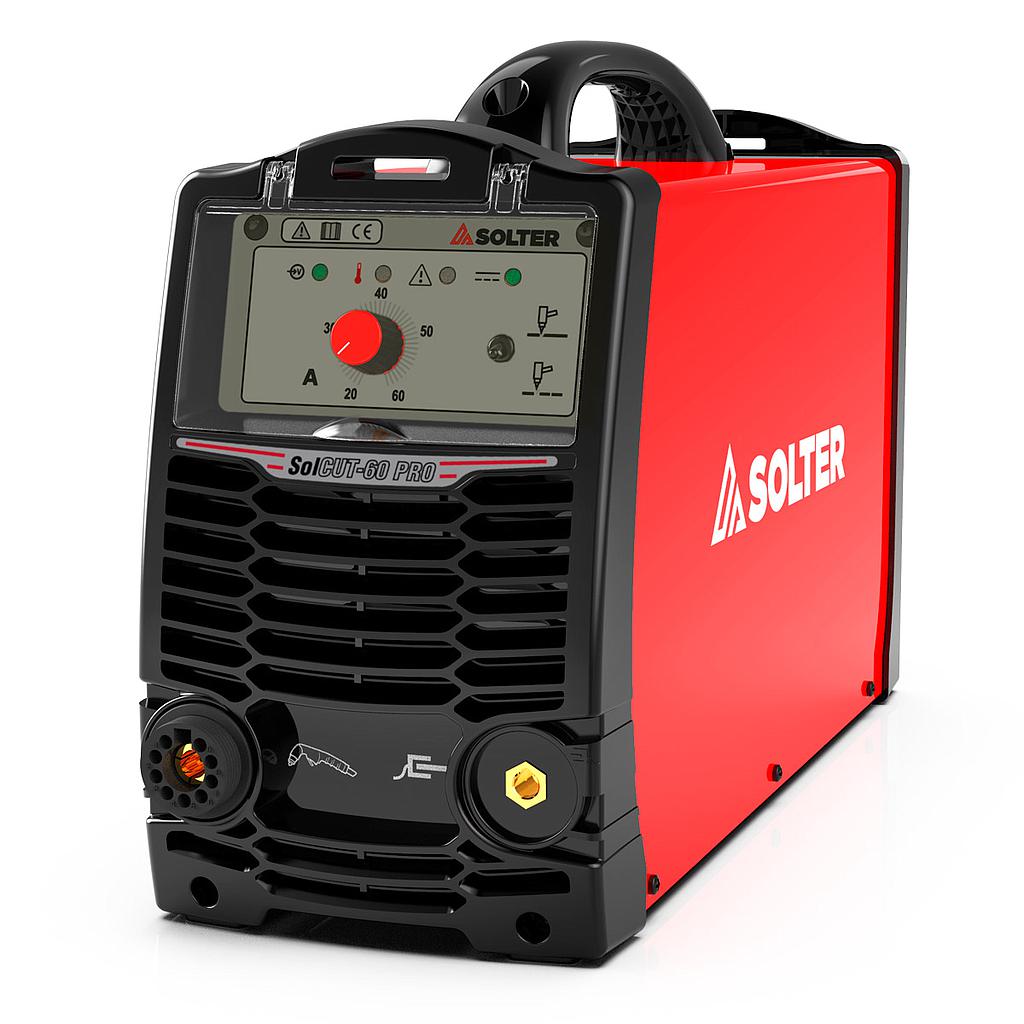

SOLCUT 60 PRO

1,690.00 € 1690.0 EUR Precio con iva: 2044.90 € 1,690.00 €

1,690.00 €


  • Cutting capacity ALUMINIUM
  • Cuttinh capaciity STEEL
  • Cutting capacity STAINLESS STEEL
  • Supply Voltage
  • Dimensions
  • Air flow
  • Protection index
  • Intensity at 60%(100%) a 40ºC
  • Intensity MAX.
  • Weight
  • Absorved power max.
  • Air pressure
  • Regulation
  • Duty Cycle at 40ºC
  • OCV
  • Imax

This combination does not exist.


· 60Amp plasma cutting equipment.
· 400V-3ph connection.
· Cut up to 22mm.
· Complete with ground clamp and torch.







Share this product:

· Equipo Inverter de corte por plasma altamente portátil con un ratio potencia-peso impresionantes.
· Con capacidad de corte de hasta 22mm y corte limpio de hasta 18mm, es el sistema ideal para trabajos de fabricación industrial y construcción metálica.
· Corte de todo tipo de materiales como acero al carbono, acero inoxidable y aluminio.

General
Intensity at 60%(100%) a 40ºC 48A (38A)
Intensity MAX. 60A
Regulation 10-60A
Duty Cycle at 40ºC 40%
Tech
Cutting capacity ALUMINIUM 22mm
Cuttinh capaciity STEEL 22mm
Cutting capacity STAINLESS STEEL 15mm
Air flow 150l/min
Air pressure 3.5-10bar
Electric
Supply Voltage 400V - 3ph
Absorved power max. 10Kva
OCV 300V
Imax 14,75A
Structural
Dimensions 430x170x270mm
Protection index IP23
Weight 18 Kg
