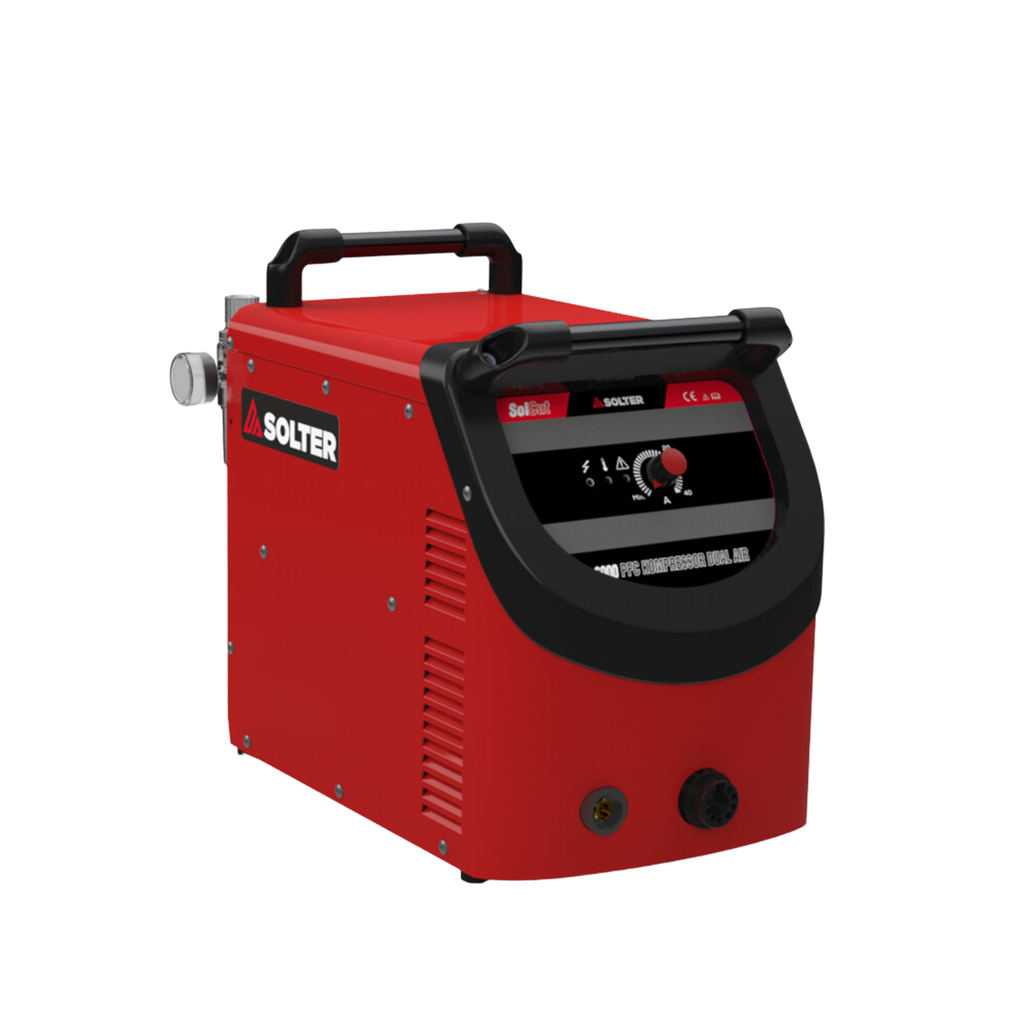

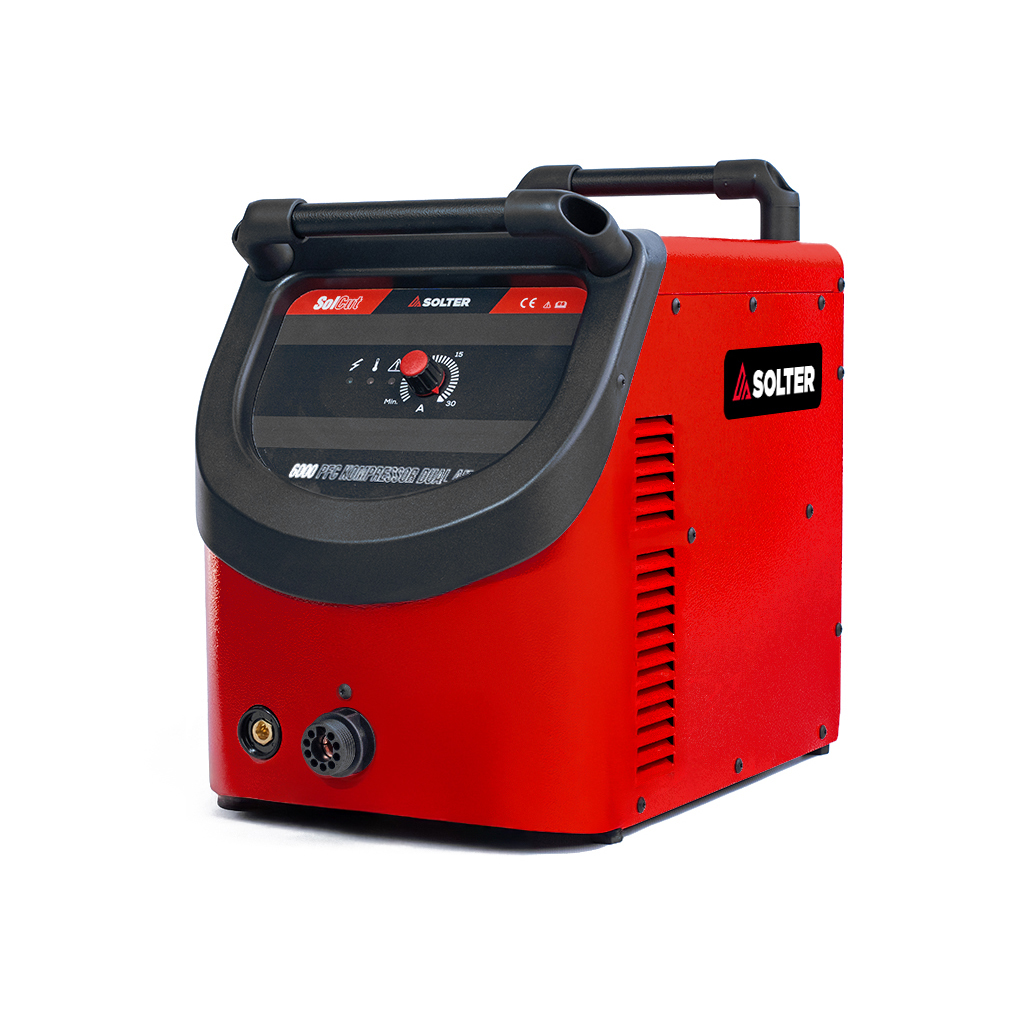

PLASMA SOLCUT 6000 KOMPRESSOR PFC DUAL
The PLASMA SOLCUT 6000 KOMPRESSOR PFC DUAL is a portable and self-contained plasma cutting machine that combines precision, versatility, and autonomy. With its built-in twin-cylinder compressor, it does not require external air, making it ideal for workshops and on-site jobs. It delivers a 40A output, capable of producing clean cuts up to 8 mm and maximum cuts up to 10 mm, while consistently maintaining a stable plasma arc thanks to its Inverter with PFC technology. Compact, efficient, and ready to use, it ensures professional results on steel, aluminum, stainless steel, and other alloys.
Main Features:
✓ Power of 40A at 35% duty cycle, ensuring efficient cuts on different materials without performance loss.
✓ Single-phase 230V connection, compatible with standard installations of any workshop or work environment.
✓ Integrated twin-cylinder compressor, allowing operation without the need for external air, ensuring full autonomy on-site or in areas without pneumatic systems.
✓ Professional cutting capacity: up to 8 mm with a clean finish and 10 mm maximum, delivering precise and consistent results.
✓ Inverter with PFC technology, optimizing power consumption, stabilizing the plasma arc, and enhancing cut quality even under voltage fluctuations.
✓ Automatic torch cooling system, extending the lifespan of consumables and preventing overheating during long working sessions.
✓ High performance on a wide range of materials: steel, aluminum, stainless steel, and multiple metal alloys.

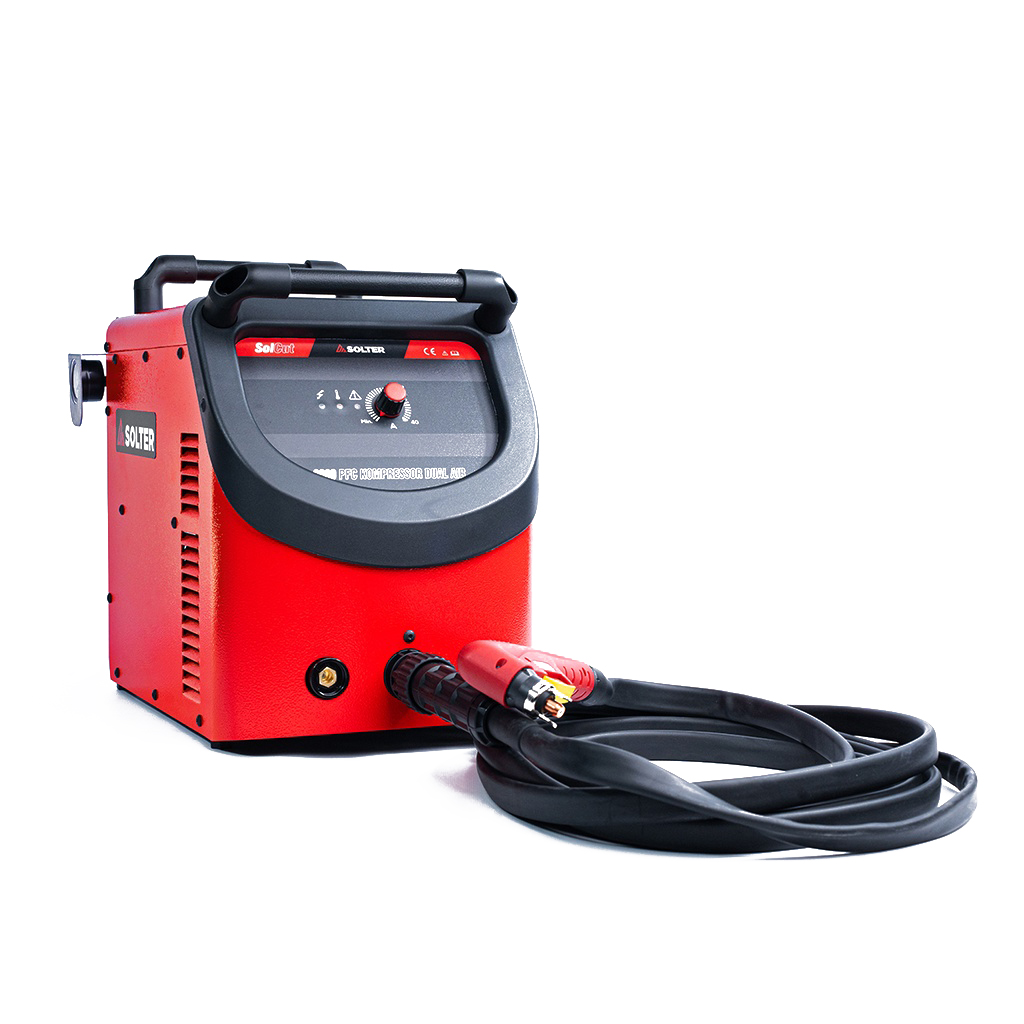

✓ Complete kit for immediate start-up, including cutting torch, built-in compressor, power cable, and ground clamp.
| General | |
|---|---|
| Intensity MAX. | 40A |
| Regulations | EN 60974-1 / EN 60974-10 Clase A |
| Regulation | 5 - 40A |
| Duty Cycle at 40ºC | 40A @ 100% |
| Tech | |
| Cutting capacity ALUMINIUM | 10mm |
| Cuttinh capaciity STEEL | 10mm |
| Cutting capacity STAINLESS STEEL | 6mm |
| Caudal de aire | 150l/min |
| Compresor | Incorporado |
| Air pressure | 3,5 - 10 bar |
| Optimal aire pressure | 4,5 bar |
| Electric | |
| I₁max | 20A |
| Absorved power max. | 4,6Kva |
| Supply Voltage | 220-240V 1Ph |
| OCV | 240V |
| Structural | |
| Dimensions | 440x270x350mm |
| Protection index | IP21 |
| Weight | 23 kg |
| Ventilation | FORZADA |
