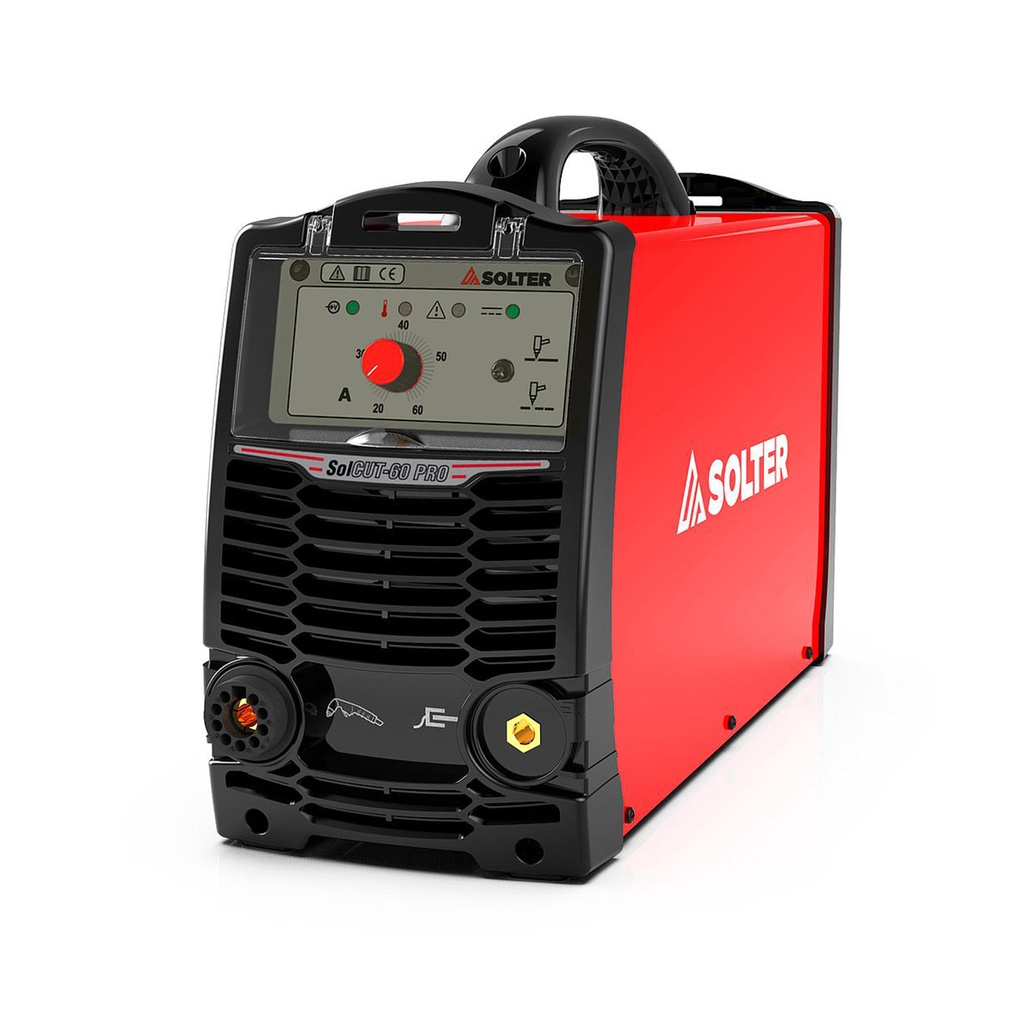

SOLCUT 60 PRO
The PLASMA SOLCUT 60 PRO from Solter is a high-efficiency, high-precision three-phase plasma cutter. Designed for cutting steel and alloys, it delivers a maximum cutting capacity of 22 mm and a recommended capacity of 18 mm, thanks to its inverter technology that stabilizes the arc and enhances durability. Compact and portable at just 12 kg, it features a 3~380/415/440V power supply and an automatic cooling system. Supplied ready to work, with a 3 m Ø16 ground clamp and PT-60 cutting torch included.
Main Features:
✓ Professional inverter technology: stable cutting arc with lower power consumption and reduced consumable wear.
✓ Recommended cutting capacity of 18 mm and maximum of 22 mm: reliable performance on steel and other conductive metals.
✓ Three-phase power supply 3~380/415/440V ±10%: ideal for industrial environments.
✓ High energy efficiency of 85%: lower consumption with maximum productivity.
✓ Automatic cooling system: protects the torch by maintaining airflow after each cut.
✓ IP23 protection: resistance against dust and splashing water.
✓ Reduced weight of 12 kg and compact dimensions (430x170x270 mm): excellent portability in the workshop or on site.
✓ Includes 3 m Ø16 ground clamp: ensures a safe and reliable connection for precise cutting.
✓ PT-60 cutting torch included: ready to operate from first use, compatible with standard market consumables.
✓ Use with compressed air or nitrogen, with a recommended pressure of up to 8 bar according to the manual.
| General | |
|---|---|
| Intensity at 60%(100%) a 40ºC | 48A (38A) |
| Intensity MAX. | 60A |
| Regulations | EN 60974-1, EN 60974-10 |
| Regulation range | 20 - 60A |
| Duty Cycle at 40ºC | 60A @ 40% |
| Tech | |
| Cutting capacity ALUMINIUM | 22mm |
| Cuttinh capaciity STEEL | 22mm |
| Cutting capacity STAINLESS STEEL | 15mm |
| Required airflow | 150l/min |
| Air pressure | 3,5 -10bar |
| Optimal aire pressure | 4,5 bar |
| Electric | |
| Maximum input current | 14,75A |
| Maximum absorbed power | 10Kva |
| Supply Voltage | 400V - 3ph |
| Open-circuit voltage | 300V |
| Structural | |
| Dimensions | 430x170x270mm |
| Protection index | IP23 |
| Weight | 12 kg |
| Ventilation | Forced |
