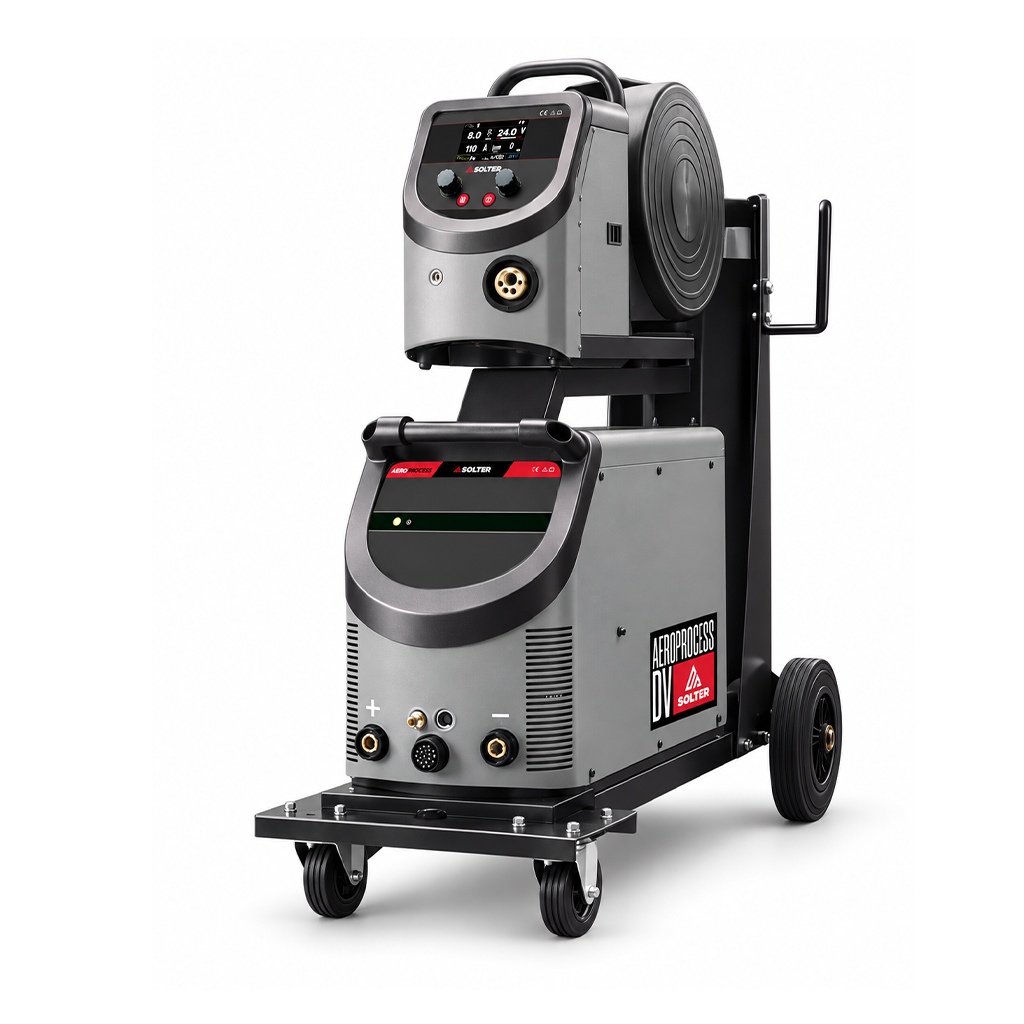

AEROPROCESS DV WI

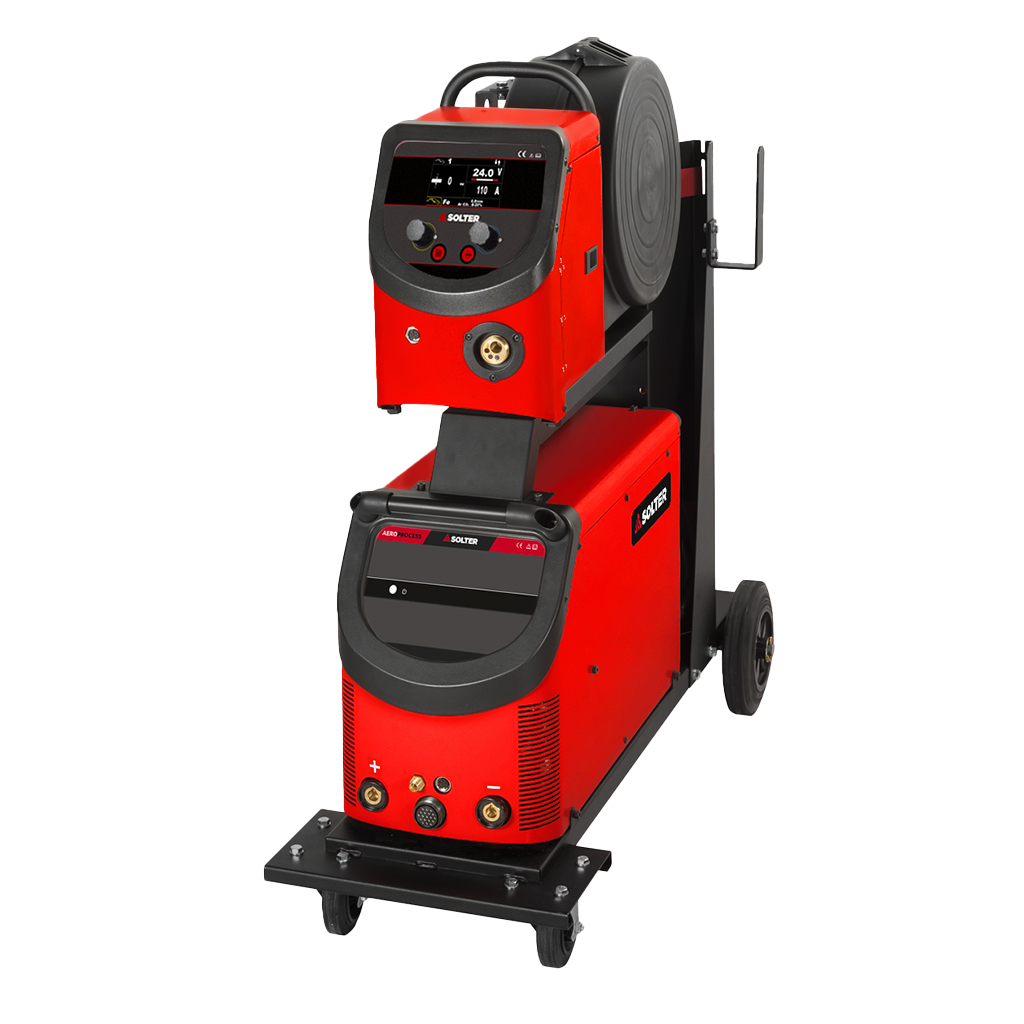

The AEROPROCESS DVW by Solter is a MIG/MAG, TIG, and MMA multiprocess welding unit with a separate wire feeder and water cooling, designed for the most demanding industrial environments. Available in 320A, 400A, and up to 500A versions, it combines customized power and advanced synergic technology to ensure professional results on steel, stainless steel, and aluminum. Its Aeroprocess LCD panel provides full arc control, even in pulsed mode. Robust, ergonomic, and configurable, it delivers maximum efficiency for high-performance workshops.
Main Features:
✓ Multiprocess Compatibility: MIG/MAG, TIG, and MMA welding for work on steel, stainless steel, aluminum, and CuSi3.
✓ Power tailored to your needs: Versions of 320A, 400A, or 500A, available in standard (STD) or pulsed arc (PULSE) options.
✓ Next-generation synergic technology: Job preselection and automatic parameter adjustment, ideal for complex industrial applications.
✓ Intuitive Aeroprocess LCD panel: Allows precise and user-friendly regulation of voltage, current, and wire speed.
✓ Wide compatibility with spools and wires: Supports D200 and D300 spools, wires from 0.6 to 1.6 mm, and a 4R roller system, optimizing any application.
✓ Professional three-phase connection: Operates at 400V and features Tunnel Automatic intelligent cooling, enhancing thermal efficiency.
✓ Robust industrial design: Compact chassis (655x275x1005mm), IP23S rating, and a weight of 65 kg, ideal for intensive work.
✓ Fully configurable accessories: Compatible with Aerofeed connections up to 10m, a variety of MIG/MAG torches, and ground sets up to 600A.
| General | |
|---|---|
| Intensity at 60%(100%) a 40ºC | 280A (260) // 320A (280A) // 430A (400A) |
| Intensity MAX. | 320A // 400A // 500A |
| Regulation | 10-320A(10,4-30V) // 10A-400A(10,4-34V) // 10-500A(10,4-36V) |
| Tech | |
| Usable wire coil | D200 (5 kg), D300 (15 kg) |
| Usable welding wire | 0,6 - 1,6 mm |
| Wire feeder rolls | 4R |
| Electric | |
| Supply Voltage | 400V - 3ph |
| Absorved power max. | 22KVA // 33KVA // 44KVA |
| Structural | |
| Dimensions | 655x275x1005mm |
| Protection index | IP23S |
| Regulation board | Aeroprocess LCD |
| Weight | 65Kg |
| Ventilation | TUNNEL AUTOMATIC |
| Configuraciones | |
| Potencia (Amp) | 320 or 400 or 500 |
| Version | BASIC or PULSE |
| Conexión Aerofeed | 73362 - 1,7m x Cu 70mm² or 73363 - 5m x Cu 70mm² or 73364 - 10m x Cu 70mm² |
| Antorcha MIG/MAG | SX-36 4m + Sirga Acero 1.0-1.2mm or SX-36 3m + Sirga Grafito 1.0-1.2mm or SX PULSE 4m + Sirga Acero 1.0-1.2mm or SX PULSE 3m + Sirga Acero 1.0-1.2mm or Sin antorcha |
| Conjunto Masa | 06114 - 3m Cu35mm 35-50 400A or 10199 - 3m Cu50mm 35-50 600A or Sin pinza |
