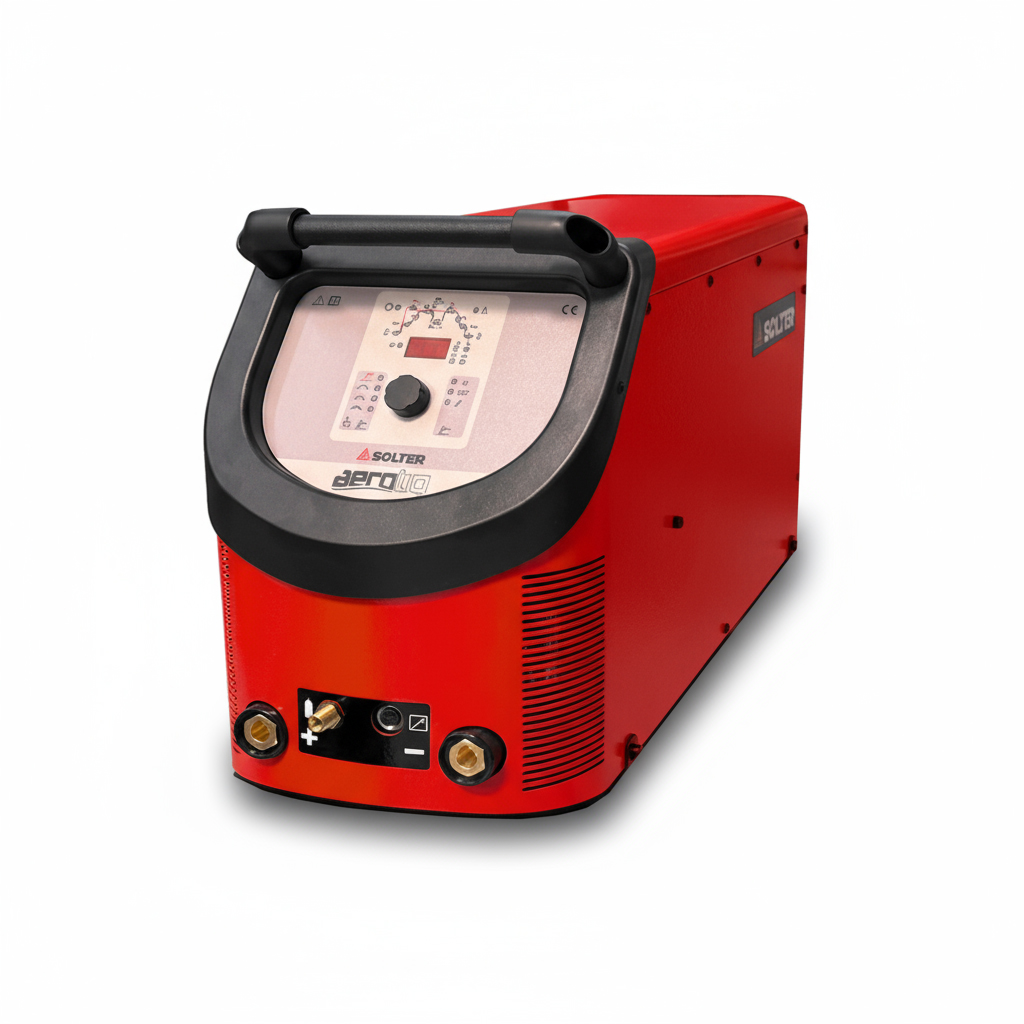

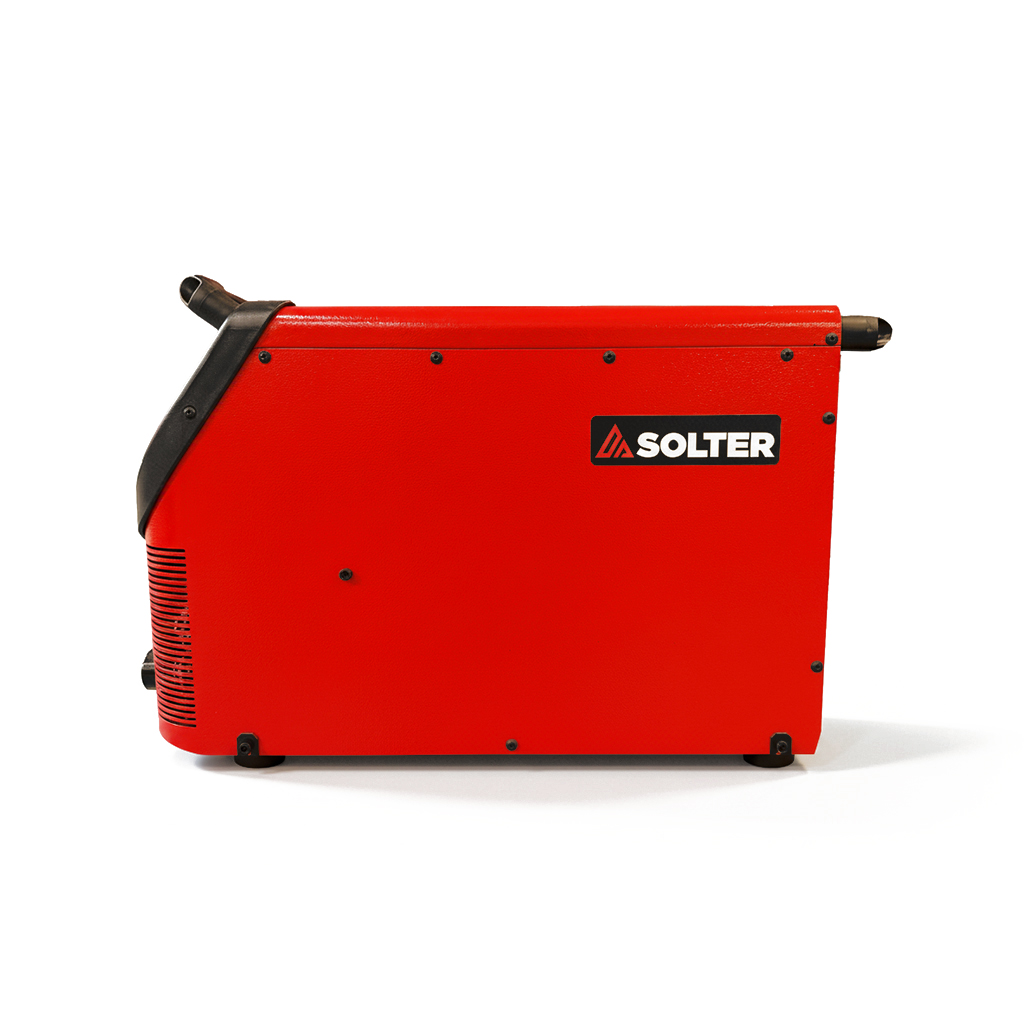

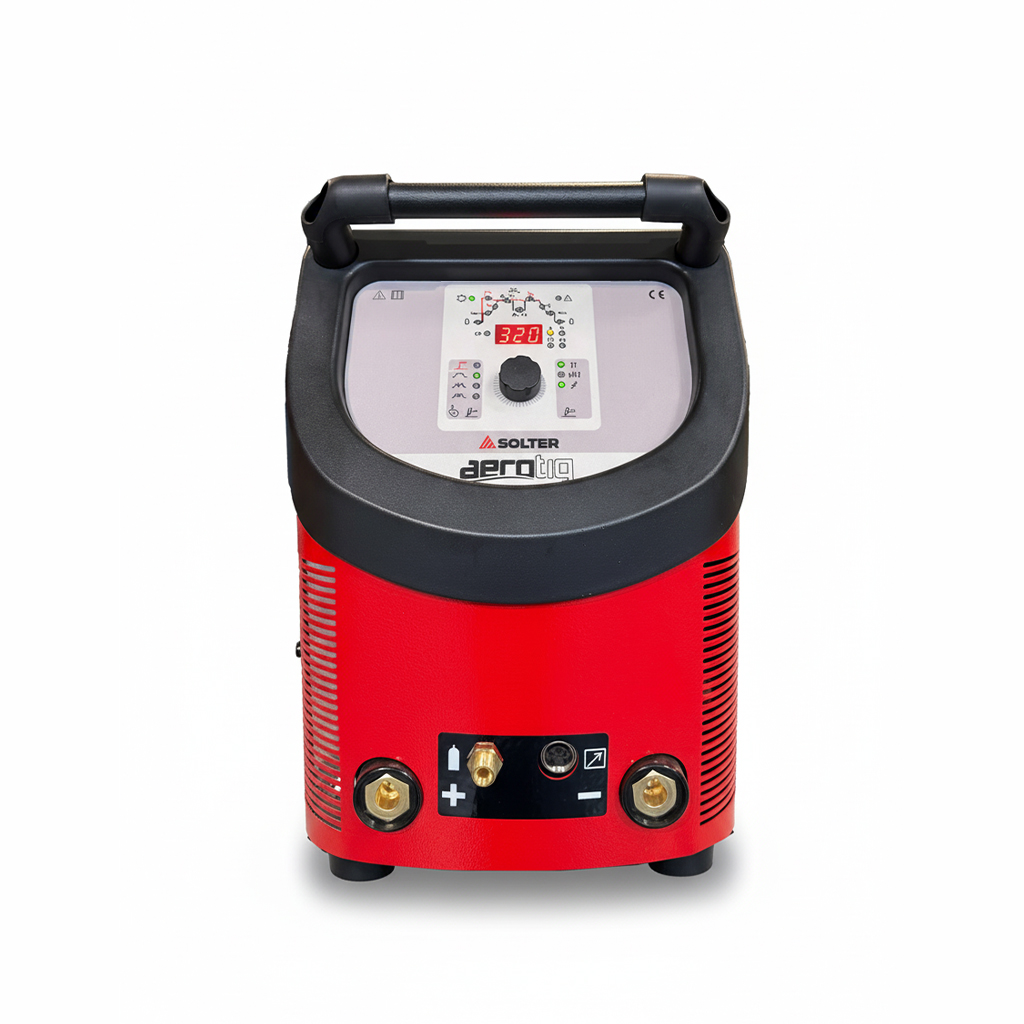

AEROTIG DC PRO
The AEROTIG Pro 320A DC and 400A DC welders from Solter are designed to handle demanding welding tasks, both in TIG and MMA. Equipped with high-performance inverter technology, these units deliver an extremely stable arc and precise digital control. They feature professional functions such as Hot-Start, Arc-Force, Anti-Stick, and Pulsed TIG, along with efficient tunnel-type ventilation and an intelligent STAND-BY mode. With their 320A and 400A power output, they ensure continuous performance even under the most extreme conditions, making them ideal for professionals seeking reliability, efficiency, and adaptability in every project.
Main Features:
✓ Power source designed for extreme conditions, suitable for both MMA and TIG processes, delivering continuous professional performance in intensive and industrial applications.
✓ Available in 320A and 400A versions, ideal for extended welding without interruptions, even during heavy-duty work shifts.
✓ “Low Voltage Inverter” technology, delivering 30% higher energy efficiency compared to traditional power sources, reducing consumption and extending the equipment’s lifespan.

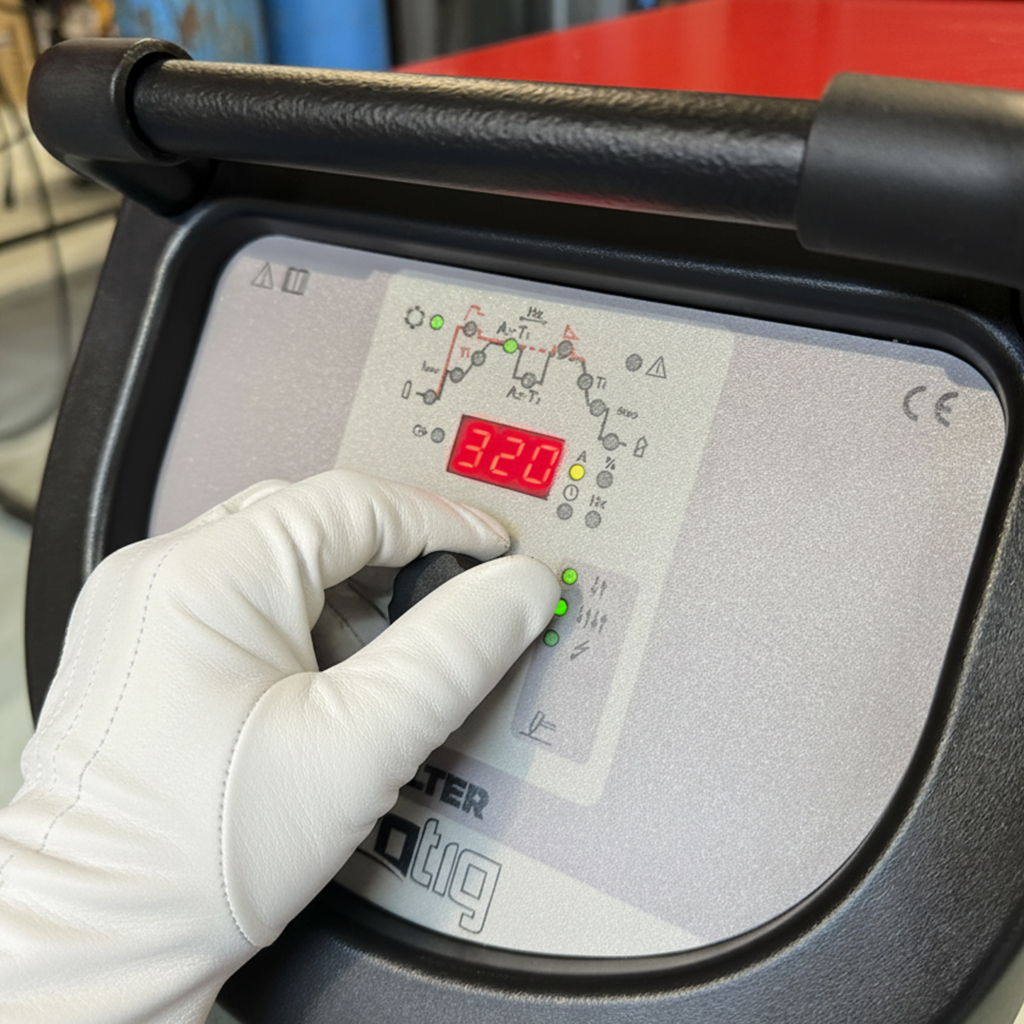

✓ Fully digital control of the welding curve, enabling advanced customization of all parameters: current, pulsing, ramps, pre/post gas, among others.
✓ Dual tunnel-type ventilation, directing airflow to prevent dust ingress and operating only when needed, protecting electronic components.
✓ Intelligent STAND-BY mode, which partially deactivates the system when not in use, optimizing energy consumption and reducing wear.
✓ Advanced functions included: Anti-Stick, Hot-Start, Arc-Force for MMA; Lift-Arc, Contact TIG, and TIG HF for TIG processes.
✓ Configurable TIG welding modes: 2T, 4T, Pulsed TIG, dual current level, upslope/downslope, to suit every type of application.
| General | |
|---|---|
| Duty Cycle at 40ºC | 45% |
| Regulation range | 10 - 320/400A (10,4 - 20,8V) |
| Intensity MAX. | 320A // 400A |
| Intensity at 60%(100%) a 40ºC | 320A (280A) // 400A (320A) |
| Regulations | EN60974-1, EN60974-10 |
| Tech | |
| Usable electrodes TIG | 1.6mm-4.0mm |
| Usable electrodes MMA | 1,6 - 5.0mm |
| TIG pulsing frequency | 500Hz |
| Electric | |
| Operating range | 360-440V |
| Maximum absorbed power | 15,3Kva |
| Fuse | 16A |
| Supply Voltage | 3ph-400V |
| Structural | |
| Ventilation | DOUBLE auto TUNNEL |
| Weight | 26/70 kg |
| Regulation board | AEROTIG |
| Protection index | IP23 |
| Dimensions | 280x360x465/1020mm |
| Configuraciones | |
| Power (Amp) | 320 or 400 |
| Cooler | Sin Refrigerador or 56172 - AEROCOOL 30 + Carro UTS 200 |
| Transport Cart | No Cart or 10252 - UTS 200 Cart + Aerotig Cart Support |
| TIG Torches | 4m TIG Torch SR-26 D35/50 or SR-26 D35/50 8M or SR-18W D35/50 4M or SR-18W D35/50 8M or Without TIG torch |
| Torch neck | Rigid Neck Torch or Flexible Neck Torch SR26 or Flexible Neck Torch SR18W |
| Torch control | Double Push Button or Push Button + Remote |
| Ground Clamp Set | 06114 - 3m Cu35mm 35-50 400A or No clamp included |
| Version | PULSE |
