Ref.
K0248

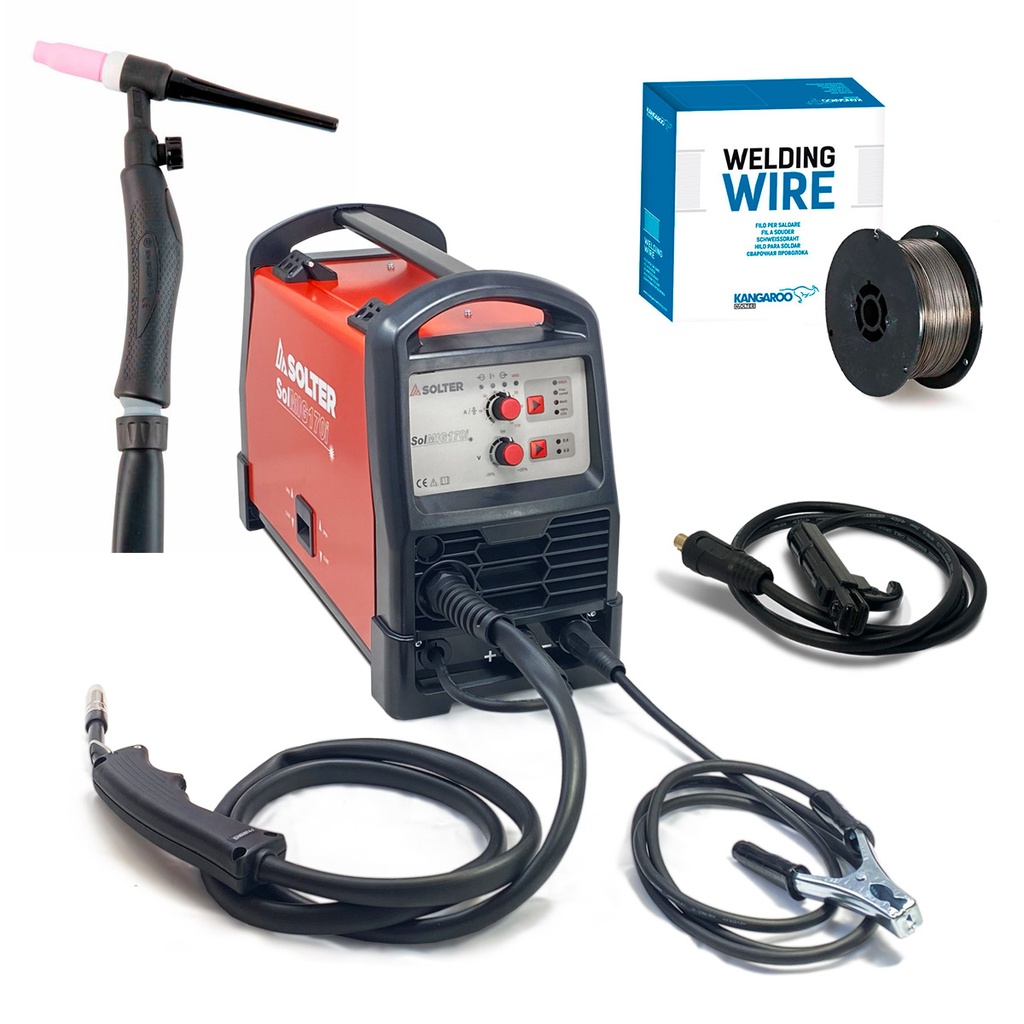

KIT MULTIPROCESS SOLMIG 170
· Equipo\xa0MIG Multiproceso (Electrodo y MIG/MAG).\xa0
· Soldadura de hilo con y sin gas hasta 0,8mm.\xa0
· Conexión\xa0230V-1ph.\xa0
· Admite bobina D200 (5kg).\xa0
· Incluye pinza de masa y antorcha MIG.
The SOLMIG-170 wire machine is a multiprocess equipment (MIG/MAG and Electrode) with Inverter technology, ideal for light work, designed to be easy and intuitive to use.
Their single-phase connection, as well as the possibility of using wire without external gas thanks to polarity inversion, give them enormous flexibility.
Both wire speed/power and arc height can be adjusted, which makes it possible to weld all kinds of thicknesses with very good results.
| General | |
|---|---|
| Duty Cycle at 40ºC | 35% |
| Regulation range | 20-150A |
| Intensity MAX. | 130A |
| Intensity at 60%(100%) a 40ºC | 90A (77A) |
| Regulations | EN-90971-1, EN90974-10 |
| Tech | |
| Usable electrodes MMA | 1,6mm - 3,25mm |
| Usable wire coil | D200 - 5kg |
| Wire feeder rolls | 2R |
| Usable welding wire | 0,6 - 0,8 mm |
| Electric | |
| Open-circuit voltage | 58V |
| Maximum absorbed power | 4Kva |
| Fuse | 16A |
| Supply Voltage | 230V- 1Ph |
| Structural | |
| Ventilation | FORCED |
| Weight | 7,7 kg |
| Regulation board | SOLMIG DIGITAL |
| Protection index | IP21S |
| Dimensions | 367x153x290mm |
