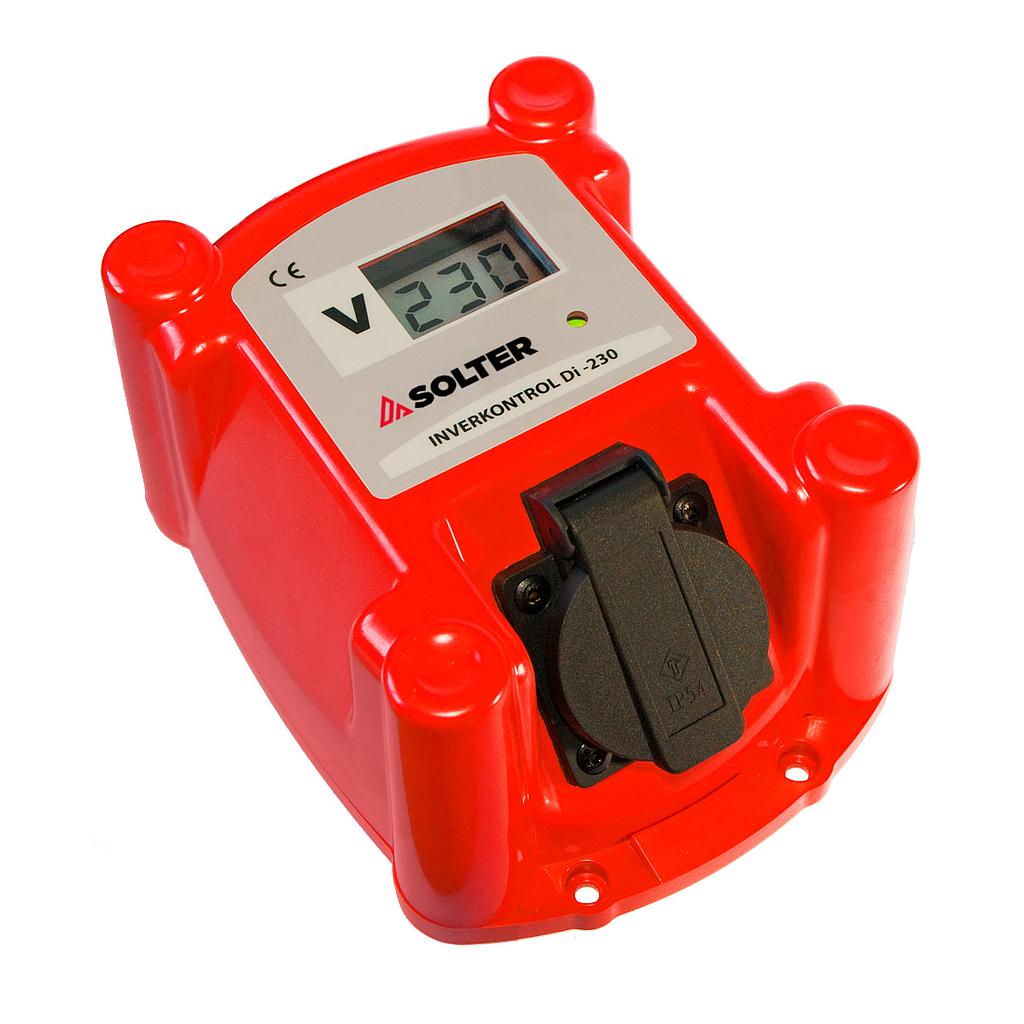

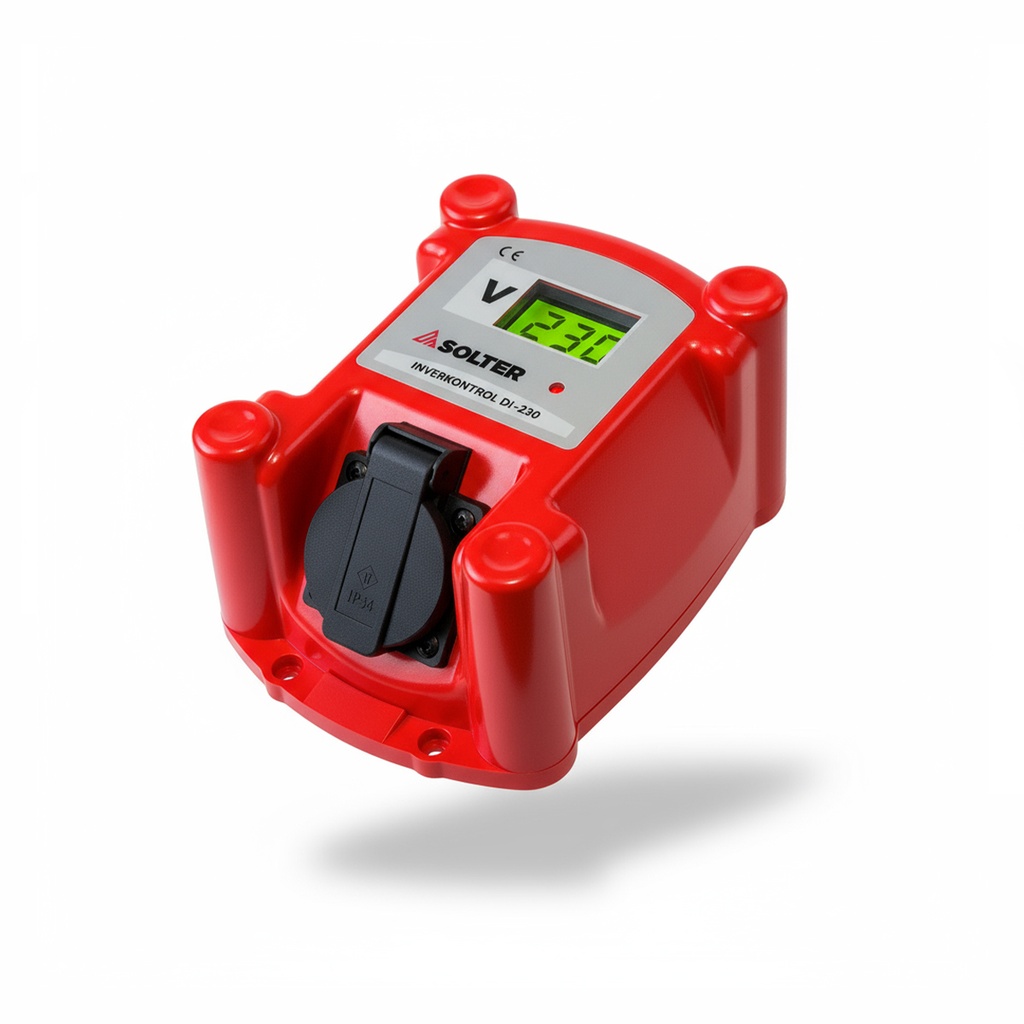

INVERKONTROL Di 230
The INVERKONTROL DI-230 by Solter is a protection device designed to safeguard INVERTER welding equipment against voltage fluctuations. It automatically disconnects the power supply when the voltage is outside the safe range of 160V to 280V, preventing damage caused by overloads or voltage drops. Its high-precision digital display (±5%) allows real-time monitoring of the input voltage, with integrated status indicators. With 30A input current and 8.4 kW rated power, it is ideal for environments with generators or unstable power grids. Its compact design (175x125x90 mm) and IP44 rating ensure durability, easy installation, and safe, reliable performance.
Main Features:
✓ Automatic protection against voltage fluctuations, disconnecting the power supply if it exceeds the range of 160V to 280V, protecting the proper operation of the equipment.
✓ High-precision digital display (±5%), with real-time input voltage reading and visual status indicators that enhance operational control.
✓ High load capacity, supporting a maximum input current of 30A and up to 8.4 kW of power, ideal for single-phase welding machines up to 200 A.
✓ Optimized for environments with autonomous generators or electrical instability, preventing damage to sensitive equipment thanks to its immediate intervention.
✓ Compact and robust design (175x125x90 mm, 1.1 kg), allowing quick installation between the power source and the welding equipment.
✓ IP44 protection rating, providing resistance against water splashes and the ingress of solid particles, making it suitable for demanding work environments.
✓ Natural convection cooling, with no moving components, promoting a longer service life and reduced maintenance.
✓ Full compatibility with single-phase INVERTER equipment, extending service life and maintaining stable performance.
✓ Operating frequency compatible with 50 Hz and 60 Hz power grids, adapting to different electrical supply conditions.
✓ In-line installation, connecting between the power source (mains supply or generator) and the welding equipment for direct and effective protection.
| Electric | |
|---|---|
| Maximum input current | 30A |
| Operating range | 160V - 280V |
| Supply Voltage | 230 1ph |
| Structural | |
| Weight | 1,1Kg |
| Dimensions | 175x125x90mm |
