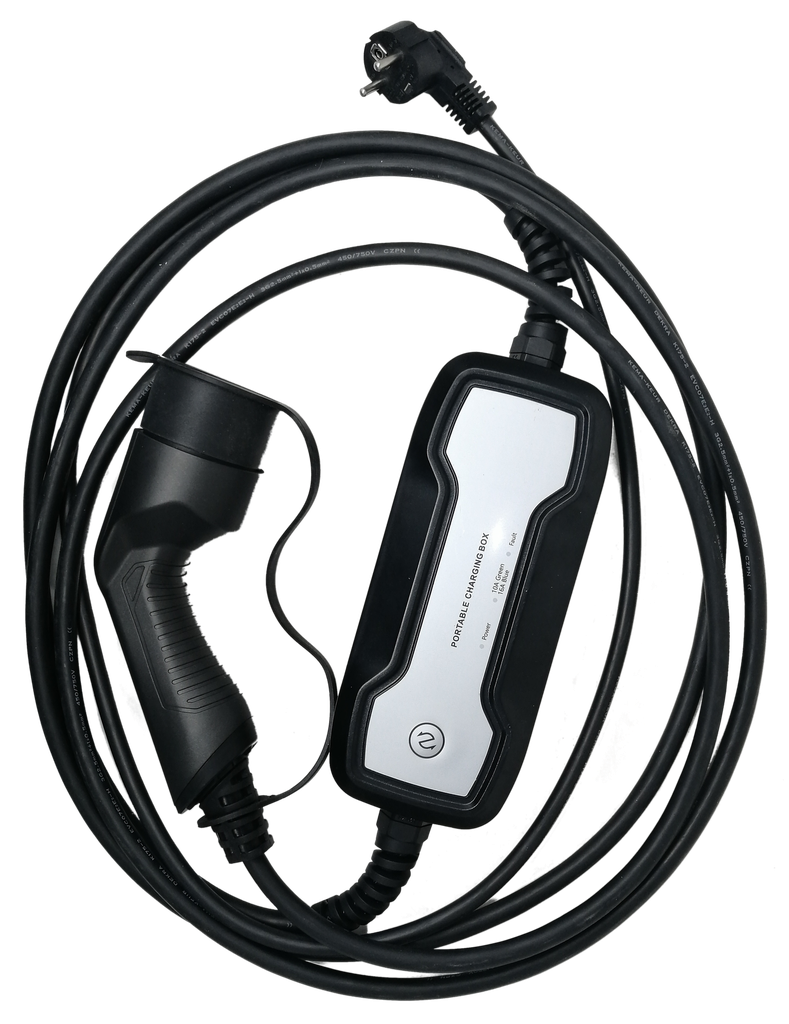

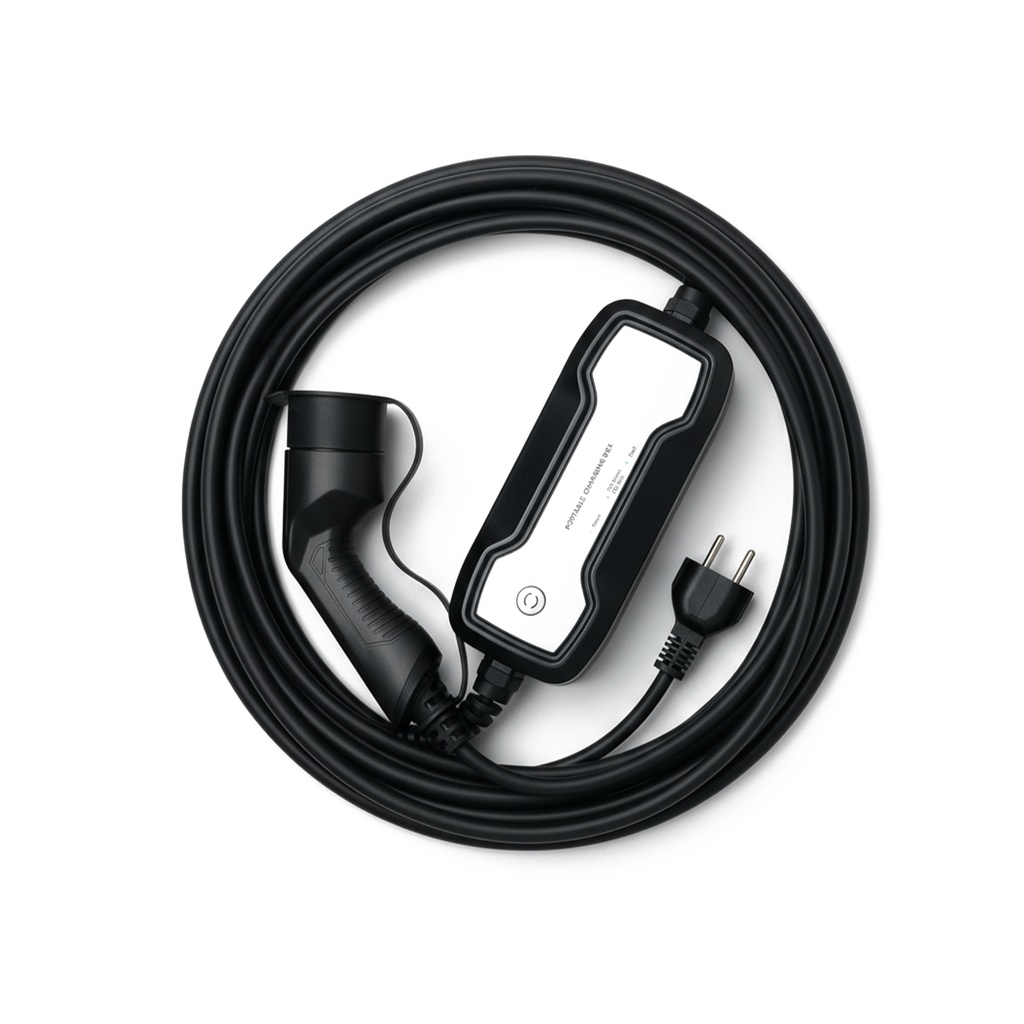

CHARGER EVMOU-16
The EVMOU-16 portable charging cable for electric vehicles and PHEVs is designed to provide safe and controlled charging in both domestic and public environments. It features a Type 2 connector (IEC 62196-2) and allows an adjustable current from 6 to 16 A, reaching a maximum power output of 4 kW. Its electronics with an intelligent chip monitor the charging process and automatically detect anomalies. The assembly includes IP66 protection, suitable for outdoor use, and a construction designed to withstand more than 10,000 connection cycles. It is compatible with most electric vehicles on the market, including Tesla and Renault Zoe models.
Main Features:
✓ Type 2 Connector (IEC 62196-2): Compatible with most electric vehicles and PHEVs marketed in Europe, including Tesla, Renault Zoe, and Hyundai Kona.
✓ Adjustable current 6–16 A: Allows the charging current to be adapted to the available electrical installation and the vehicle’s requirements.
✓ Maximum power 4 kW: Suitable for controlled charging from domestic sockets and compatible power supply points.
✓ IP66 protection: Resistant to dust and water jets, suitable for outdoor use and demanding environmental conditions.
✓ Integrated intelligent chip: Monitors the charging process, detects faults, and protects the system against electrical anomalies.
✓ Comprehensive electrical protections: Safety against short circuits, overvoltage, undervoltage, earth leakage, and overheating.
✓ LED status indicators: Clear visual information on the charging process and any potential alerts.
✓ High-durability construction: Manufactured in ABS and UL94 V0 thermoplastic, operational between -25 °C and +55 °C and with a service life exceeding 10,000 cycles.
✓ Portable format: Compact design intended for frequent transport and flexible use at different charging points.
| General | |
|---|---|
| Regulations | IEC 61851, IEC 62752 |
| Tech | |
| Connections | Shuko - Type 2 |
| Leak Protection | I∆n 30mA 6mA |
| Electric | |
| Input Current | 230V - 1ph |
| Selectable Rated Charging Current | 10A / 16A |
| Structural | |
| Longitud | Input Cable 1.5m | Output Cable 4m |
| Protection index | IP66 |
| Uncategorized | |
| Operating temperature | -40°C / +50°C |
