SOLCUT 45D

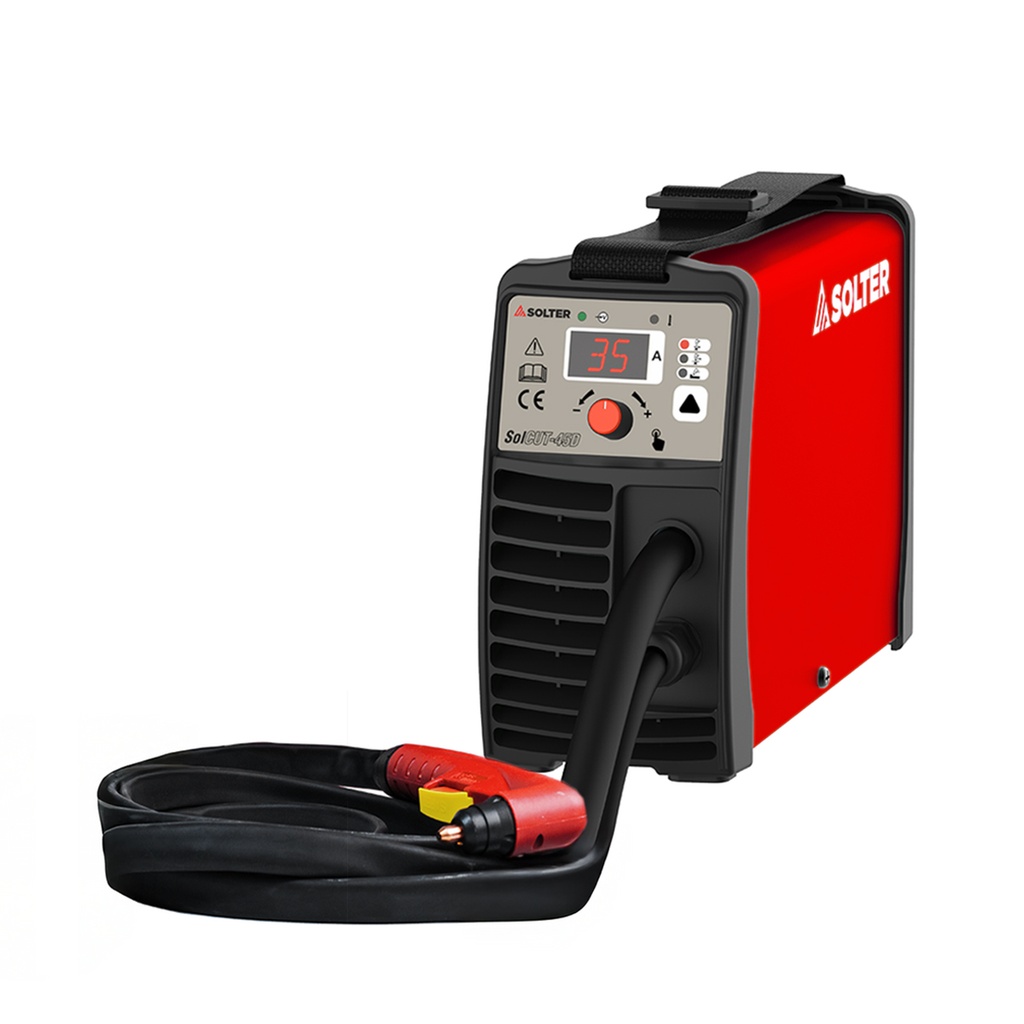

The SOLCUT 45D from Solter is a 35A inverter plasma cutter, designed for demanding industrial maintenance and repair work. It operates with a single-phase 230V power supply, achieving precise cuts on metals up to 6 mm thick. Its advanced technology ensures high energy efficiency of 87%, and its compact design makes it easy to use in confined spaces. Ideal for professionals seeking versatility, lightness, and professional results in every cut.
Main Features:
✓ 35A plasma cutting with inverter technology for greater precision and arc stability.
✓ Cutting capacity up to 6 mm on materials such as iron, aluminum, stainless steel, or galvanized steel.
✓ Single-phase 230V power supply (1ph), ideal for workshops, industrial repairs, and mobile jobs.
✓ High efficiency of 87% and reduced consumption in standby mode (20W), optimizing energy use.
✓ Compact and lightweight: weighing only 7.5 kg with dimensions of 370x110x205 mm, it is easy to transport and store.
✓ Intuitive control panel with digital display for precise current adjustment and error detection.
✓ Three working modes (normal, grating, and gouging) adaptable to different types of cutting.
✓ Thermal and air pressure protection: automatic detection of overheating and insufficient air.
✓ Optimal compressed air pressure of 3.5 bar with integrated filtration for greater equipment durability.

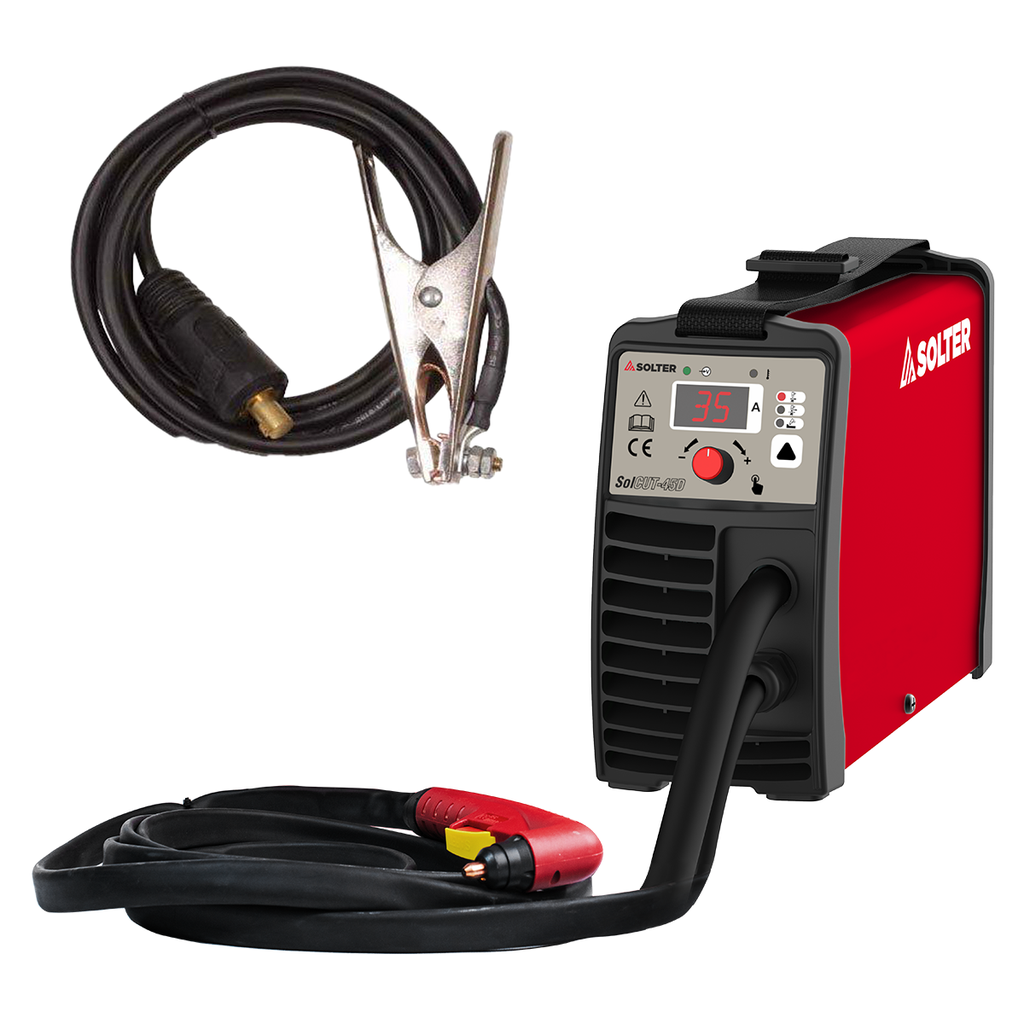

✓ Includes torch, ground clamp, and cable, ensuring immediate and safe setup.
| General | |
|---|---|
| Intensity MAX. | 35A |
| Regulations | EN60974-1, EN60974-10 |
| Regulation | 20 - 35A |
| Tech | |
| Cutting capacity ALUMINIUM | 5mm |
| Cuttinh capaciity STEEL | 6mm |
| Cutting capacity STAINLESS STEEL | 5mm |
| Air flow | 150l/min |
| Air pressure | 3,5 -10bar |
| Optimal aire pressure | 3,5 bar |
| Electric | |
| Absorved power max. | 3Kva |
| Supply Voltage | 230V - 1Ph |
| OCV | 330V |
| Structural | |
| Dimensions | 370x110x205 |
| Protection index | IP21 |
| Weight | 7,5 kg |
| Ventilation | FORZADA |
