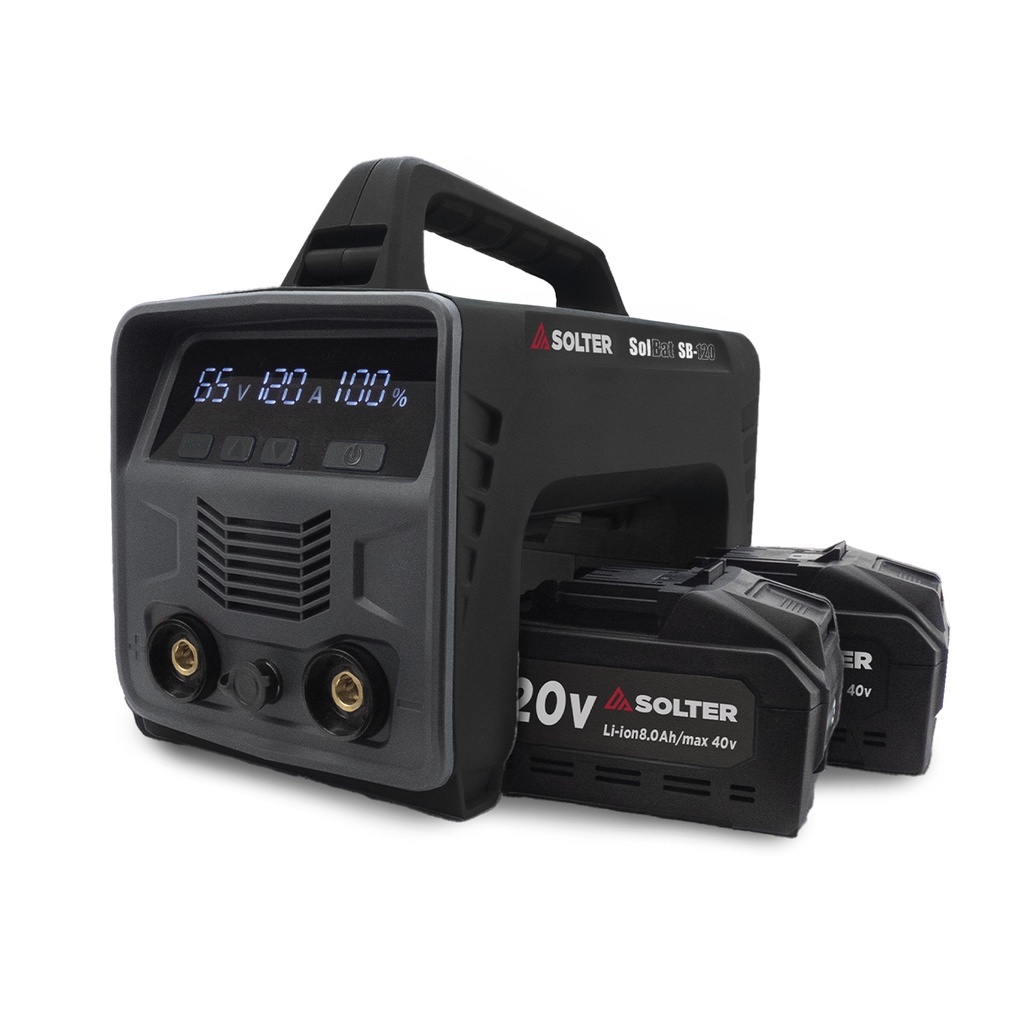

SOLBAT SB-120 PACK 2 BATTERIES
The Solter SOLBAT SB-120 welder redefines industrial portability. This unit is supplied as a complete kit with two lithium batteries (20V/40V), removing the need for cables or generators. The SOLBAT SB-120 delivers a welding current of 90 A and can reach peak levels of up to 120 A. The display lets you set values between 5 and 120 A for welding electrodes up to 3.25 mm anywhere, from agricultural repairs to work at height. With a design weighing just 4 kg, it’s the ultimate tool for professionals looking for power, freedom and immediate autonomy.
Key Features:
✓ Ready-to-Use Kit (2 Batteries): Includes two batteries (BAT-20V) and charger as standard, ensuring immediate power at no extra cost.
✓ Welding current of 90 A, with peaks of up to 120 A, thanks to its built-in batteries, allowing you to weld with 2.5 mm and 3.25 mm electrodes with greater arc stability.
✓ MMA and MIG Multi-process: Compatible with all electrode types and gasless flux-cored wire welding (Flux) using the optional Spool-Gun torch.
✓ Intelligent Digital Control: Intuitive panel to check charge and adjust Hot-Start and Arc-Force, ensuring a stable, stick-free arc.
✓ Ultralight and Ergonomic: Compact design weighing just 4 kg (batteries included) with carrying strap, ideal for reducing fatigue during transport.
✓ Energy Efficiency: On-demand forced ventilation that protects the electronics and maximizes battery life.
✓ Total Safety: IP21 protection and automatic systems against overheating and voltage spikes for a long service life.
| General | |
|---|---|
| Use | Repair, maintenance, field welding |
| Regulation range | 5 - 120A |
| Tech | |
| Rated Power | 2000w |
| Maximum charging capacity | 80V 296Wh |
| Welding Time | Approx: 14 electrodes of 2.0 mm or 7 electrodes of 2.5 mm. |
| Electric | |
| Input voltage | 80 V (2 x 40 V batteries) |
| Charging time 0–100% | 2 h 100% |
| Operating range | From -15°C to +40°C |
| Structural | |
| Weight | 4Kg |
| Dimensions | 266 x 158 x 220 mm. |
| Protection index | IP21 |
| Uncategorized | |
| Current intensity (A) | 90A |
| BATTERY PACK | Pack of 2 Batteries |
