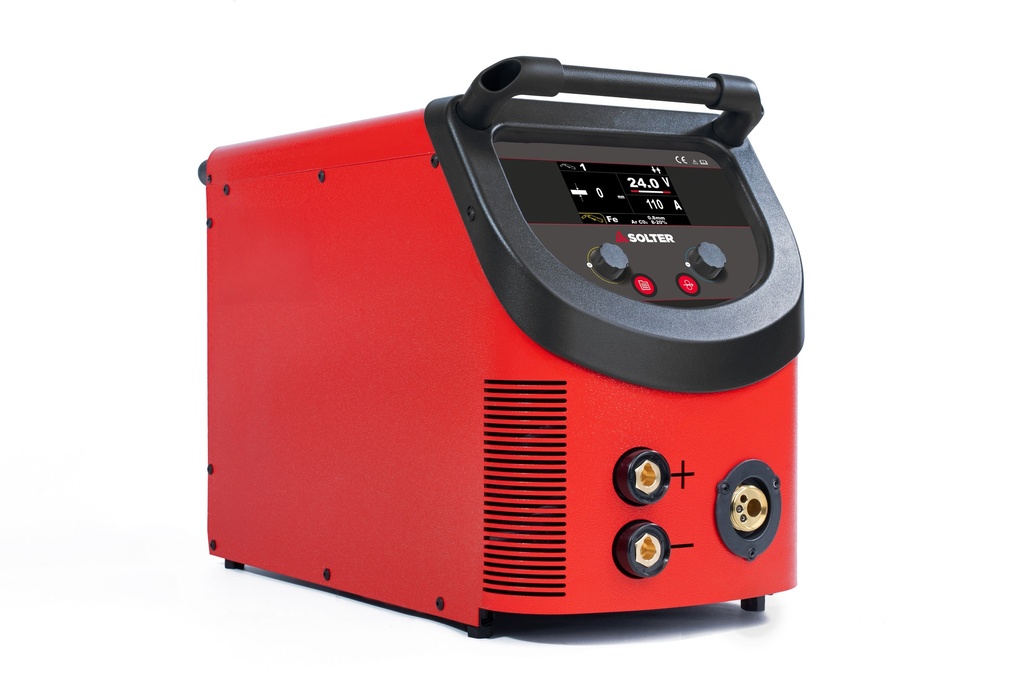

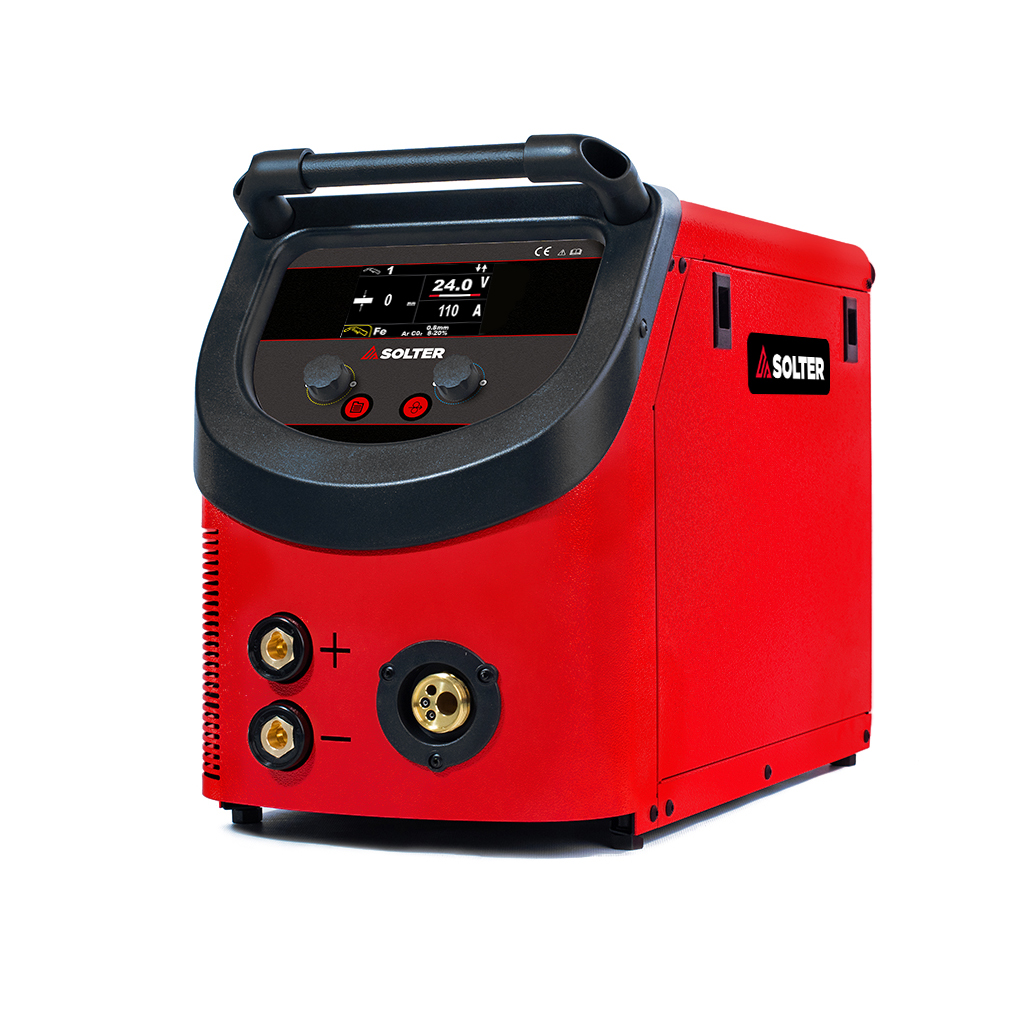

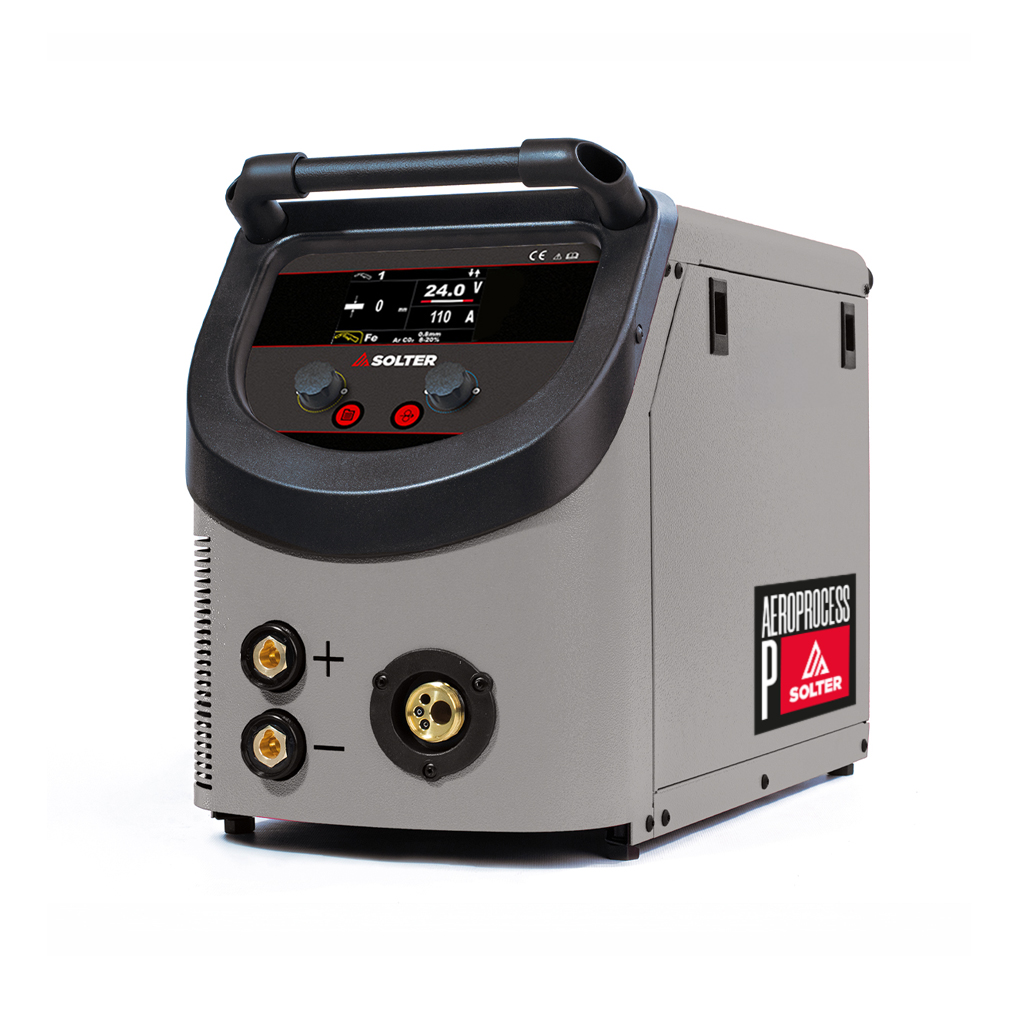

AEROPROCESS P 200
The AEROPROCESS P 200 welding equipment from Solter is designed for MIG/MAG, TIG, and MMA processes with professional performance. Thanks to its inverter technology and Aeroprocess LCD control panel, it ensures a stable and precise arc, ideal for demanding welds on steel, stainless steel, and other materials. It allows working with gas and gasless wires of different diameters and is compatible with D200 and D300 spools. Its forced ventilation and IP23 protection guarantee reliability in industrial environments.
Main Features:
✓ Triple welding process: Compatible with MIG/MAG, TIG, and MMA, adapting to multiple types of jobs and materials.
✓ Wide adjustment range: From 20 to 200A, with a maximum output of 200A, ideal for jobs requiring both precision and power.
✓ Use of gas and gasless wires: Supports wires from 0.6 to 1.2 mm, providing versatility depending on the material and type of shielding.
✓ Compatibility with D200 and D300 spools: Capable of working with spools up to 15 kg, ideal for extended jobs without interruptions.
✓ Inverter technology + forced ventilation: Provides arc stability and energy efficiency, even during extended work cycles.
✓ TIG and MMA electrodes: Accepts electrodes from 1.6 to 4.0 mm, covering needs from light-duty tasks to industrial demands.
✓ Aeroprocess LCD panel: Intuitive and precise, it enables synergic process control while displaying all parameters in real time.
✓ Robust and portable design: With a weight of 19 kg and compact dimensions (600x272x380 mm), it is easy to transport without compromising durability.
✓ Protection and safety: IP23 rating and 74V open circuit voltage for greater reliability in demanding industrial environments.
✓ Ground clamp included: Ready to connect and start working without the need for additional accessories.
| General | |
|---|---|
| Intensity at 60%(100%) a 40ºC | 170A (130A) |
| Intensity MAX. | 200A |
| Regulation | 20 - 200A |
| Duty Cycle at 40ºC | 45% |
| Tech | |
| Usable wire coil | D200 (5 kg), D300 (15 kg) |
| Usable electrodes MMA | 1,6mm - 4,0mm |
| Usable electrodes TIG | 1,6mm - 3,2mm |
| Hilo utilizable gas | 0,6 - 1,0mm |
| Hilo utilizable no gas | 0,8 - 1,2mm |
| Wire feeder rolls | 2R |
| Electric | |
| Supply Voltage | 230V-1ph |
| Fuse | 25 A |
| OCV | 74V |
| Structural | |
| Dimensions | 600x272x380mm |
| Protection index | IP23 |
| Regulation board | Aeroprocess LCD |
| Weight | 19 kg |
| Ventilation | FORCED |
| Configuraciones | |
| Version | BASIC or PULSE |
| Antorcha MIG/MAG | 56200 - SX-15 4m + 0.8-1.0mm Steel or 56031 - SX-15 3m + 0.8-1.0mm Steel or SX-25 4m + Sirga Acero 1.0-1.2mm or SX-25 3m + Sirga Grafito 1.0-1.2mm or Sin antorcha |
| Potencia (Amp) | 200 |
