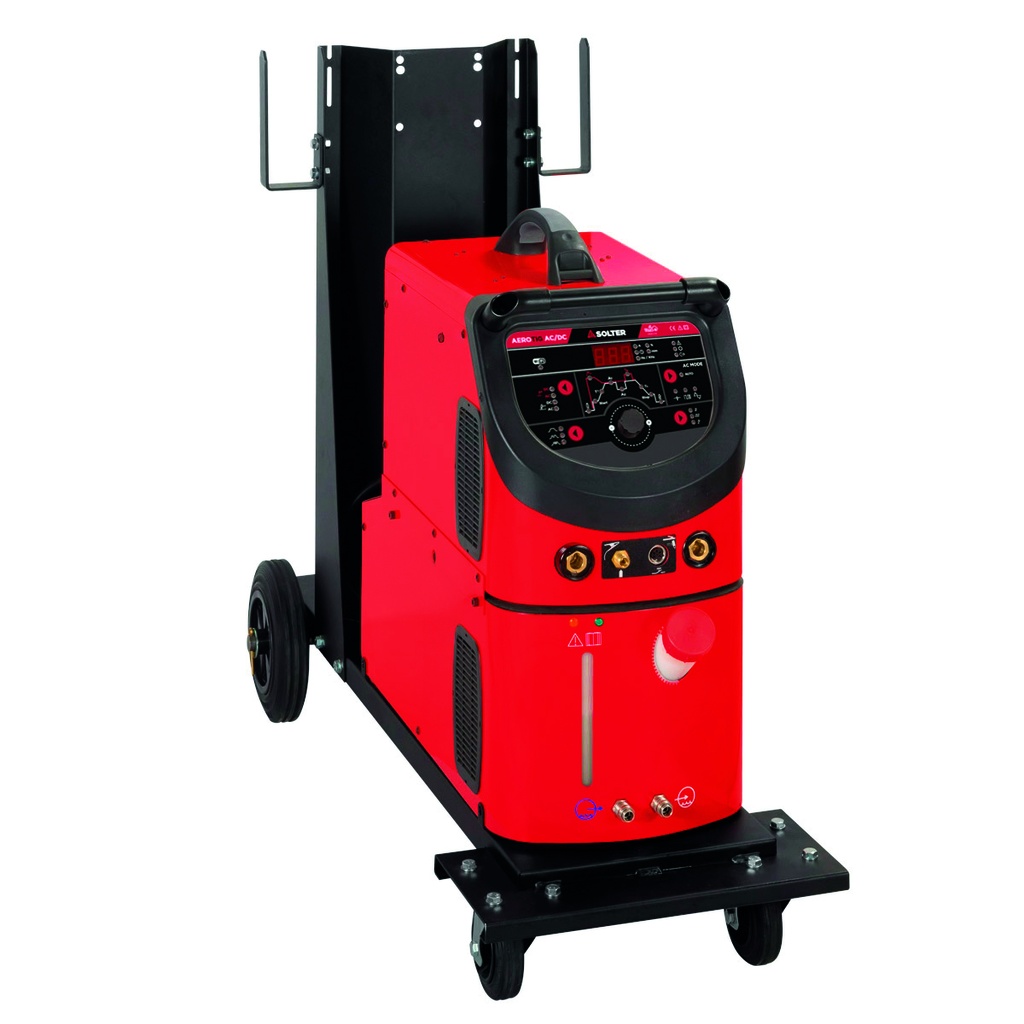

AEROTIG AC/DC W Wi - 200A 1Ph
The AEROTIG AC/DC series is the professional TIG solution par excellence. Thanks to its powerful AC/DC INVERTER, incredible results are achieved both in carbon and stainless steels and, especially in a multitude of ALUMINUM alloys.
· Soldadura\xa0TIG AC/DC PULSADA\xa0de todo tipo de aceros al carbono, inoxidables y\xa0ALUMINIO.
\n
· Wi regulation panel, with remote regulation of the welding curve and data management through the WaaS platform.
\n
· Equipo monofásico de 200A al 50%.
Main features:
· Arc stability and control, regardless of the electrode-material distance thanks to regulation by Arc-Sense.
· Auto Mode synergistic control of the AC parameters (balance-frequency-offset) facilitating their optimal and easy regulation.
· Double automatic ventilation, acting only when the equipment requires it.
· Stand-by position, when the equipment is not in operation.
· Equipped with Anti-stick, Arc-Force, Hot-Start for MMA welding and Lift-Arc/HF functions for TIG welding.
| General | |
|---|---|
| Intensity at 60%(100%) a 40ºC | 170A (120A) |
| Intensity MAX. | 200A |
| Regulations | EN60974-1, EN60974-10 |
| Regulation | 10 - 200A (10,4 - 18,0V) |
| Duty Cycle at 40ºC | 50% |
| Tech | |
| Usable electrodes MMA | 1,6 - 4,0mm |
| Usable electrodes TIG | 1,6 - 4.0mm |
| Frecuencia de pulsado TIG | 500Hz |
| Electric | |
| Supply Voltage | 1ph- 230V |
| Fuse | 25A |
| Absorved power max. | 9,5KVA |
| OCV | 65V |
| Structural | |
| Dimensions | 375x1030x1020mm |
| Protection index | IP23 |
| Regulation board | AEROTIG AC/DC Wi |
| Weight | 49 kg |
| Ventilation | Double AUTO |
| Configuraciones | |
| Antorchas TIG | SR-18W D35/50 4M or SR-18W D35/50 8M or Sin antorcha TIG |
| Cuello Antorcha | Antorcha Cuello Rígido or Antorcha Cuello Flexible SR18W |
| Conjunto Masa | 06165 3m Cu25mm 35-50 200A or Sin pinza |
| Potencia (Amp) | 200 |
| Version | PULSE |
| Uncategorized | |
| Control Antorcha | Doble pulsador or Pulsador + Remoto |
