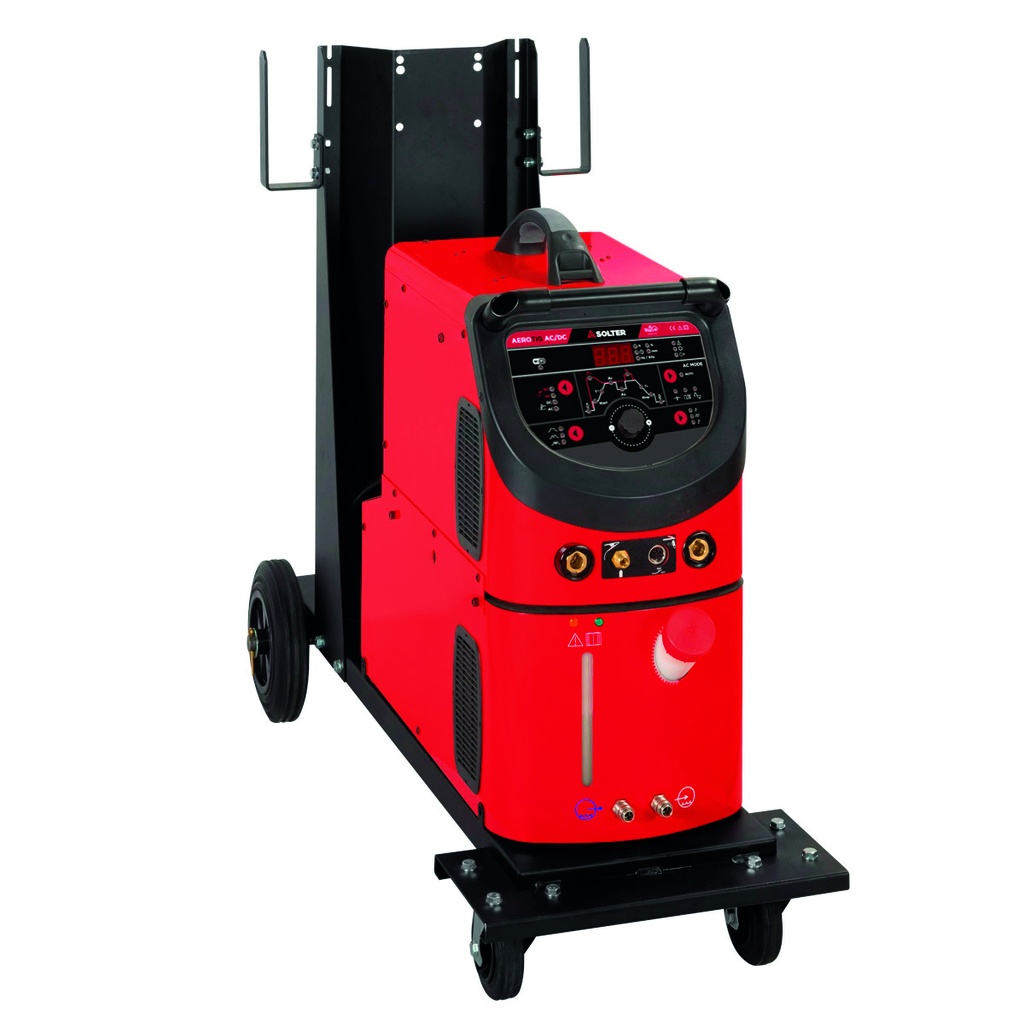

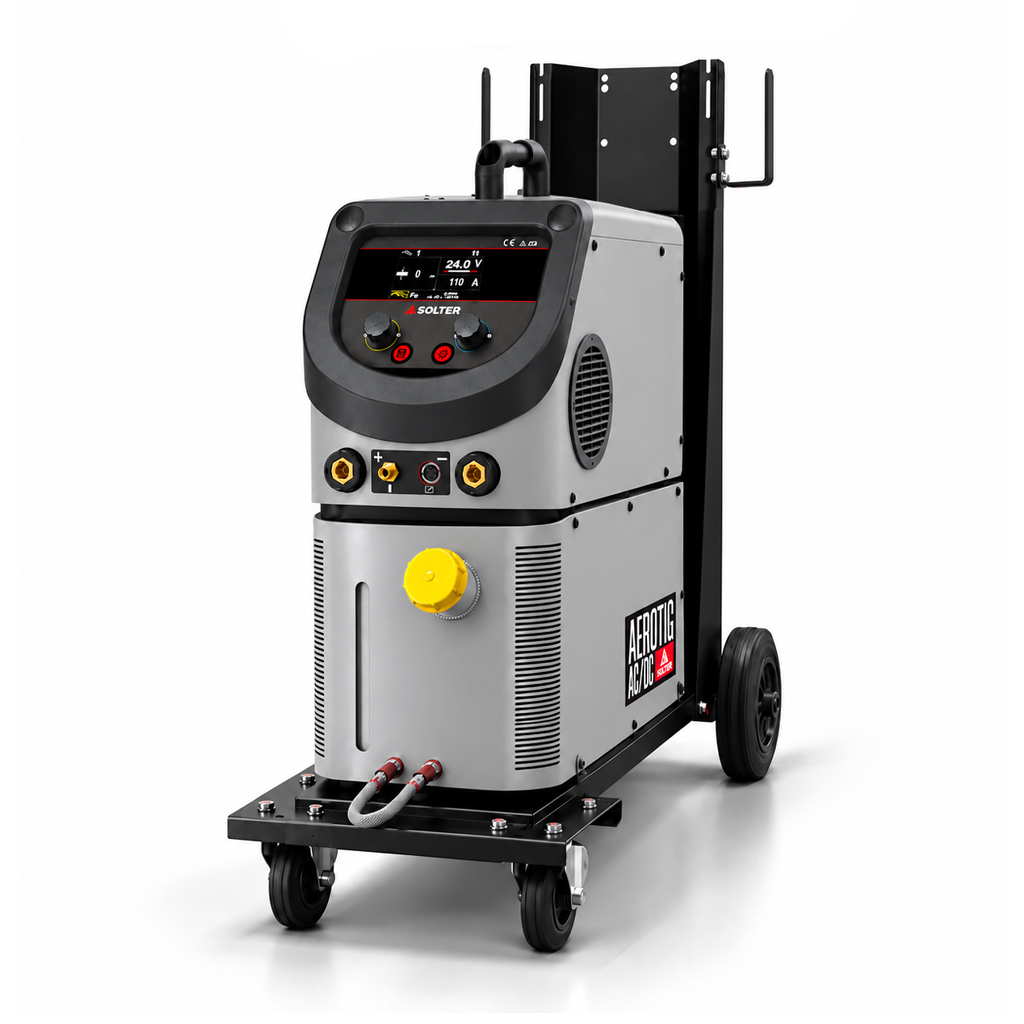

AEROTIG AC/DC W Wi - 200A 1Ph
The AeroTIG 200A AC/DC Wi with AeroCOOL 20 cooler from Solter is the ideal professional TIG solution for welding carbon steel, stainless steel, and aluminum alloys. Equipped with an AC/DC inverter and pulsed TIG modes, it delivers a stable arc thanks to Arc-Sense technology and advanced functions such as Hot-Start, Arc-Force, Anti-Stick, and Lift-Arc/HF. Its smart WiFi panel enables remote control and data management through WaaS Welding, while the AeroCOOL 20 ensures efficient water cooling, extending torch durability. A versatile, precise system designed for demanding environments.
Main Features:
✓ TIG AC/DC and MMA processes, allowing work with steels, stainless steels, titanium, and aluminum of different thicknesses.
✓ High-performance AC/DC inverter, delivering a stable, controlled arc with low energy consumption for intensive use.
✓ Arc-Sense and Auto Mode AC, enabling automatic adjustment of balance, frequency, and offset in TIG AC.
✓ AeroCOOL 20 cooling, with a 0.9 l/min flow rate and an independent system that extends torch life.
✓ Advanced MMA and TIG functions, including Hot-Start, Arc-Force, Anti-Stick, and Lift-Arc or HF ignition.
✓ Dual automatic ventilation, active only when needed, together with standby mode for energy savings.
✓ Professional duty cycle, delivering 200A at 50% in TIG and 155A at 60% in MMA without overheating.
✓ Integrated WiFi connectivity, with access to WaaS Welding for remote management of parameters, data, and maintenance.
✓ Compact and portable design, weighing 18 kg with reduced dimensions for easy transport and field use.
| General | |
|---|---|
| Intensity at 60%(100%) a 40ºC | 170A (120A) |
| Intensity MAX. | 200A |
| Regulations | EN60974-1, EN60974-10 |
| Regulation range | 10 - 200A (10,4 - 18,0V) |
| Duty Cycle at 40ºC | 50% |
| Tech | |
| Usable electrodes MMA | 1,6 - 4,0mm |
| Usable electrodes TIG | 1,6 - 4.0mm |
| TIG pulsing frequency | 500Hz |
| Electric | |
| Supply Voltage | 1ph- 230V |
| Fuse | 25A |
| Maximum absorbed power | 9,5KVA |
| Open-circuit voltage | 65V |
| Structural | |
| Dimensions | 375x1030x1020mm |
| Protection index | IP23 |
| Regulation board | AEROTIG AC/DC Wi |
| Weight | 49 kg |
| Ventilation | Double AUTO |
| Configuraciones | |
| Antorchas TIG | SR-18W D35/50 4M or SR-18W D35/50 8M or Sin antorcha TIG |
| Torch control | Doble pulsador or Pulsador + Remoto |
| Torch neck | Antorcha Cuello Rígido or Antorcha Cuello Flexible SR18W |
| Conjunto Masa | 06165 3m Cu25mm 35-50 200A or Sin pinza |
| Power (Amp) | 200 |
| Version | PULSE |
