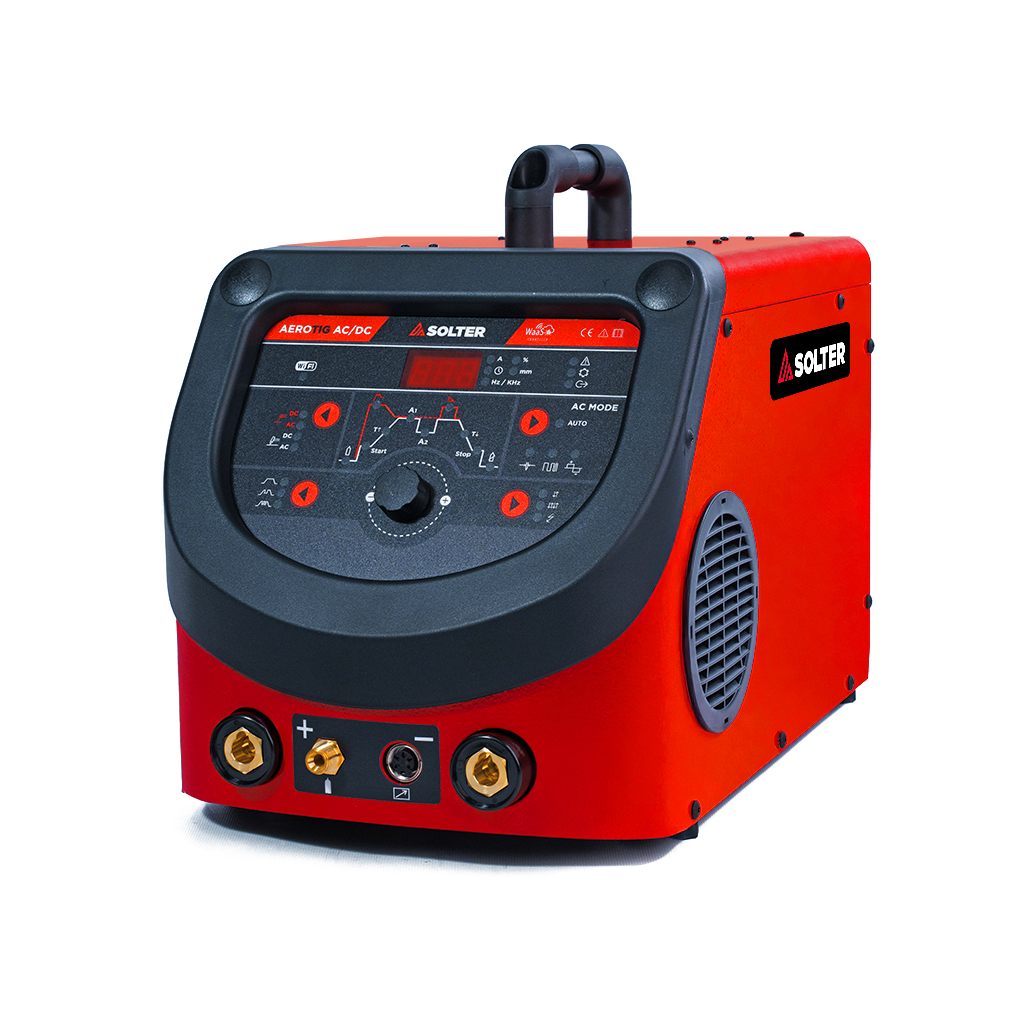

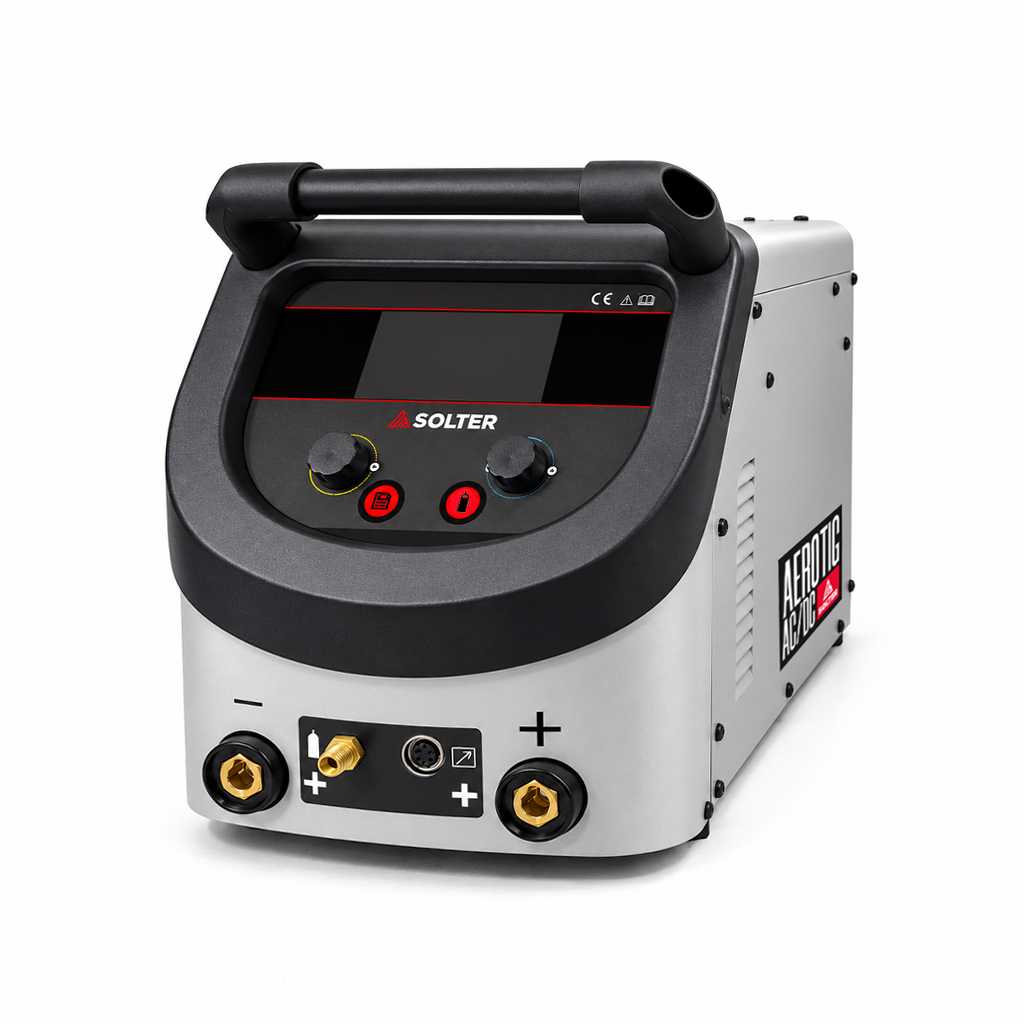

AEROTIG AC/DC Wi - 200A 1Ph
The AEROTIG AC/DC Wi - 200A 1Ph from Solter is a TIG and MMA welder with high performance designed for professionals who demand precision, control, and advanced connectivity. Engineered to work with stainless steel, aluminum, titanium, and complex alloys, it integrates inverter technology, high-frequency (HF) ignition, WiFi control, and an intuitive interface. Thanks to its 2T/4T modes, low- and high-frequency pulsing, and compatibility with a remote foot pedal, it perfectly adapts to precision work and continuous production. Ideal for technical environments and workshops that value quality and performance in every weld.
Main Features:
✓ TIG AC/DC + MMA Welder: Ideal for stainless steel, aluminum, and special alloys.
✓ Latest-generation inverter technology: Higher energy efficiency and arc stability.
✓ HF ignition and 2T/4T modes: Clean start and full process control.
✓ Configurable pulsed arc: Enables precise joints on materials of different thicknesses.
✓ Intuitive digital panel: Quick parameter adjustment without complex menus.
✓ WiFi WaaS Welding connectivity: Remote control, WPS management, and online technical support.
✓ Compact design (18 kg) with IP23S protection: Robust, portable, and suitable for outdoor use.
✓ Professional duty cycle: 60% at 170A in TIG, with excellent continuous performance.
✓ Compatible with TIG foot pedal and water-cooled torches: Ergonomics and safety for demanding jobs.
| General | |
|---|---|
| Intensity at 60%(100%) a 40ºC | 170A (120A) |
| Intensity MAX. | 200A |
| Regulations | EN60974-1, EN60974-10 |
| Regulation range | 10 - 200A (10,4 - 18,0V) |
| Duty Cycle at 40ºC | 50% |
| Tech | |
| Usable electrodes MMA | 1,6 - 4,0mm |
| Usable electrodes TIG | 1,6 - 4.0mm |
| TIG pulsing frequency | 500Hz |
| Electric | |
| Supply Voltage | 1ph- 230V |
| Fuse | 25A |
| Maximum absorbed power | 9,5KVA |
| Open-circuit voltage | 65V |
| Structural | |
| Dimensions | 465x280x360mm |
| Protection index | IP23 |
| Regulation board | AEROTIG AC/DC Wi |
| Weight | 14 kg |
| Ventilation | Double AUTO |
| Configuraciones | |
| Antorchas TIG | Antorcha 4M TIG SR-26 D35/50 or SR-26 D35/50 8M or Sin antorcha TIG |
| Torch control | Doble pulsador or Pulsador + Remoto |
| Torch neck | Antorcha Cuello Rígido or Antorcha Cuello Flexible SR26 |
| Conjunto Masa | 06165 3m Cu25mm 35-50 200A or Sin pinza |
