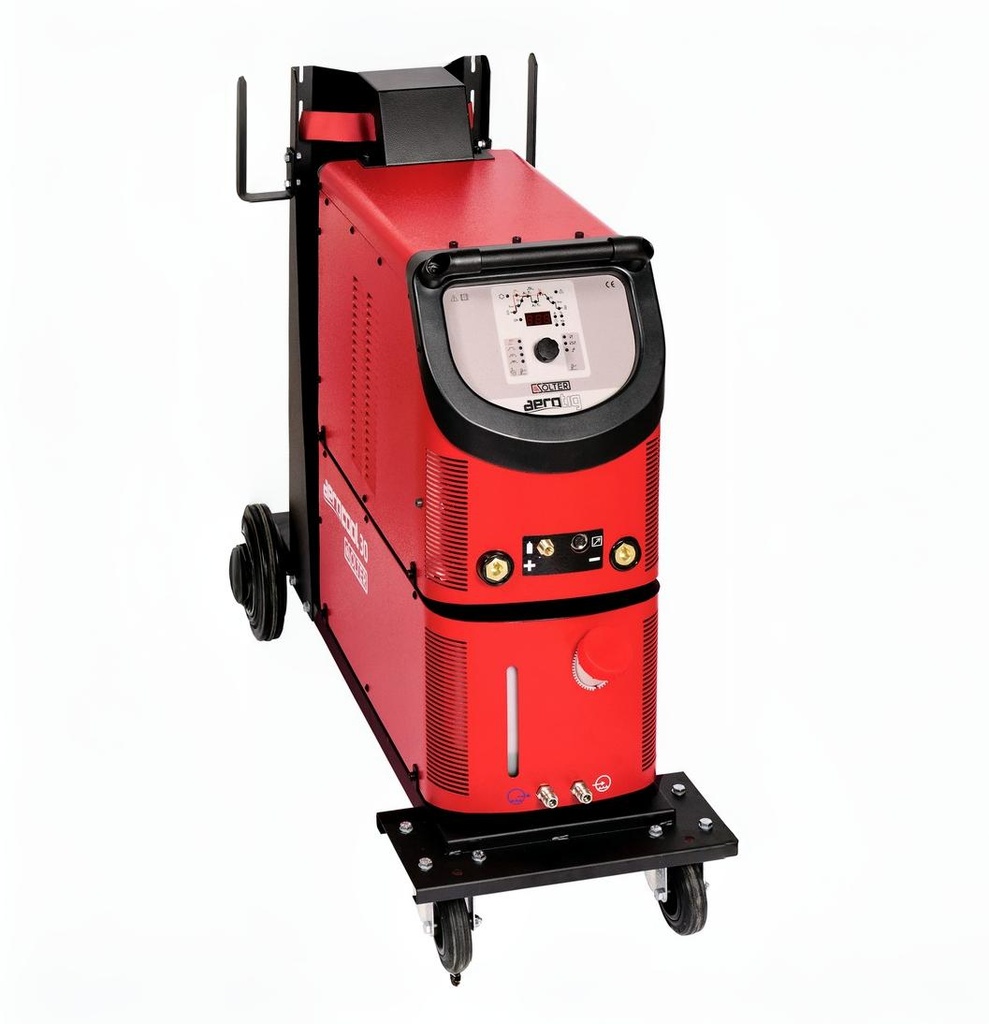

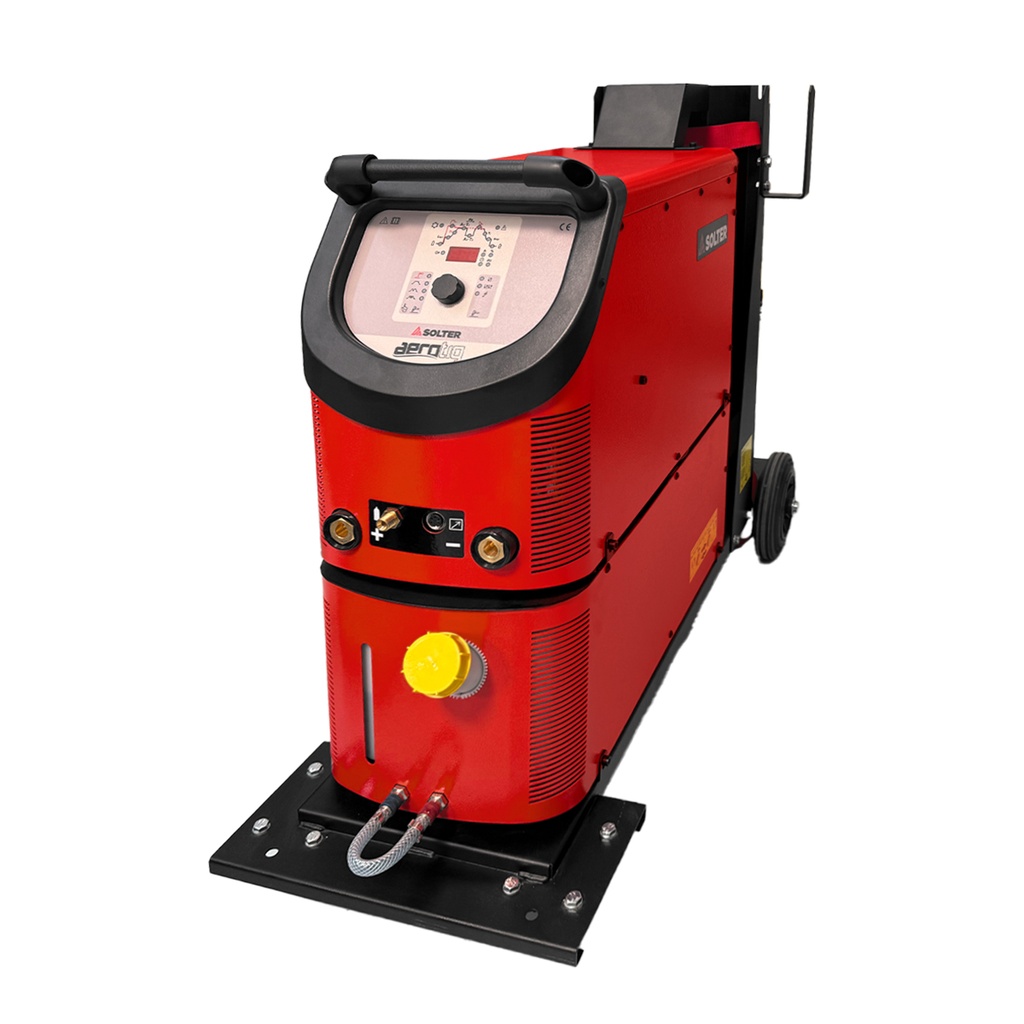

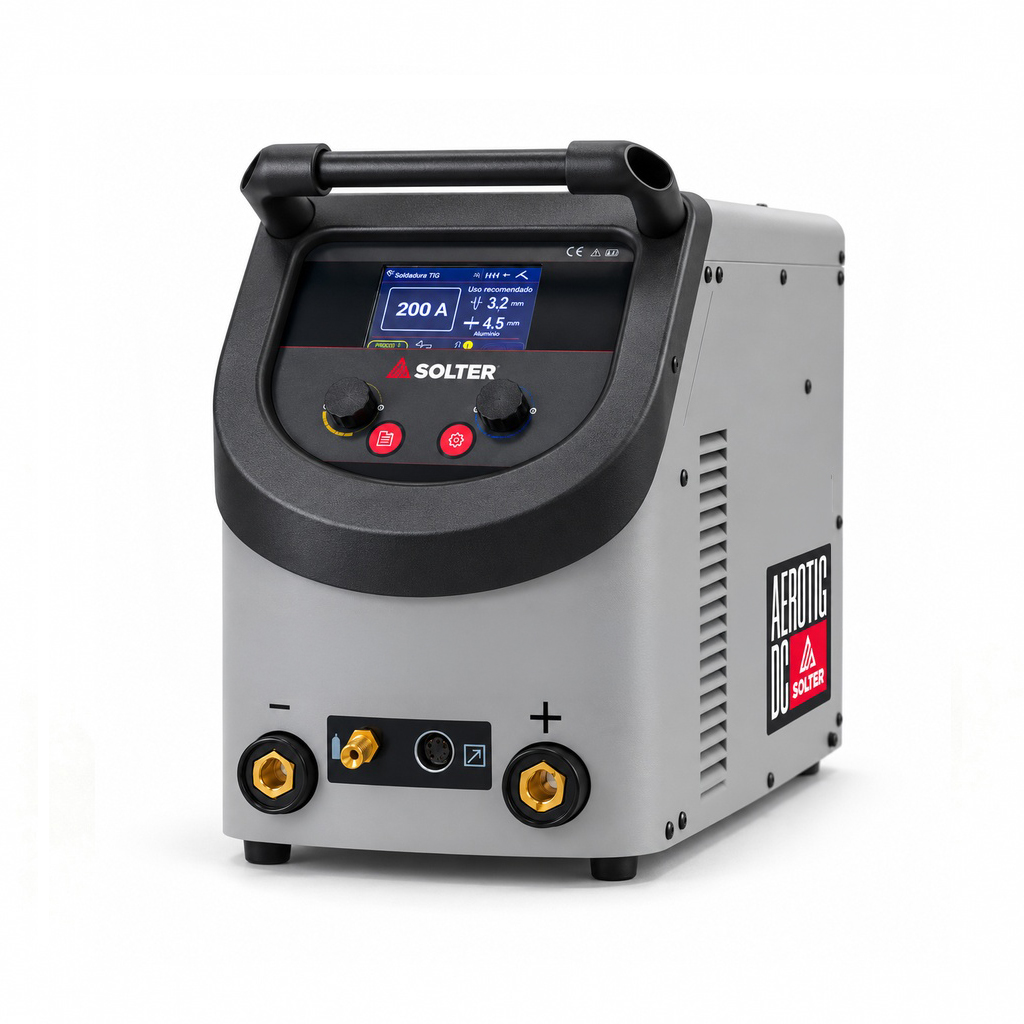

AEROTIG DC PRO
The AEROTIG Pro 320A DC and 400A DC welders from Solter are designed to handle demanding welding tasks, both in TIG and MMA. Equipped with high-performance inverter technology, these units deliver an extremely stable arc and precise digital control. They feature professional functions such as Hot-Start, Arc-Force, Anti-Stick, and Pulsed TIG, along with efficient tunnel-type ventilation and an intelligent STAND-BY mode. With their 320A and 400A power output, they ensure continuous performance even under the most extreme conditions, making them ideal for professionals seeking reliability, efficiency, and adaptability in every project.
Main Features:
✓ Power source designed for extreme conditions, suitable for both MMA and TIG processes, delivering continuous professional performance in intensive and industrial applications.
✓ Available in 320A and 400A versions, ideal for extended welding without interruptions, even during heavy-duty work shifts.
✓ “Low Voltage Inverter” technology, delivering 30% higher energy efficiency compared to traditional power sources, reducing consumption and extending the equipment’s lifespan.
✓ “Digital ArcSense” system with real-time arc analysis 75,000 times per second, ensuring unmatched precision and automatic adaptation to process variations.
✓ Fully digital control of the welding curve, enabling advanced customization of all parameters: current, pulsing, ramps, pre/post gas, among others.
✓ Dual tunnel-type ventilation, directing airflow to prevent dust ingress and operating only when needed, protecting electronic components.
✓ Intelligent STAND-BY mode, which partially deactivates the system when not in use, optimizing energy consumption and reducing wear.
✓ Advanced functions included: Anti-Stick, Hot-Start, Arc-Force for MMA; Lift-Arc, Contact TIG, and TIG HF for TIG processes.
✓ Configurable TIG welding modes: 2T, 4T, Pulsed TIG, dual current level, upslope/downslope, to suit every type of application.
✓ Control panel with digital rotary knob, easy to operate even while wearing gloves, allowing quick and precise parameter adjustment.
| General | |
|---|---|
| Duty Cycle at 40ºC | 45% |
| Regulation | 10 - 320/400A (10,4 - 20,8V) |
| Intensity MAX. | 320A // 400A |
| Intensity at 60%(100%) a 40ºC | 320A (280A) // 400A (320A) |
| Regulations | EN60974-1, EN60974-10 |
| Tech | |
| Usable electrodes TIG | 1.6mm-4.0mm |
| Usable electrodes MMA | 1,6 - 5.0mm |
| Frecuencia de pulsado TIG | 500Hz |
| Electric | |
| Voltage range | 360-440V |
| Absorved power max. | 15,3Kva |
| Fuse | 16A |
| Supply Voltage | 3ph-400V |
| Structural | |
| Ventilation | DOUBLE auto TUNNEL |
| Weight | 26/70 kg |
| Regulation board | AEROTIG |
| Protection index | IP23 |
| Dimensions | 280x360x465/1020mm |
| Configuraciones | |
| Potencia (Amp) | 320 or 400 |
| Refrigerador | Sin Refrigerador or 56172 - AEROCOOL 30 + Carro UTS 200 |
| Carro transporte | Sin carro or 10252 - Carro UTS 200 + Soporte carro Aerotig |
| Antorchas TIG | Antorcha 4M TIG SR-26 D35/50 or SR-26 D35/50 8M or SR-18W D35/50 4M or SR-18W D35/50 8M or Sin antorcha TIG |
| Cuello Antorcha | Antorcha Cuello Rígido or Antorcha Cuello Flexible SR26 or Antorcha Cuello Flexible SR18W |
| Control Antorcha | Doble pulsador or Pulsador + Remoto |
| Conjunto Masa | 06114 - 3m Cu35mm 35-50 400A or Sin pinza |
| Version | PULSE |
