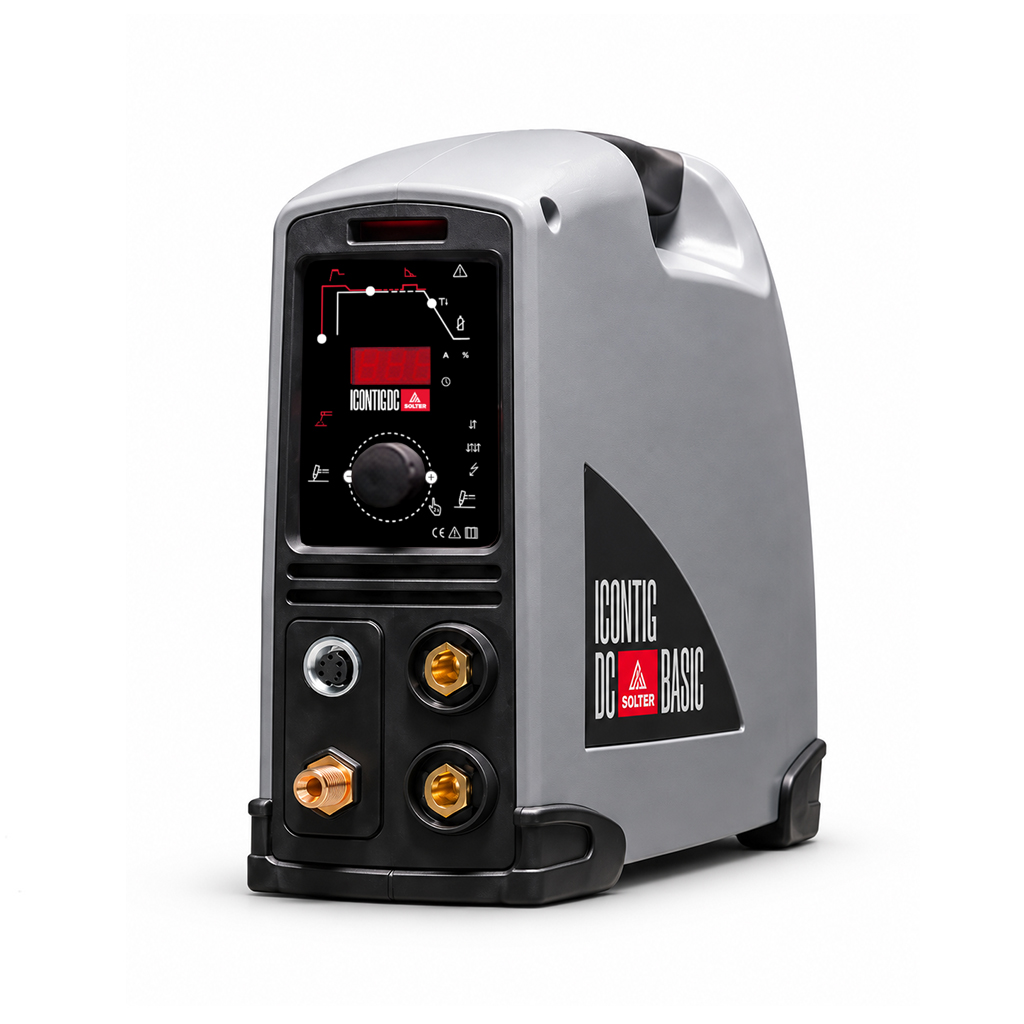

ICONTIG DC (180@45%)

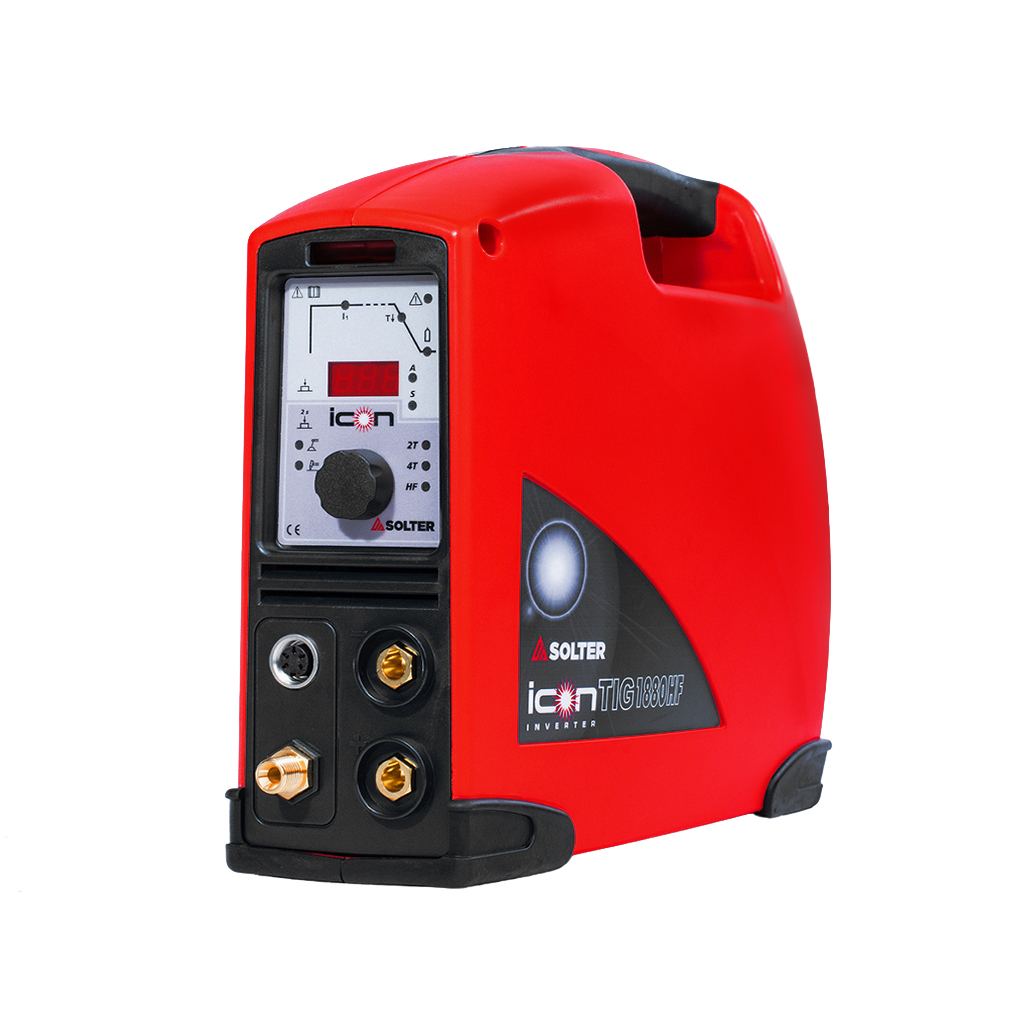

The ICONTIG 1880HF and ICONTIG 1990HF PULSE combine inverter technology with a compact and lightweight design (4.9 kg) for TIG and MMA welding at 230 V ±15%. The 1880HF offers simple control with I1, downslope, and post-gas, ideal for agile work with HF or Lift-Arc. The 1990HF PULSE adds pulsed TIG and high-frequency pulsed TIG (10–500 Hz) with adjustment of I1/I2 and times T1/T2, achieving greater bath control and fine finishes. Both feature IP23C, 81% efficiency, and duty cycle 60/45% (20/40 °C), plus smart ventilation and last-parameter memory. A high-resistance DDR casing and single-control operation deliver a professional yet user-friendly experience.
Main Features:
✓ Current range: TIG 10–180 A and MMA 10–160 A on the 1880HF; TIG 10–180 A and MMA 10–160 A on the 1990HF PULSE.
✓ TIG 2T/4T modes with HF or Lift-Arc; the 1990HF PULSE adds pulsed TIG and high-frequency pulsed (10–500 Hz) for greater thermal precision.
✓ Advanced parameters on 1990HF PULSE: pre-gas, Istart, T↑, I1, I2, T↓, Istop, post-gas; the 1880HF prioritizes simplicity with I1, T↓, and post-gas.
✓ Single-control operation: quick selection and adjustment without complex sequences; memory per work mode to instantly recall settings.
✓ Reinforced DDR casing: double injection with non-slip grip and side protections for ergonomics and durability.
✓ Electronic protections: monitoring of temperature and mains voltage with automatic shutdown after inactivity.
✓ Smart ventilation: activates only when needed, reducing dust intake and maintenance.
✓ 81% efficiency, IP23C, 320×135×285 mm and 4.9 kg, designed for outdoor work and demanding environments.
✓ Generator compatible (recommended ≥ 8 kVA) for mobile operations without losing arc stability.
✓ Duty cycle: 60%/45% (20 °C/40 °C) in TIG and MMA for continuous work with high reliability.
| General | |
|---|---|
| Intensity at 60%(100%) a 40ºC | 140A (110A) |
| Intensity MAX. | 180A |
| Regulation range | 10 - 180A |
| Duty Cycle at 40ºC | 45% |
| Tech | |
| Usable electrodes MMA | 1,6mm - 4,0mm |
| Usable electrodes TIG | 1,6mm - 2,4mm |
| Electric | |
| Supply Voltage | 230V-1ph |
| Fuse | 16A |
| Maximum absorbed power | 6,5KVA |
| Open-circuit voltage | 80V |
| Structural | |
| Dimensions | 320x135x285 mm |
| Protection index | IP23C |
| Weight | 4,9 kg |
| Ventilation | Double AUTO |
| Configuraciones | |
| Version | BASIC or PULSE |
| Antorchas TIG | 06145 - SR-17 4M D10/25 or 06161 - SR-17 8M D10/25 or Sin antorcha TIG |
| Torch neck | Antorcha Cuello Rígido or Antorcha Cuello Flexible |
| Torch control | Doble pulsador or Pulsador + Remoto |
| Power (Amp) | 180 |
