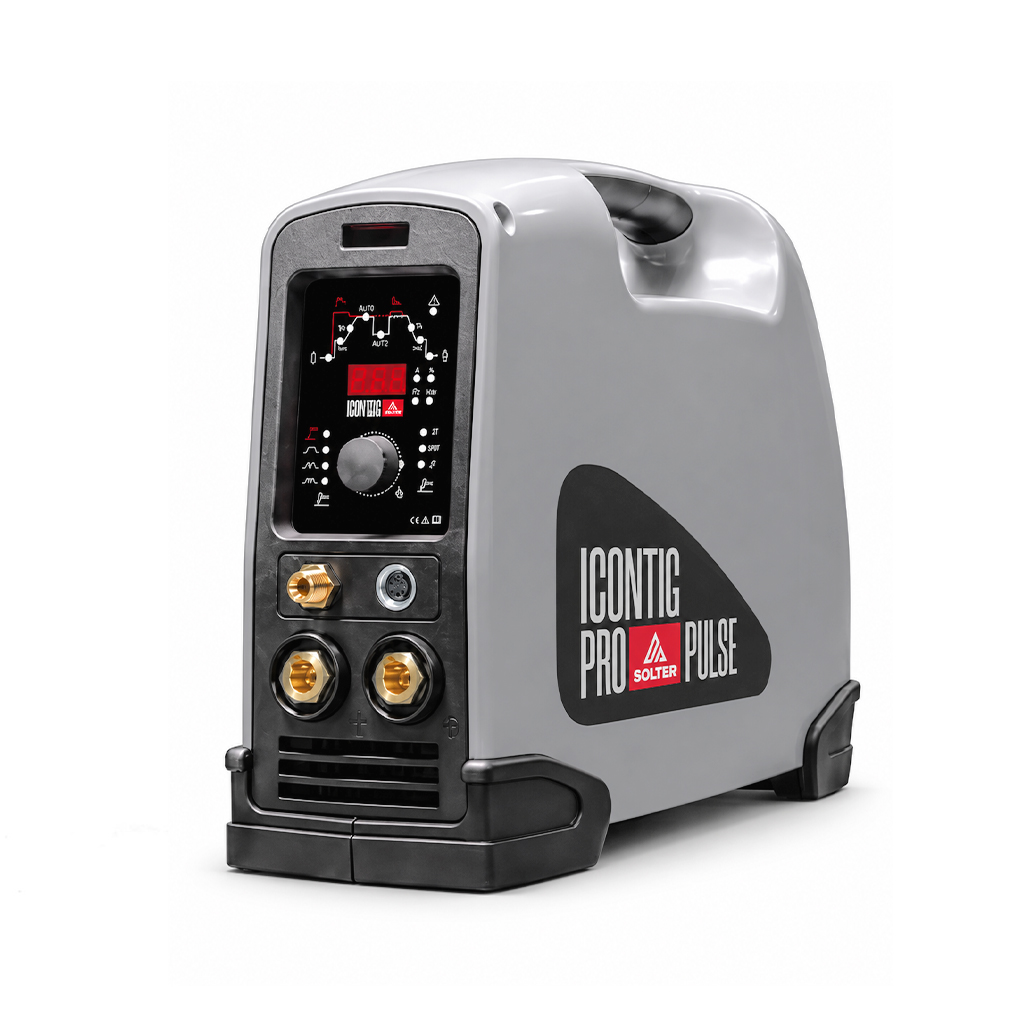

ICONTIG DC PRO (220@50%)
The ICONTIG DC PRO from Solter is a high-performance professional TIG and MMA welder, ideal for demanding applications with stainless steels, alloys, and other metals. It features next-generation inverter technology and advanced modes such as Pulsed TIG and High-Frequency Pulsed TIG, providing precise arc control. Its intuitive digital panel, automatic functions, and smart ventilation system ensure efficiency and safety. Robust and compact thanks to its DDR-reinforced design, it is built for intensive use both in the workshop and in the field.
Main Features:
✓ Advanced inverter technology, ideal for TIG and MMA with pulsed and high-frequency arc, maximizing control of the weld pool.
✓ Adjustable power from 10 to 220A in TIG, suitable for both delicate and demanding jobs.
✓ Adjustable pulsing frequency up to 500Hz, enabling high-precision welding with reduced heat input.
✓ Digital control panel with single knob, simplifies parameter setup without the need to memorize sequences.
✓ Internal memory for 4 working modes, automatically recalls the last configuration used.
✓ Smart ventilation system, reduces internal dust and extends component lifespan.
✓ Integrated protections against overheating and voltage fluctuations, with self-diagnosis and preventive shutdown.
✓ DDR design (Dual Density Reinforcement) with dual injection: greater strength, stability, and ergonomics.
✓ Compatible with 8 kVA generators, ideal for environments without a stable power grid.
✓ TACK mode and optional remote control, providing extra precision in spot joints and current adjustment directly from the torch.
| General | |
|---|---|
| Intensity at 60%(100%) a 40ºC | 180A (140A) |
| Intensity MAX. | 220A |
| Regulations | EN 60974-1, EN 60974-10 |
| Regulation range | 10-220A |
| Duty Cycle at 40ºC | 50% |
| Tech | |
| Usable electrodes MMA | 1,6mm - 4,0mm |
| Usable electrodes TIG | 1,6 - 3,2mm |
| TIG pulsing frequency | 500Hz |
| Electric | |
| Supply Voltage | 230V-1ph |
| Fuse | 25A |
| Maximum absorbed power | 8,5KVA |
| Operating range | 120V - 310V |
| Open-circuit voltage | 68V |
| Structural | |
| Dimensions | 430x175x325 mm |
| Protection index | IP23C |
| Regulation board | iCONTIG “pulse” |
| Weight | 7,2 Kg |
| Ventilation | Doble / Double AUTO |
| Configuraciones | |
| TIG Torches | 4m TIG Torch SR-26 D35/50 or SR-26 D35/50 8M or Without TIG torch |
| Torch neck | Rigid Neck Torch or Flexible Neck Torch |
| Torch control | Double Push Button or Push Button + Remote |
| Power (Amp) | 220 |
| Version | PULSE |
