Main features:

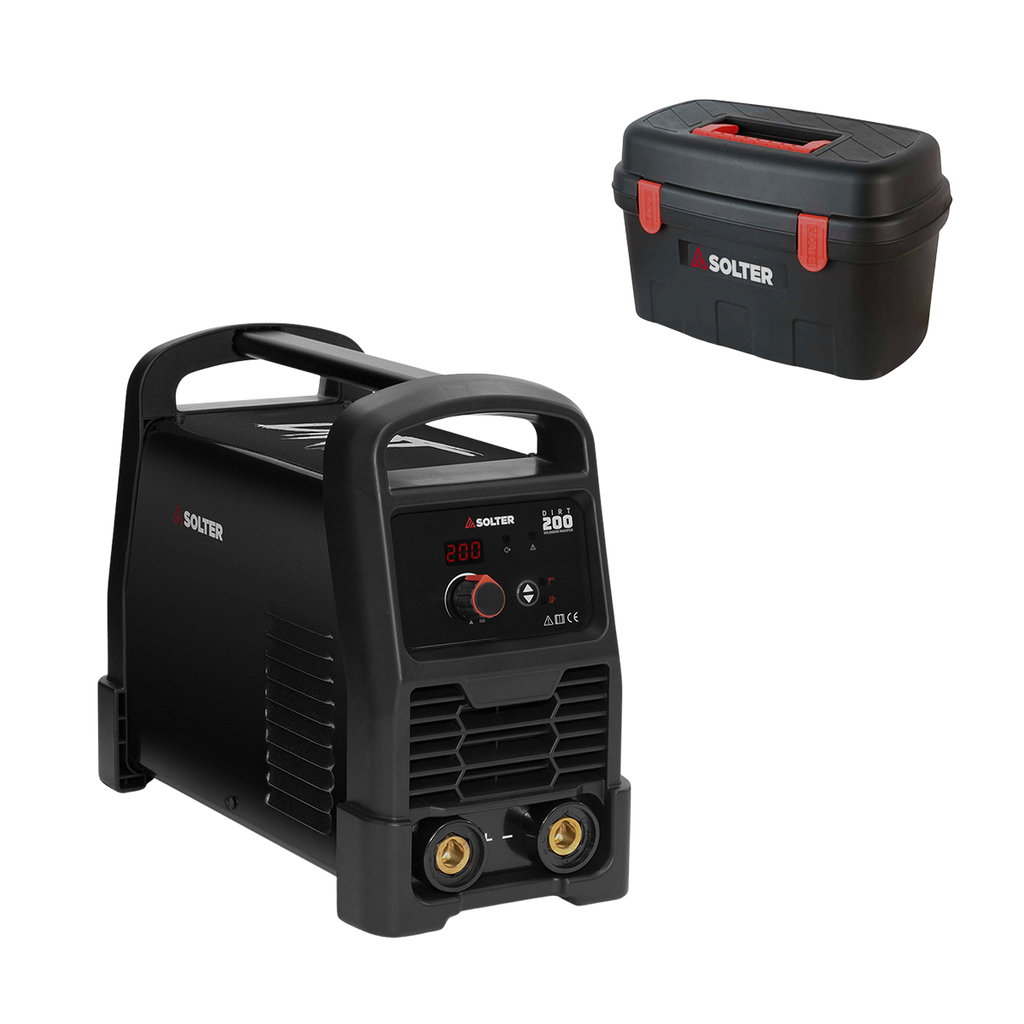

The DIRT models are Inverter equipment for welding covered electrodes and TIG. Thanks to the Arc-Sense technology they can weld any type of electrode, including aluminum.
· Nueva tecnología Arc-Sense, permitiendo soldar cualquier tipo de electrodo.
· Facilidad de uso gracias a la tecnología Inverter suministrando corriente continua DC.
· Mínimo consumo por su alta eficiencia energética.
· Conectable a generadores con un amplio rango de voltajes de utilización.
· Equipado con los dispositivos Arc-Force y Hot-Start.
· Posibilidad soldadura TIG.
· Regulación DIGITAL.
| General | |
|---|---|
| Duty Cycle at 40ºC | 40% |
| Regulation range | 20 - 200A |
| Intensity MAX. | 200A |
| Intensity at 60%(100%) a 40ºC | 160A (135A) |
| Regulations | EN-960974-1, EN-60974-10 |
| Tech | |
| Usable electrodes TIG | 1,6mm - 2,4mm |
| Usable electrodes MMA | 1,6mm - 4,0mm |
| Electric | |
| Open-circuit voltage | 72V |
| Operating range | 220 - 240V |
| Maximum absorbed power | 9kva |
| Fuse | 16A |
| Supply Voltage | 230V - 1Ph |
| Structural | |
| Ventilation | FORCED |
| Weight | 6kg |
| Regulation board | SOLTER DIGITAL |
| Protection index | IP21S |
| Dimensions | 370x166x280 |
