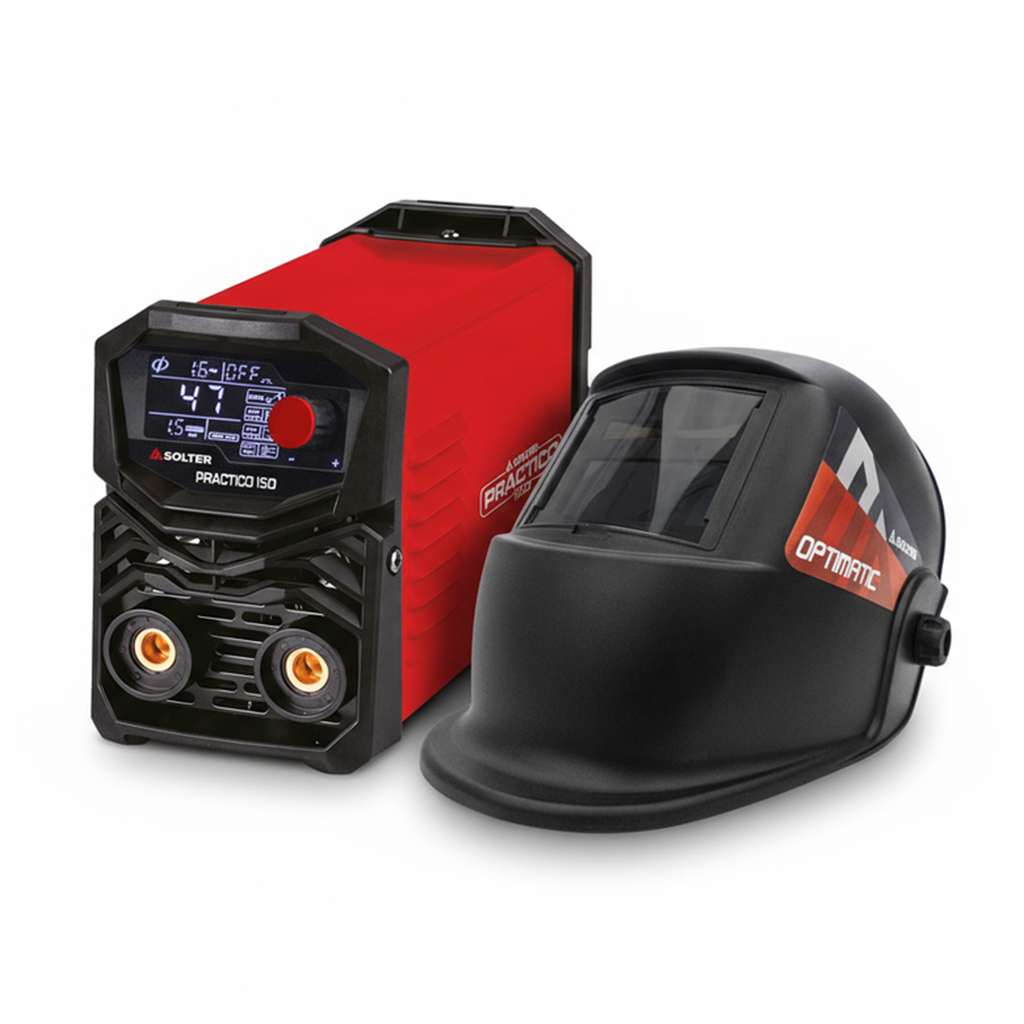

KIT PRACTICO 150 LD + OPTIMATIC 45
The PRACTICO 150 LD + OPTIMATIC 45 kit is a highly practical solution for anyone looking to weld with comfort, protection, and easy handling from the very start. The welder incorporates inverter technology, operates in MMA and LIFT TIG, and offers an output range of 10 to 150 A, all in a compact format weighing just 2.2 kg, making it easy to move around. The OPTIMATIC 45 helmet completes the set with adjustable shading DIN 4/9-13, a viewing area of 89 x 39 mm, adjustable sensitivity, and power supplied by solar cells and a CR2032 battery. It is a well-balanced kit for maintenance, repairs, and everyday welding tasks, providing solid visual protection.
Main Features:
✓ The PRACTICO 150 LD operates in MMA and LIFT TIG, allowing you to move easily between repairs, light fabrication, and maintenance tasks without relying on bulky or complex equipment.
✓ Its 10 to 150 A output range gives you the flexibility to adapt to different material thicknesses and job types, with intuitive control that helps keep the arc stable.
✓ With a duty cycle of 40% at 150 A, 60% at 100 A, and 100% at 80 A, it delivers reliable performance for routine maintenance and light fabrication tasks within its category.
✓ The compact design of 255 x 110 x 145 mm and its weight of 2.2 kg make it easy to carry, especially when moving between different workstations or handling quick interventions.
✓ It operates at 220 ±10 %, features IP21S protection, Class H insulation, and FAN & AIR ventilation, providing a solid technical foundation for reliable performance and effective cooling during use.
✓ For MMA welding, it supports Ø2.5 and Ø3.2 mm electrodes, a highly practical combination for metalwork, repairs, and small structures, with a simple front panel for direct and precise current adjustment.
✓ The OPTIMATIC 45 helmet features a 110 x 90 x 10 mm filter, a viewing area of 89 x 39 mm, and optical class 1/1/1/2, allowing you to follow the welding area with excellent clarity.
✓ In addition, it offers adjustable shading DIN 4/9-13, adjustable sensitivity and delay, and is powered by solar cells and a CR2032 battery, allowing you to adapt visual protection more comfortably to different working paces.
| General | |
|---|---|
| Intensity at 60%(100%) a 40ºC | 160A (135A) |
| Intensity MAX. | 200A |
| Regulations | EN60974-1, EN60974-10 |
| Regulation range | 20 - 200A |
| Duty Cycle at 40ºC | 40% |
| Tech | |
| Usable electrodes MMA | 1,6mm - 4,0mm |
| Usable electrodes TIG | 1,6mm - 2,4mm |
| Filter dimensions | 110x90 mm |
| Viewing area | 89 x 39 mm |
| Optics quality | CE 1/1/1/2 |
| Grinding function | Yes (Indoor) |
| Sensors | 2 |
| Clear shace | 4 |
| Darck shade | Variable 9–13 (Indoor) |
| Electric | |
| Supply Voltage | 230V-1ph |
| Fuse | 16A |
| Maximum absorbed power | 9kva |
| Operating range | 9 kVA |
| Open-circuit voltage | 72V |
| Structural | |
| Dimensions | 370x166x280 |
| Protection index | IP21S |
| Regulation board | SOLTER DIGITAL |
| Weight | 6kg |
| Ventilation | FORCED |
