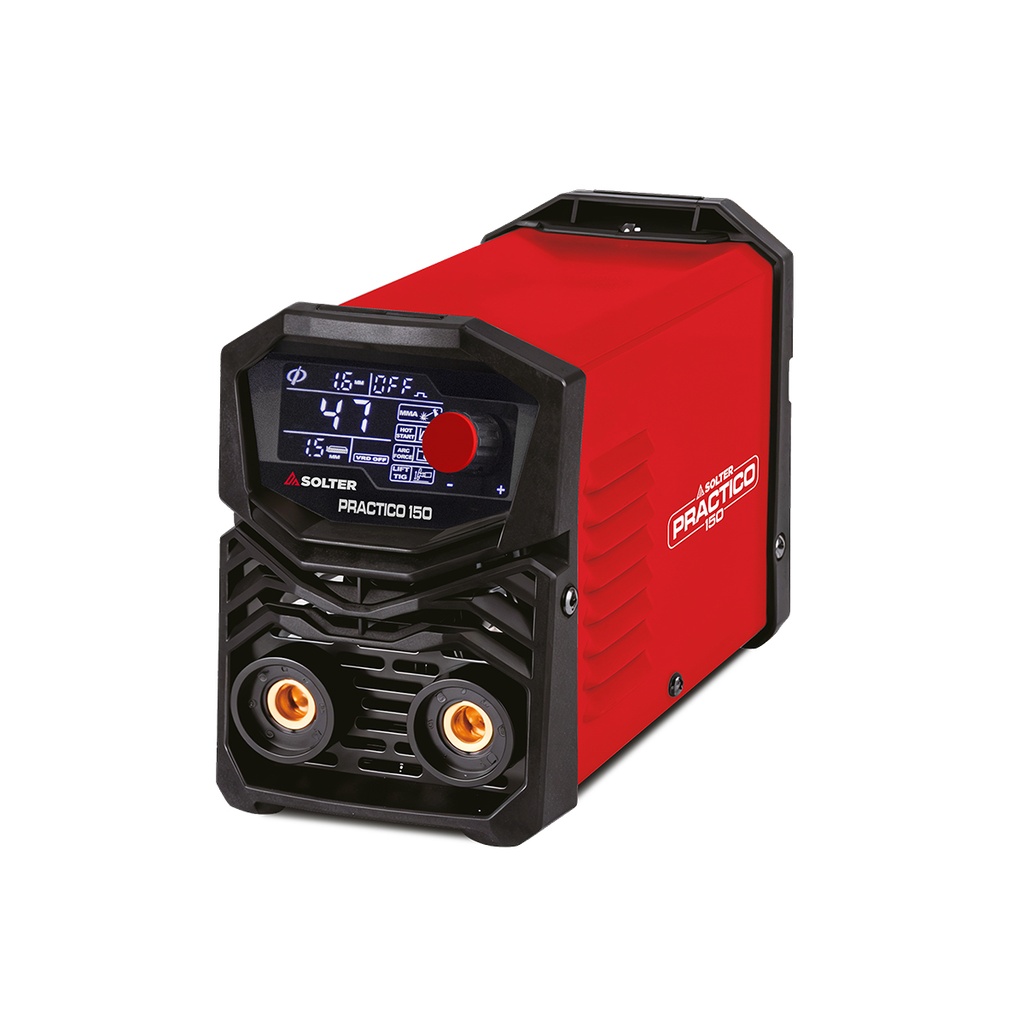

PRACTICO 150 LD (150@20%)
Portaelectrodos 1,5m Ø12, Masa 1,5m Ø12, Maletín
The PRACTICO 150 LD welder from Solter combines advanced performance with a compact design of just 2.2 kg, ideal for those seeking mobility without compromising technical features. Thanks to its inverter technology, it delivers a stable welding arc and an energy efficiency of 80%. It includes MMA and Lift TIG functions, making it adaptable to various tasks and materials. Its digital panel simplifies setup, and the VRD system enhances safety during operation.
Main Features:
✓ Lightweight and powerful welder: weighing only 2.2 kg with dimensions of 255 × 110 × 145 mm, it is easy to transport and store in any environment.
✓ Functional versatility: allows welding in MMA and Lift TIG modes, ideal for working with Ø 2.5 and 3.2 mm electrodes, covering everything from repairs to more demanding assemblies.
✓ Efficient inverter technology: ensures a stable arc and reduces power consumption, ideal for prolonged use without fluctuations.
✓ Ciclo de trabajo equilibrado: entrega 140 A al 20 %, 81 A al 60 % y 63 A al 100 %, permitiendo trabajar con continuidad y seguridad térmica.
✓ Clear and accessible interface: its digital display allows you to select the type of work and easily adjust the intensity, even for those new to welding.
✓ Integrated VRD safety system: reduces no-load voltage when the equipment is not in use, providing additional peace of mind for the user.
✓ Active cooling and IP21S protection: extends the equipment’s service life and ensures reliability even in high thermal demand environments.
| General | |
|---|---|
| Regulation range | 10–150 A |
| Intensity MAX. | 150A |
| Duty Cycle at 40ºC | 20% |
| Intensity at 60%(100%) a 40ºC | 81 A (60 %) 63 A (100 %) |
| Regulations | EN 60974-1 |
| Tech | |
| Usable electrodes MMA | Ø2,5 mm – Ø3,2 mm |
| Usable electrodes TIG | 1,0 mm – 2,0 mm |
| Electric | |
| Supply Voltage | 230V- 1Ph |
| Maximum input current | 32 A |
| Maximum absorbed power | 4,6 kW |
| Operating range | 220V - 240V |
| Structural | |
| Regulation board | Digital LED (unidad de control) |
| Ventilation | FORCED |
| Protection index | IP21S |
| Weight | 2,2 kg |
| Dimensions | 255×110×145mm |
| Technologies | |
| Tecnologies | Pulse MMA, VRD ON/OFF, LIFT TIG |
