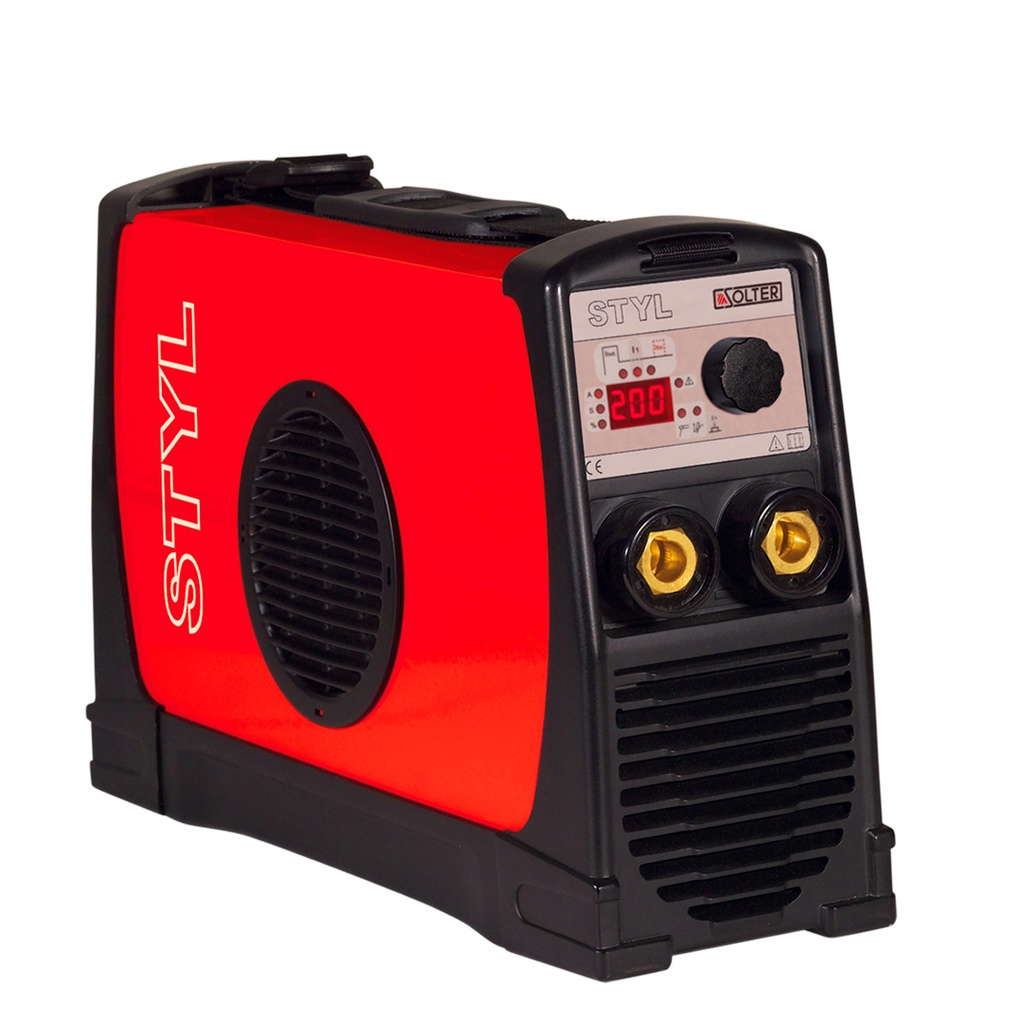

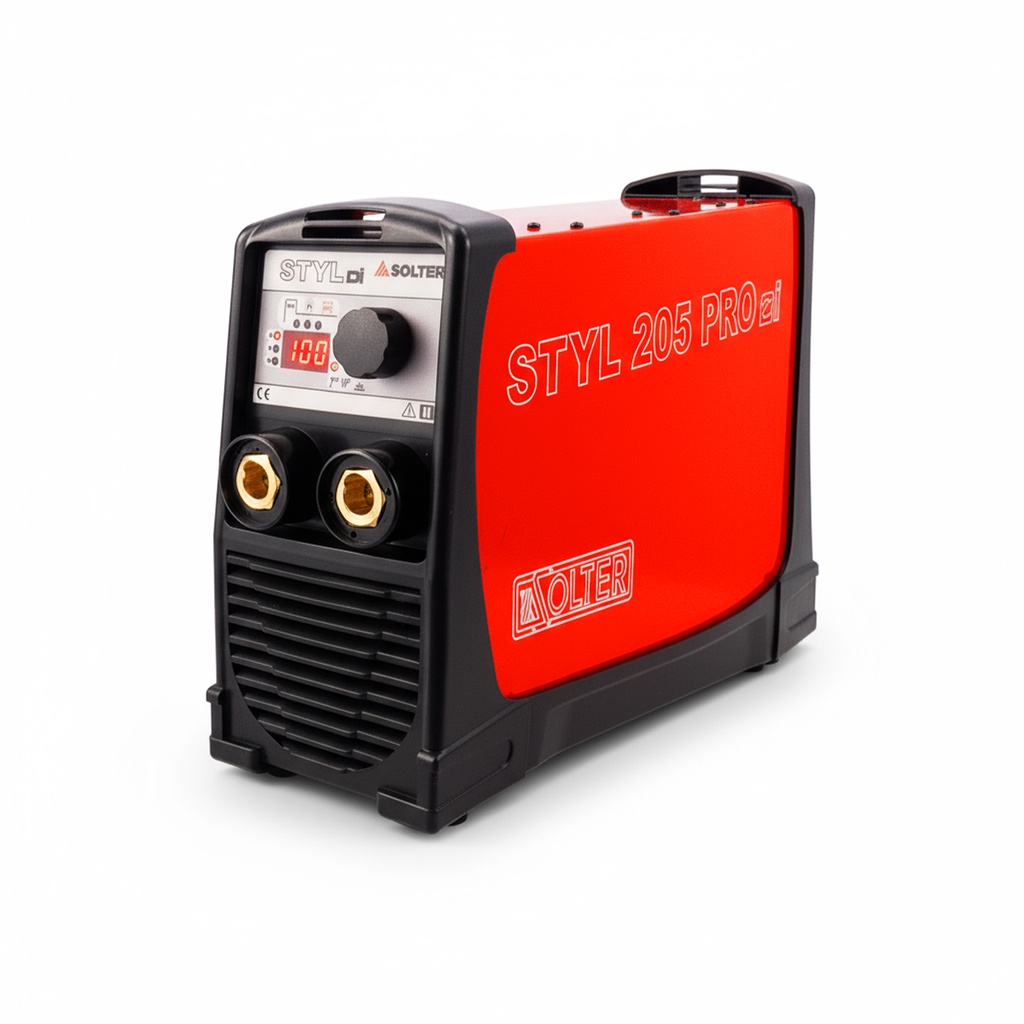

INVERTER STYL 205 PRO + CASE
The INVERTER STYL 205 PRO is a compact and robust welder that combines 200A at 60% duty cycle with excellent energy efficiency. Designed for maintenance and industrial work, it incorporates TIG technology with Lift-Arc and an intuitive digital front panel for easy operation. Its advanced functions such as Anti-Stick, Arc-Force, and Hot-Start ensure a stable arc and professional results in all types of applications. Weighing only 7.5 kg and supplied with a carrying case with accessories included, it offers portability, versatility, and durability, even under demanding work conditions.
Main Features:
✓ Power and stability: 200A at 60% output, ideal for MMA and TIG welding with smooth ignition thanks to Lift-Arc technology.
✓ Compact and durable design: weighing only 7.5 kg with reduced dimensions, it is easy to transport without sacrificing robustness. Its IP23C protection rating allows working in demanding industrial environments.
✓ Advanced functions: includes Anti-Stick to prevent the electrode from sticking, Arc-Force to maintain arc stability, and Hot-Start for quick and efficient ignition.
✓ Intuitive digital panel: simplifies setup and control, suitable for both professionals and less experienced users.
✓ Generator compatibility: operates stably within a range of 180V to 280V, with 9.5 kVA absorbed power and a 16A fuse, optimizing energy consumption.
✓ Included accessories: supplied with a durable carrying case, cables, clamps, and connectors ready to work from the very first use.
✓ Extended options: compatible with optional accessories such as TIG torches and AR/CO2 regulators, enhancing its versatility.
| General | |
|---|---|
| Duty Cycle at 40ºC | 60% |
| Regulation range | 10-200A (20,4 -28V) |
| Intensity MAX. | 200A |
| Intensity at 60%(100%) a 40ºC | 200A (140A) |
| Regulations | EN-60974-1, EN-60974-10 |
| Tech | |
| Usable electrodes TIG | 1,0 - 3,2 mm |
| Usable electrodes MMA | 1,6 - 4,00 mm |
| Electric | |
| Maximum input current | 38A |
| Open-circuit voltage | 80V |
| Operating range | 180V - 280V |
| Maximum absorbed power | 9,5KVA |
| Ieff | 29A |
| Fuse | 16A |
| Supply Voltage | 230V - 1Ph |
| Structural | |
| Ventilation | DOBLE |
| Weight | 7,5 kg |
| Regulation board | SOLTER DIGITAL |
| Protection index | IP23C |
| Dimensions | 390x120x245mm |
