DIRT 400 CEL
Portaelectrodos 4m Ø25, Masa 3m Ø25

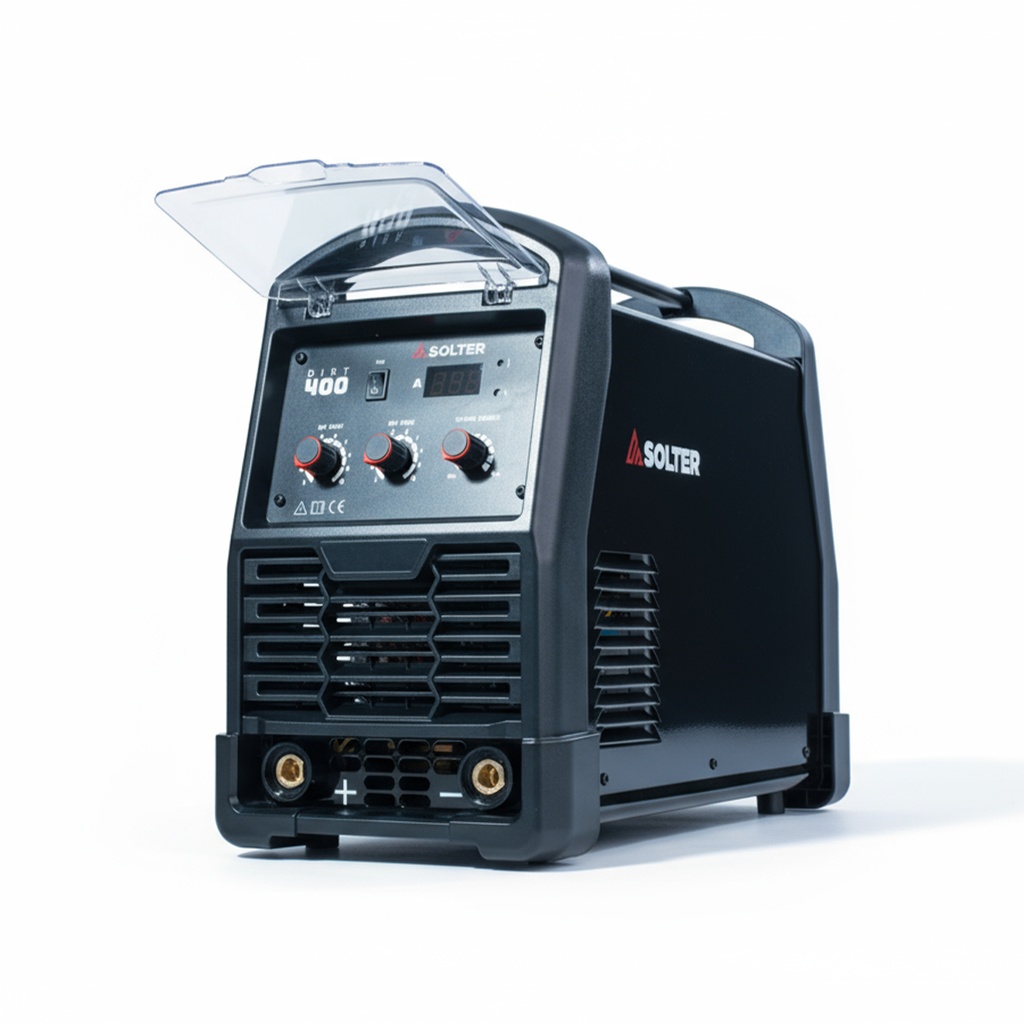

The DIRT 400 CEL by Solter is a three-phase inverter welder with 400A, designed for the most demanding industrial applications. Compatible with all types of electrodes, including cellulosic and aluminum, it ensures an ultra-stable welding arc thanks to its inverter technology and an 89% efficiency. It features a TIG Lift-Arc function, ideal for precision work without electronic interference. Its robust design, intuitive digital panel, and advanced functions make it the perfect solution for assemblies and structures that demand reliability and continuous performance.
Main Features:
✓ Industrial power: Three-phase supply (3~400V ±15% 50/60Hz) with 400A maximum current, delivering a duty cycle of 60% at 400A and 100% at 310A at 40°C, ideal for continuous welding in demanding environments.
✓ Precise regulation: Current adjustment from 15A to 400A, suitable for both delicate work and thick-structure applications.
✓ Total versatility: Compatible with MMA electrodes from 1.6 mm to 5.0 mm and TIG electrodes from 1.6 mm to 4.0 mm, including cellulosic electrodes for pipelines and critical assemblies, as well as aluminum electrodes.
✓ TIG Lift-Arc technology: Safe start without high frequency, preventing interference with nearby electronic equipment.
✓ Guaranteed robustness: Compact housing of 510×240×420 mm, weight of 23 kg, forced cooling, and IP21S protection against dust and liquids.
✓ Solter digital panel: Intuitive parameter control with quick access to Hot Start, Arc Force, Anti Stick, and VRD, enhancing safety and stability.
✓ Safety and reliability: Complies with CE regulations and European standards EN 60974-1 and EN 60974-10, ensuring professional and efficient welding.
| General | |
|---|---|
| Intensity at 60%(100%) a 40ºC | 60% 400 A 100% 310A |
| Intensity MAX. | 400A |
| Regulation | 15-400A |
| Regulations | EN 60974-1 y EN 60974-10 |
| Duty Cycle at 40ºC | 60% a 400A, 100% a 310A |
| Tech | |
| Usable electrodes MMA | 1,6mm - 5,0mm |
| Usable electrodes TIG | 1.6mm-4.0mm |
| Electric | |
| Supply Voltage | 3～400V±15% 50/60Hz |
| Absorved power max. | 20kw |
| I₁max | 29A |
| OCV | 82V |
| Voltage range | 340V - 460V |
| Structural | |
| Dimensions | 510×240×420 |
| Protection index | IP21S |
| Regulation board | SOLTER DIGITAL |
| Weight | 23 kg |
| Ventilation | Forced Auto. |
| Technologies | |
| Tecnologies | Hot Start, Arc Force, Digital, VRD |
