INVERTER CORE 200Di
Portaelectrodos 2m Ø16, Masa 2m Ø16 Maletín

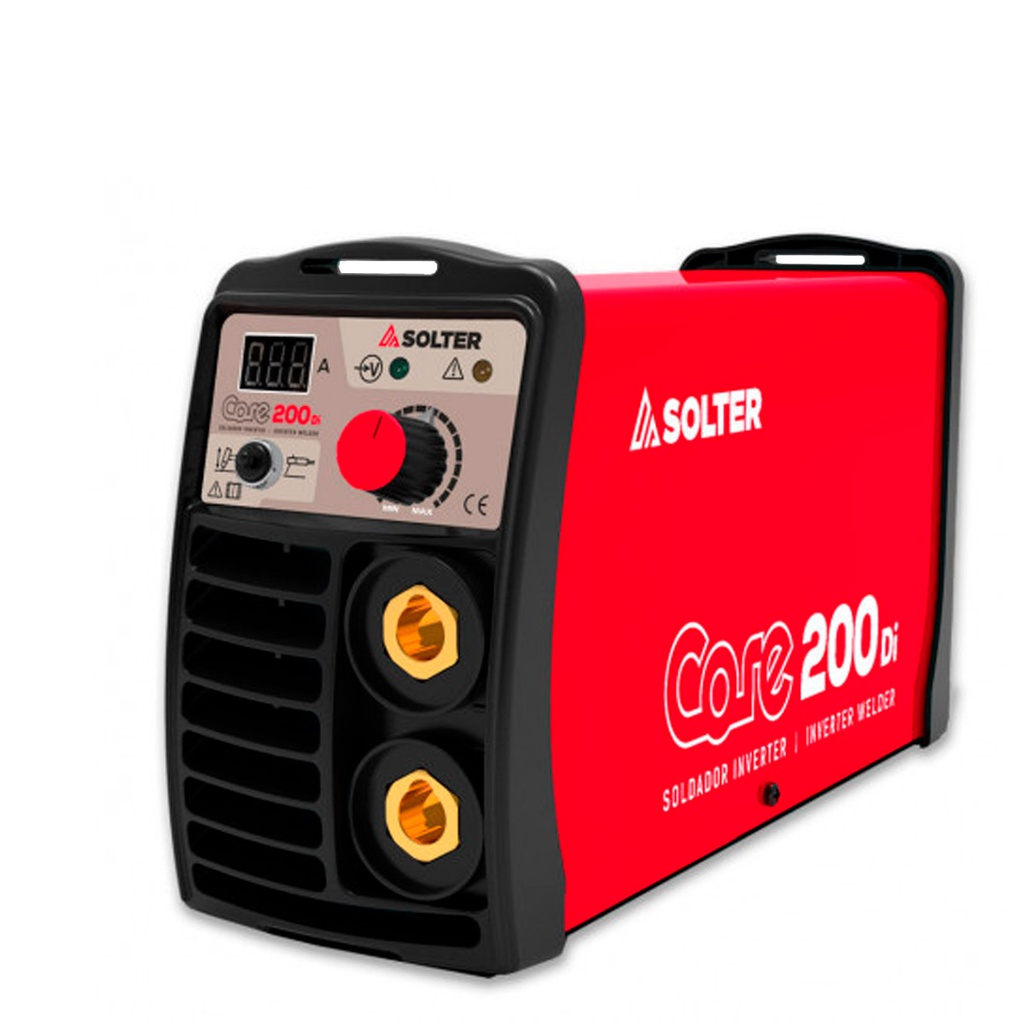

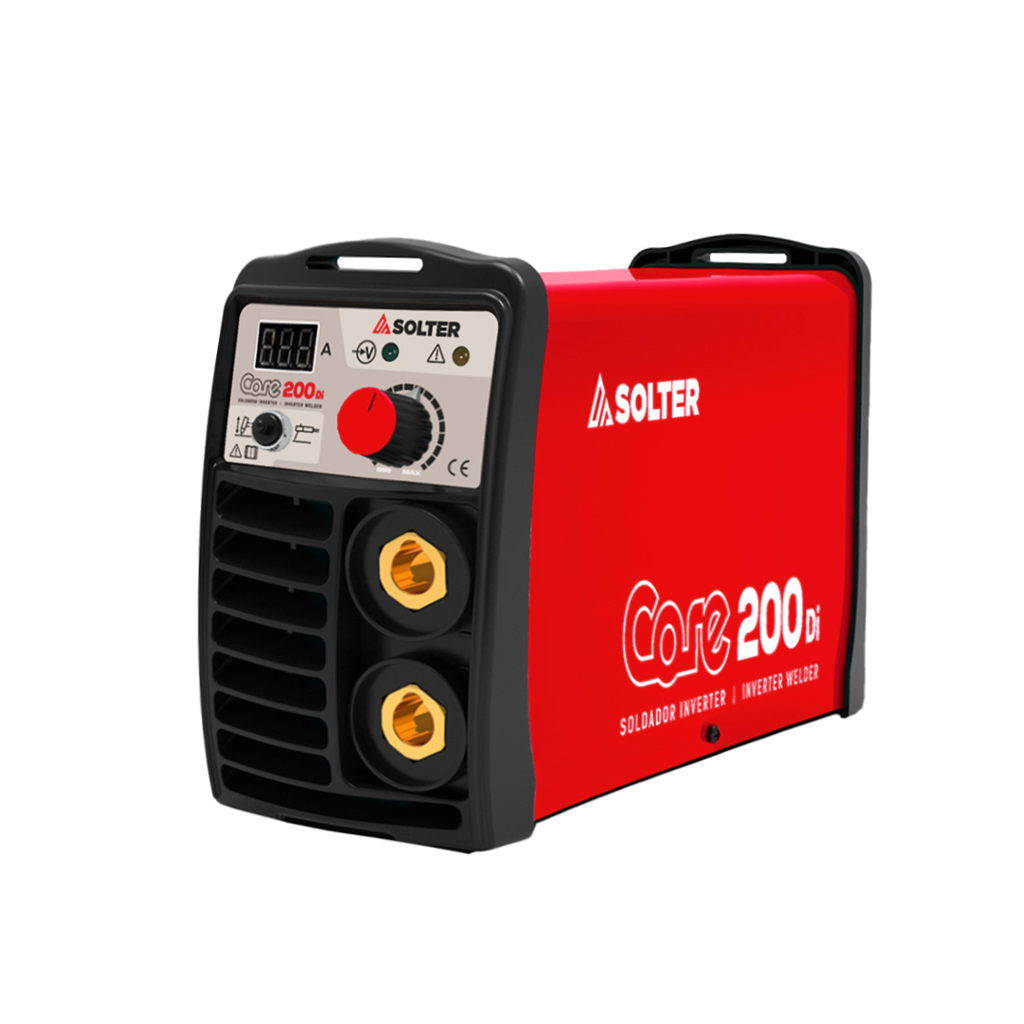

The Solter INVERTER CORE 200Di welder delivers 200A at 40% duty cycle in a compact design weighing only 4.3 kg. Its DC inverter technology ensures a stable and efficient arc, even under demanding conditions. It features advanced functions such as Hot-Start and Arc-Force, enhancing ignition and welding stability. Generator-compatible, it allows outdoor work without performance loss. Thanks to its versatility, it can be used for MMA and TIG Lift-Arc welding, making it ideal for both professionals and industrial environments. Supplied with a carrying case and accessories for greater convenience.
Main Features:
✓ Outstanding performance: operates at 40% with 200A, at 60% with 160A, and at 100% with 135A, ensuring reliability during intensive workloads.
✓ DC Inverter Technology: ensures a stable and precise direct current for professional welding.
✓ Advanced functions: features Hot-Start and Arc-Force, enhancing arc ignition and stability across all types of materials.
✓ Generator compatibility: ensures reliable results for outdoor work or in locations without direct electrical access.
✓ Lightweight and portable: only 4.3 kg with dimensions of 320 x 120 x 195 mm, ideal for mobility and confined spaces.
✓ Multipurpose welding: supports TIG Lift-Arc and MMA processes, adapting to different applications.
✓ Certified standards: complies with EN 60974-1 and EN 60974-10 Class A, ensuring quality and safety.
✓ Nanocrystalline technology: combines power and compactness with an optimized weight-to-performance ratio.
✓ Carrying case included: makes transport and equipment protection easier with practical accessories.
| General | |
|---|---|
| Duty Cycle at 40ºC | 40% |
| Regulation range | 20 - 200A |
| Intensity MAX. | 200A |
| Intensity at 60%(100%) a 40ºC | 160A (135A) |
| Regulations | EN 60974-1, EN 60974-10 |
| Tech | |
| Usable electrodes TIG | 1,0 - 3,2mm |
| Usable electrodes MMA | 1,6mm - 4,0mm |
| Electric | |
| Open-circuit voltage | 69V |
| Operating range | 190 - 265V |
| Maximum absorbed power | 6,9Kva |
| Ieff | 25A |
| Fuse | 16A |
| Supply Voltage | 230V-1ph |
| Structural | |
| Ventilation | FORZADA |
| Weight | 4,3 kg |
| Regulation board | SOLTER DIGITAL |
| Protection index | IP21 |
| Dimensions | 320x120x195mm |
| Technologies | |
| Tecnologies | Anti STICK, Arc Force, Hot-Start, Generator OK |
