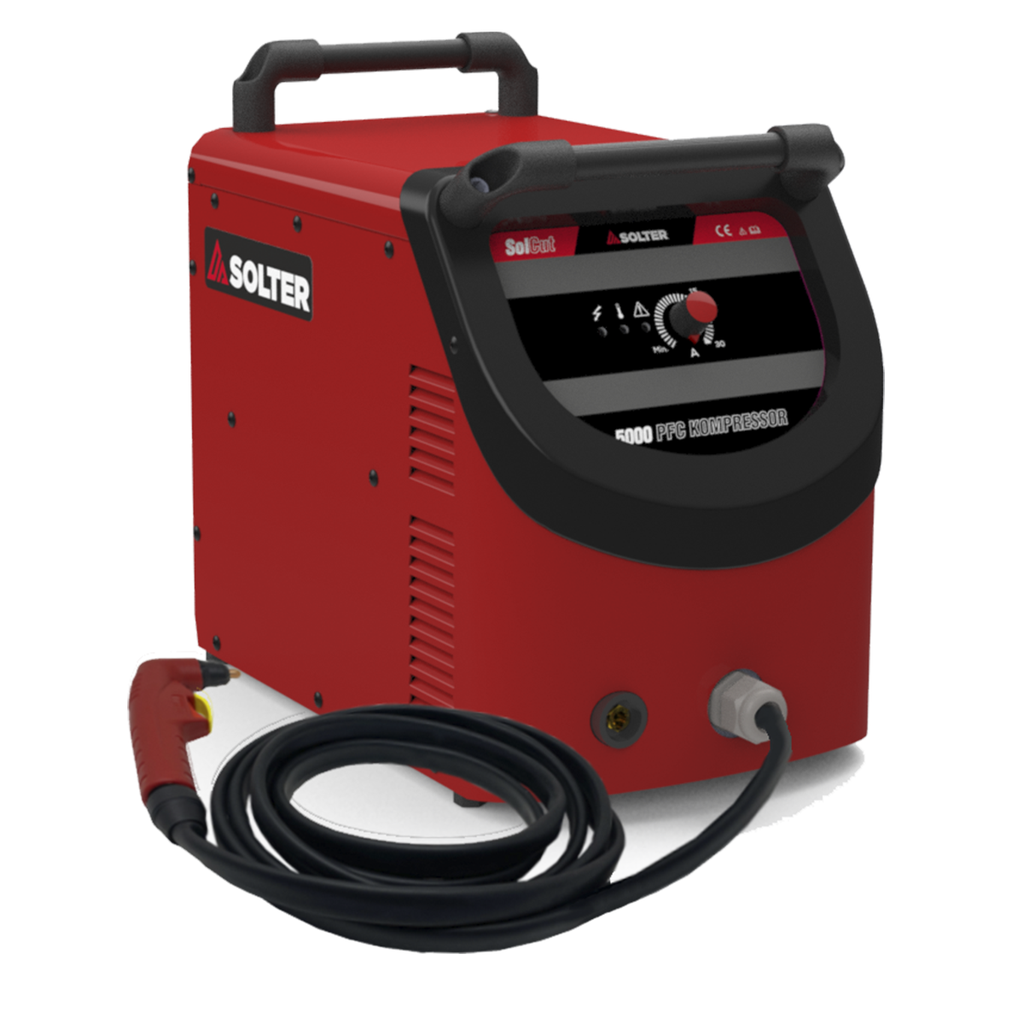

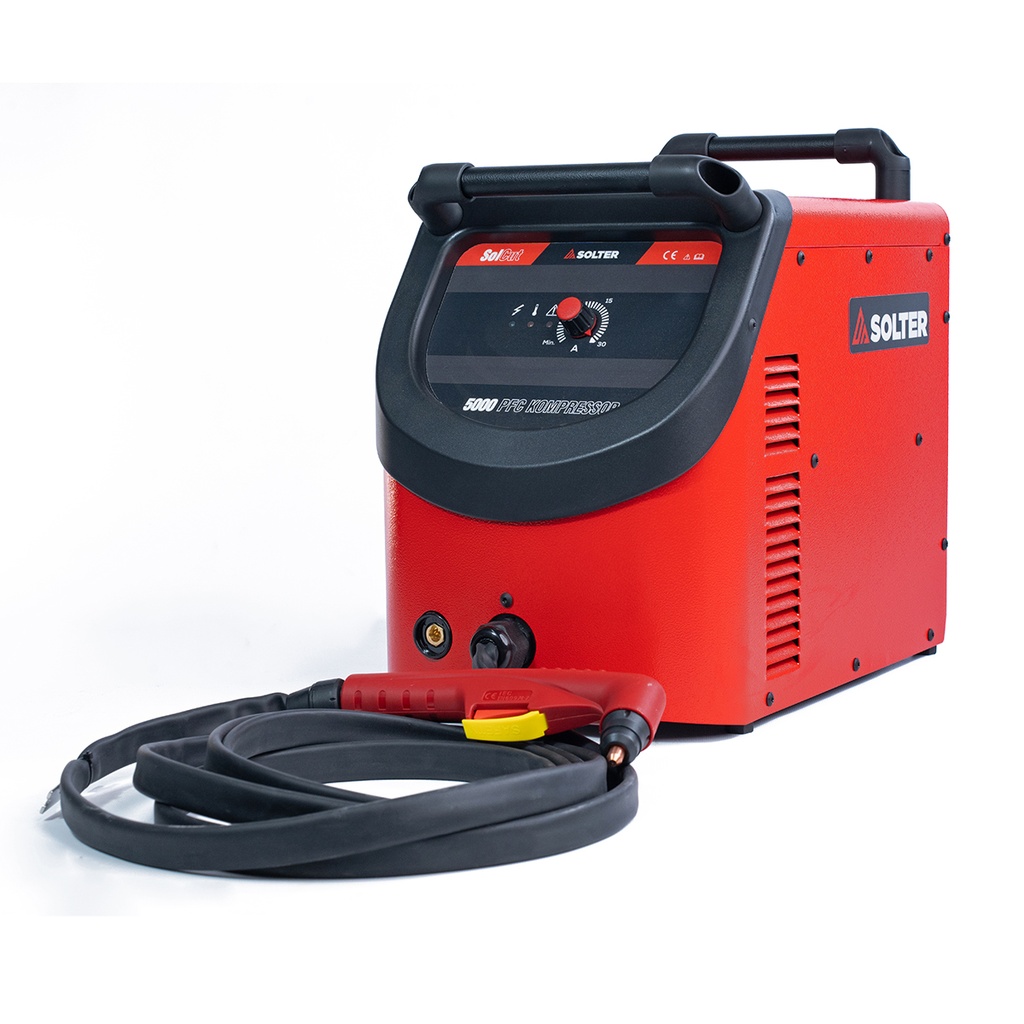

PLASMA SOLCUT 5000 KOMPRESSOR PFC
El Plasma SOLCUT 5000 Kompressor PFC is a self-contained cutting unit with an integrated compressor, designed to deliver maximum independence and professional precision. Thanks to its Inverter technology with PFC, it improves energy efficiency and ensures a stable cutting arc, reducing power consumption by up to 30%. With a clean cutting capacity of 8 mm and a maximum of 12 mm, it works with steel, aluminum, and stainless steel, delivering high-quality results. Its robust, portable, and user-friendly design makes it the ideal tool for professionals and workshops seeking performance, durability, and mobility in a single unit.
Main Features:
✓ Self-contained system with integrated compressor: no external equipment required, providing greater independence and ease of use.
✓ Inverter technology with PFC: ensures a stable cutting arc, optimizes energy efficiency, and reduces power demand.
✓ Optimized cutting capacity: clean cuts up to 8 mm and maximum of 12 mm, delivering precise results on steel, aluminum, and stainless steel.
✓ Energy saving: its PFC design reduces power consumption by up to 30%, lowering operating costs.
✓ 230V single-phase operation: compatible with standard electrical installations in workshops and construction sites.
✓ Professional portability: weight of 20 kg and dimensions of 440x270x350 mm for easy transport and storage.
✓ Longer consumable lifespan: features an automatic cooling system that prevents overheating and reduces maintenance.
✓ Operational stability with long extensions: maintains performance with cables up to 50 meters.
✓ Quick and intuitive start-up: ready to work in seconds, with no complex settings required.
✓ Compatibility with optional accessories: adaptable to different tasks with additional torches and consumables.
| General | |
|---|---|
| Intensity MAX. | 30A |
| Regulations | EN 60974-1 / EN 60974-10 Clase A |
| Regulation | 5 - 30A |
| Duty Cycle at 40ºC | 30A @ 100% |
| Tech | |
| Cutting capacity ALUMINIUM | 8mm |
| Cuttinh capaciity STEEL | 8mm |
| Cutting capacity STAINLESS STEEL | 5mm |
| Compresor | Incorporado |
| Electric | |
| I₁max | 16A |
| Absorved power max. | 3,7Kva |
| Supply Voltage | 220-240V 1Ph |
| OCV | 240V |
| Structural | |
| Dimensions | 440x270x350mm |
| Protection index | IP21 |
| Weight | 20 kg |
| Ventilation | FORZADA |
