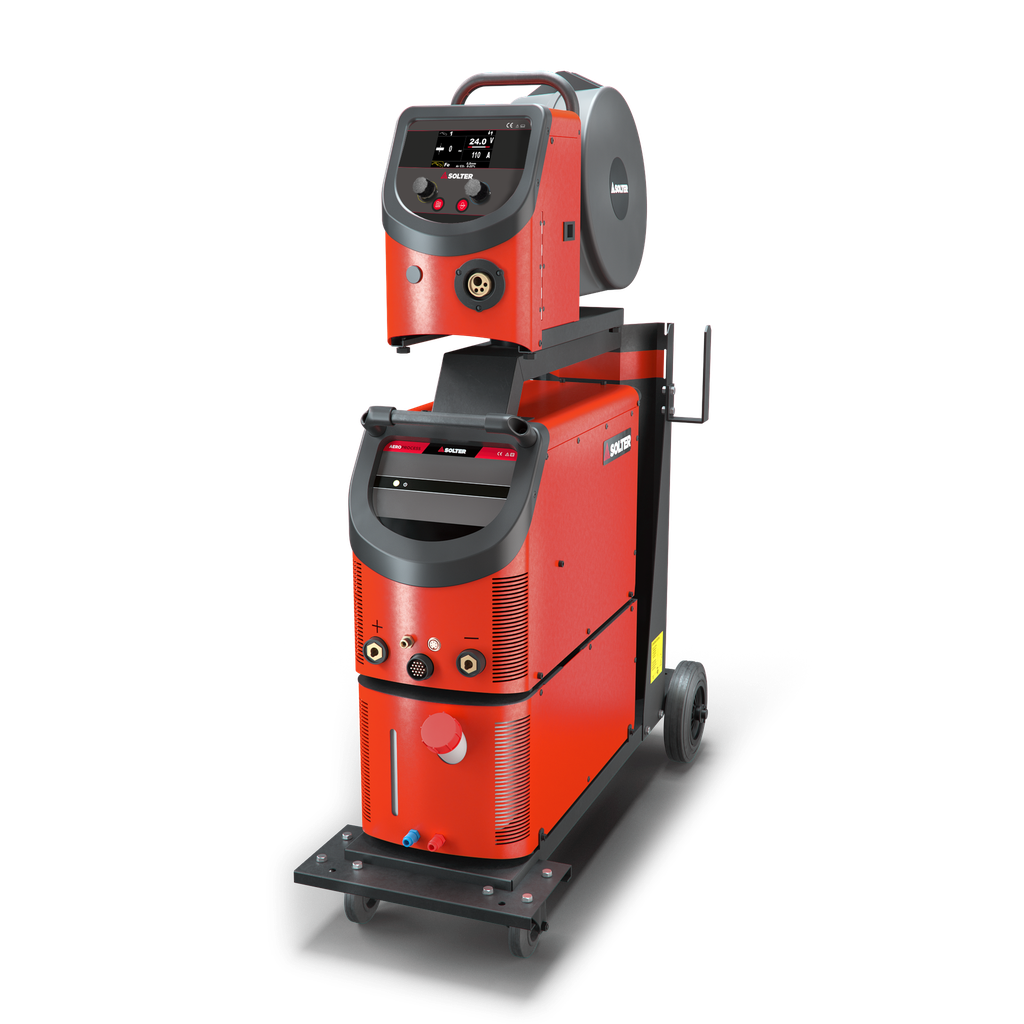

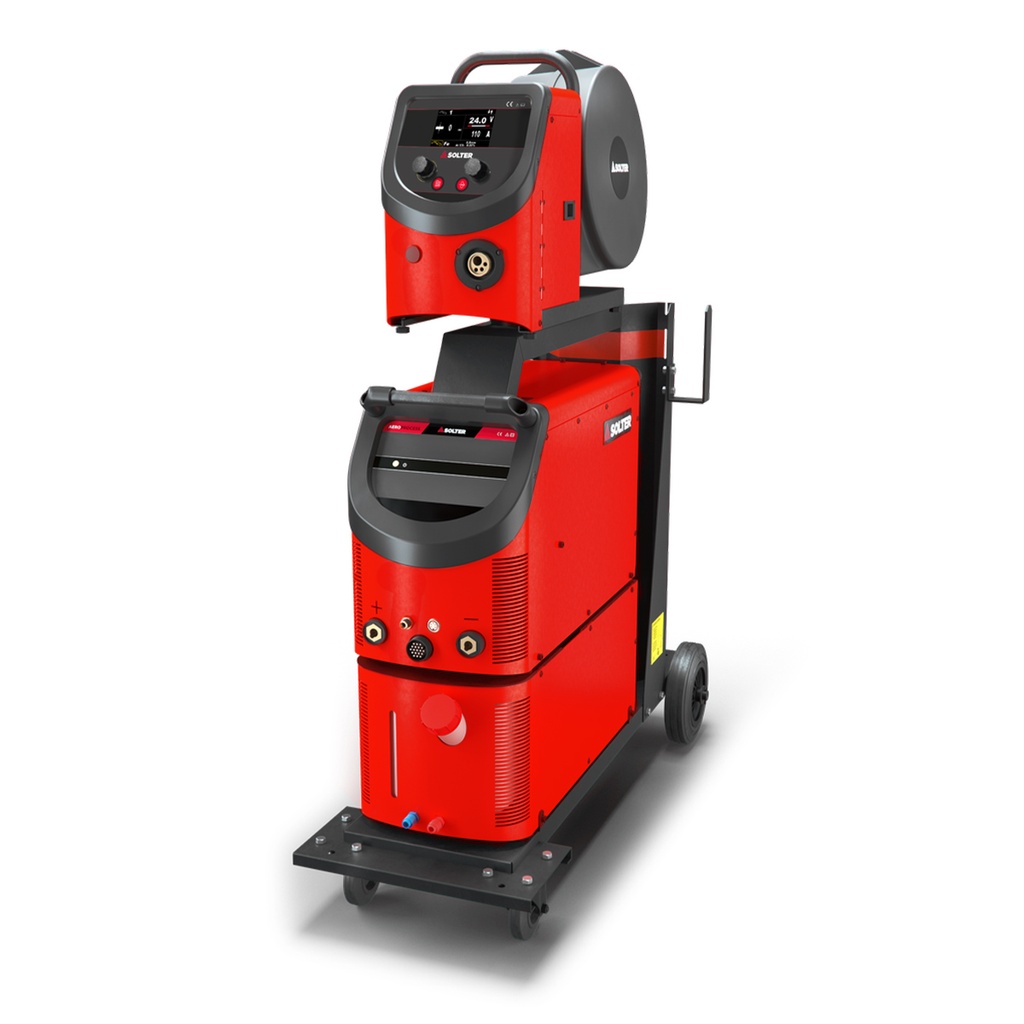

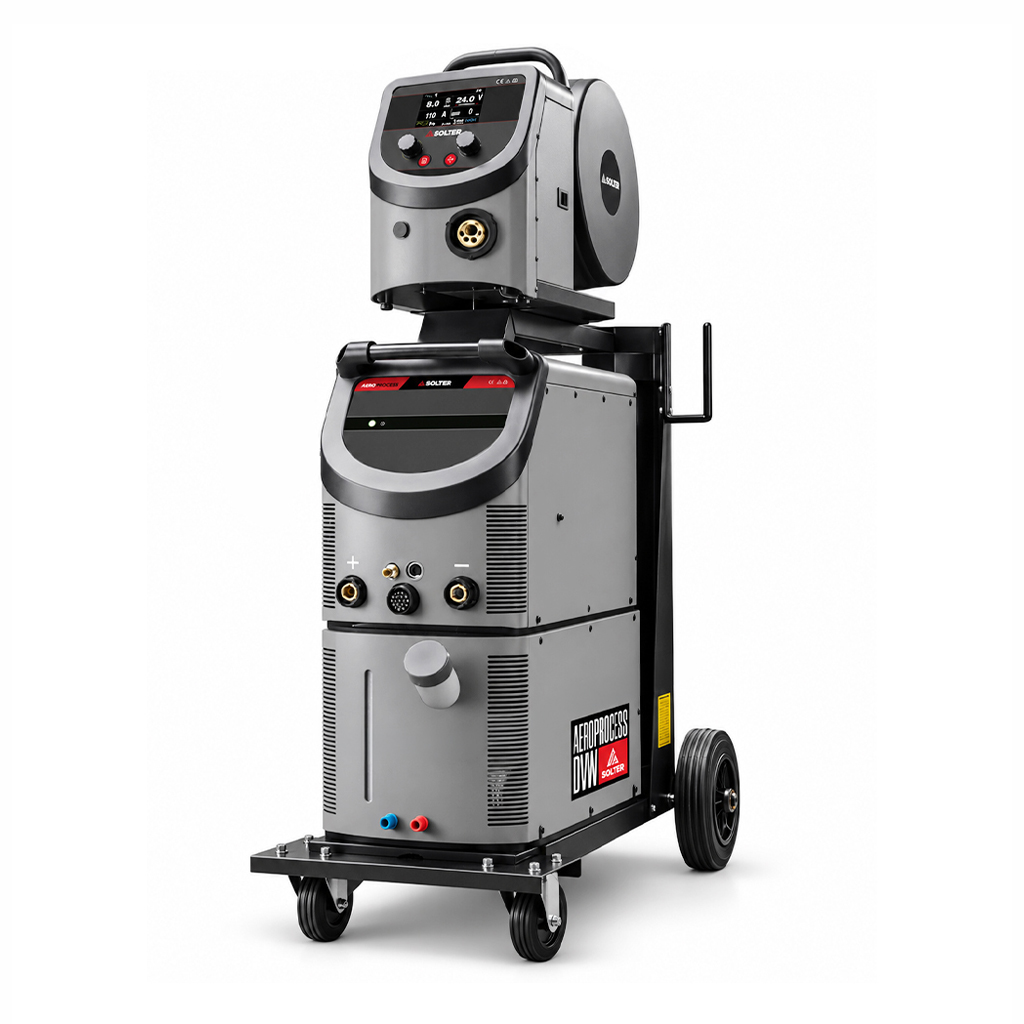

AEROPROCESS DVW WI
The AEROPROCESS DVW WI from Solter is the most powerful multiprocess solution for demanding welding jobs. Available in 320A, 400A and 500A versions, it allows working with MIG/MAG, TIG and MMA on steel, stainless steel, aluminum or CuSi3. It features an Aeroprocess LCD panel, Tunnel automatic ventilation and WiFi connectivity, making it the ideal equipment for industrial workshops seeking synergic control, connectivity and continuous efficiency. With water cooling and separate wire feeder, it ensures performance and durability even during extended shifts.
Main Features:
✓ Available in 320A, 400A and 500A versions, with duty cycles from 60% to 100% at 40 °C, ideal for intensive welding in industrial environments.
✓ Aeroprocess LCD panel with advanced synergic technology that provides precise arc control and enables PULSED and DOUBLE PULSED welding, even on thin materials.
✓ Compatible with MIG/MAG, TIG and MMA welding processes, adapting to multiple applications and sectors.
✓ Supports D200 (5kg) and D300 (15kg) spools, using wires from 0.6 to 1.6 mm with 4R drive rollers, ensuring constant and stable feeding.
✓ Integrated WiFi connectivity and access to the WaaS Welding 4.0 platform, allowing remote adjustments and storage of up to 20 custom programs.
✓ Liquid cooling system that protects the equipment during extended shifts, optimizing performance.
✓ Robust construction (655x275x1290 mm), with protection rating IP23S and weight of 85 kg, designed to withstand demanding conditions.
✓ Three-phase 400V power supply, with maximum absorbed power of up to 44 KVA, depending on the version.
✓ Tunnel-type automatic ventilation that improves thermal efficiency and extends the service life of the equipment.
| General | |
|---|---|
| Intensity at 60%(100%) a 40ºC | 280A (260) // 320A (280A) // 430A (400A) |
| Intensity MAX. | 320A // 400A // 500A |
| Regulation | 10-320A(10,4-30V) // 10A-400A(10,4-34V) // 10-500A(10,4-36V) |
| Tech | |
| Usable wire coil | D200 (5 kg), D300 (15 kg) |
| Usable welding wire | 0,6 - 1,6 mm |
| Wire feeder rolls | 4R |
| Electric | |
| Supply Voltage | 400V - 3ph |
| Absorved power max. | 22KVA // 33KVA // 44KVA |
| Structural | |
| Dimensions | 655x275x1290 mm |
| Protection index | IP23S |
| Regulation board | Aeroprocess LCD |
| Weight | 85kg |
| Ventilation | TUNNEL AUTOMATIC |
| Configuraciones | |
| Potencia (Amp) | 320 or 400 or 500 |
| Version | BASIC or PULSE |
| Conexión Aerofeed | 73365 - W 1,7m x Cu70mm² or 73366 - W 5m x Cu 70mm² or 73367 - W 10m x Cu70mm² |
| Antorcha MIG/MAG | SX-501 4m W + or Antorcha MIG 3M SX-501 W AL or SX PULSE W 3m + or SX PULSE W 3m ALU + or Sin antorcha |
| Conjunto Masa | 06114 - 3m Cu35mm 35-50 400A or 10199 - 3m Cu50mm 35-50 600A or Sin pinza |
