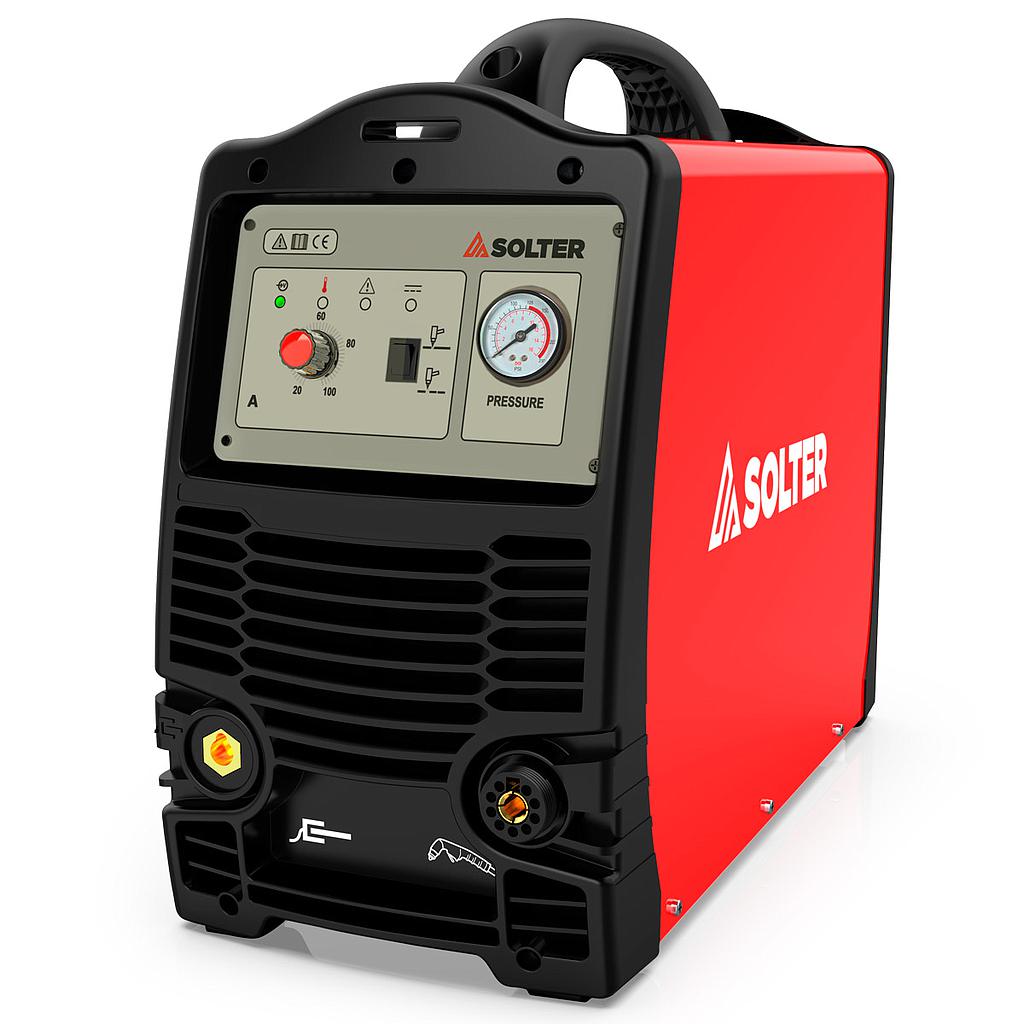

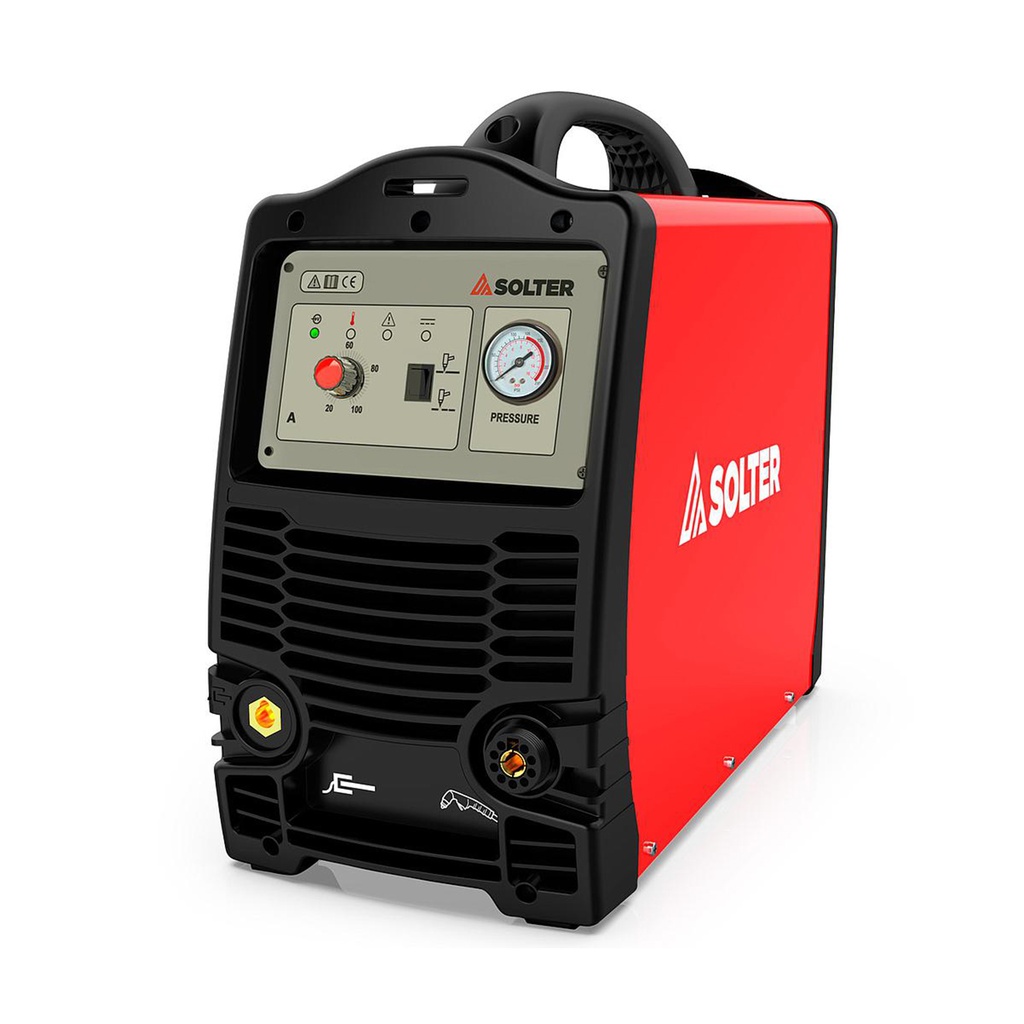

SOLCUT 100 PRO
The PLASMA SOLCUT 100 PRO is the ultimate solution for demanding cuts in industrial and construction environments. With 100A of power, Inverter technology and 400V-3ph connection, it ensures optimal performance even in the toughest jobs. Its cutting capacity is exceptional: up to 35 mm on steel and aluminum, 28 mm on stainless steel, and a recommended clean cut of up to 30 mm. Designed for companies and professionals in the metalworking sector, this machine combines power, precision, and portability in a robust and reliable unit. Delivered complete with a PT-120 torch and ground clamp, it is ready to integrate seamlessly into any project. Make every cut with maximum efficiency and reliability!
Main Features:
✓ Powerful and precise cutting: With true 100A, the SOLCUT 100 PRO ensures fast and accurate cuts on steel, aluminum, and stainless steel. Its capacity of up to 35 mm on steel and aluminum and 28 mm on stainless steel allows effortless work with thick materials, delivering clean, burr-free finishes.
✓ Uninterrupted performance: Designed for long working sessions, its high duty cycle ensures stability even under demanding conditions. It minimizes the risk of overheating and keeps productivity at the highest level.
✓ Advanced Inverter technology: Its optimized Inverter system delivers greater energy efficiency, lower power consumption, and arc stability. With this machine, every cut is more precise and cost-effective.
✓ Effortless portability: Despite its high power, its compact and robust design allows it to be easily transported across workshops, factories, and construction sites. Full versatility with industrial performance.
✓ Safe and comfortable operation: Its forced-air cooling system prevents overheating and extends the equipment’s service life. The included PT-120 torch and ground clamp ensure optimal performance, improved ergonomics, and precise control.
✓ Versatility for multiple applications: From manufacturing to metal construction, the SOLCUT 100 PRO is the best choice for those seeking fast and efficient cuts in any environment. Ideal for boiler-making, automotive, metallurgy, and more.
✓ Easy and cost-effective maintenance: Easy access to consumables for quick maintenance, extending the equipment’s service life and reducing spare part costs.
| General | |
|---|---|
| Intensity at 60%(100%) a 40ºC | 100A (80A) |
| Intensity MAX. | 100A |
| Regulations | EN90971-1, EN60974-10 |
| Regulation | 20-100A |
| Tech | |
| Cutting capacity ALUMINIUM | 35mm |
| Cuttinh capaciity STEEL | 35mm |
| Cutting capacity STAINLESS STEEL | 28mm |
| Caudal de aire | 150l/min |
| Air flow | 150l/min |
| Air pressure | 3,5 -10bar |
| Optimal aire pressure | 4,5 bar |
| Electric | |
| I₁max | 21,6A |
| Absorved power max. | 13Kva |
| Supply Voltage | 400 - 3ph |
| OCV | 300V |
| Structural | |
| Dimensions | 530x250x400 |
| Protection index | IP23 |
| Weight | 25 kg |
| Ventilation | FORZADA |
