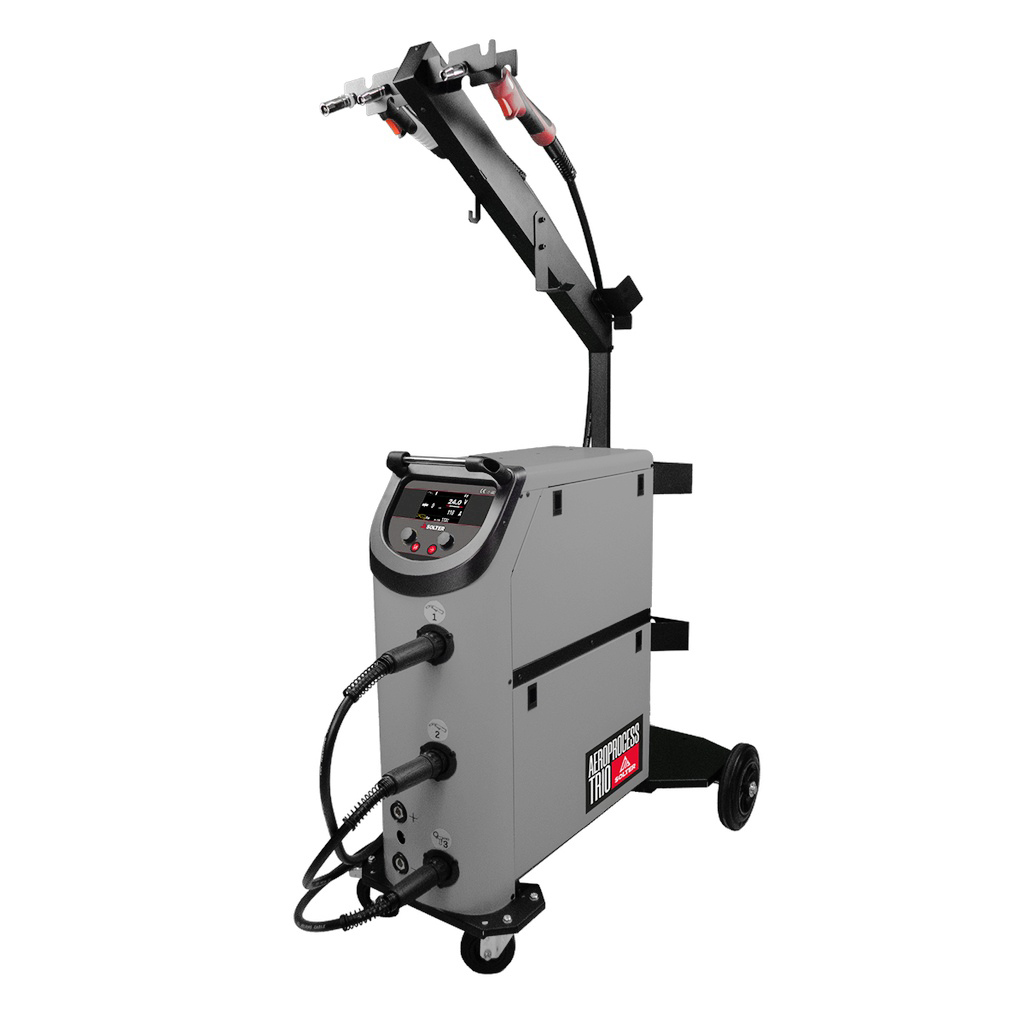

AEROPROCESS C TRIO 3 PULSE
Incluye:
Antorcha 3m SX-15 ROJA
Antorcha 3m SX-15 AZUL
Antorcha 3m SX-25 GRIS
Masa 3m Cu25 200A
Solter's AEROPROCESS TRIO multiprocess welder has been designed to meet the highest demands of the automotive and bodywork sector. It offers pre-installed synergic parameters for welding steel, CuSi3, CuAl8, and aluminum (AlMg and AlSi), ensuring precision and efficiency in every job. With its MIG/MAG, MMA, and TIG-DC multiprocess architecture, it combines versatility and productivity in a single unit. Its compact and robust design with multifunction arm, along with the XL gas bottle holder base, makes it the ideal solution for body and paint workshops. Enhance the reliability and efficiency of your setup with Solter. Get yours today!
Main Features:
✓ High-performance welding for bodywork and automotive: ideal for steel and aluminum repairs using Steel, CuSi3, CuAl8, AlMg, and AlSi wires.
✓ Total versatility: multiprocess architecture allowing work with MIG/MAG, MIG/MAG PULSE, coated electrode (MMA), TIG-LIFT, and TIG-LIFT PULSE.
✓ Precise and adaptable control: synergic and manual modes, with 2T, 4T, SPOT, and DELAY functions, plus advanced parameters such as pre-gas, post-gas, soft-start, and crater filler.
✓ Smart programming: up to 70 pre-installed synergic programs, with automatic adjustment based on power, gas, material, and wire diameter.
✓ Advanced interface: high-detail LCD screen and 3 independent control boards, with configuration for 3 user levels (Beginner, Easy, and Expert).
✓ Available models:
- AEROPROCESS TRIO 2+1: 2 drive motors, capacity for 2 wire spools (D200 and D300), prepared for SpoolGun torch.
-
AEROPROCESS TRIO 3 PULSE: 3 drive motors, capacity for 3 simultaneous wire spools (D300 and 2xD200), with integrated PULSE technology, ideal for aluminum.
✓ Instant process change: equipped with 3 independent solenoid valves (one per torch), allowing program selection without manual adjustments.
Solter guarantees innovation, precision, and professional support in every welding machine, ensuring productivity and optimal results in all types of work.
| General | |
|---|---|
| Intensity MAX. | 200A |
| Regulation | 5-200A (20,2 -28V) |
| Duty Cycle at 40ºC | 45% |
| Tech | |
| Usable wire coil | 1xD300 + 2xD200 |
| Usable electrodes MMA | 1,6 - 4,0mm |
| Usable electrodes TIG | 1,0 - 3,2mm |
| Hilo utilizable gas | 0,6 - 1,0mm |
| Wire feeder rolls | 1x4R + 2x2R |
| Electric | |
| I₁max | 25A |
| Supply Voltage | 230V-1ph |
| Fuse | 25A |
| OCV | 74V |
| Structural | |
| Dimensions | 915x460x1345 |
| Protection index | IP23 |
| Regulation board | Aeroprocess LCD |
| Weight | 45 kg |
| Ventilation | FORCED |
