AEROMIG C

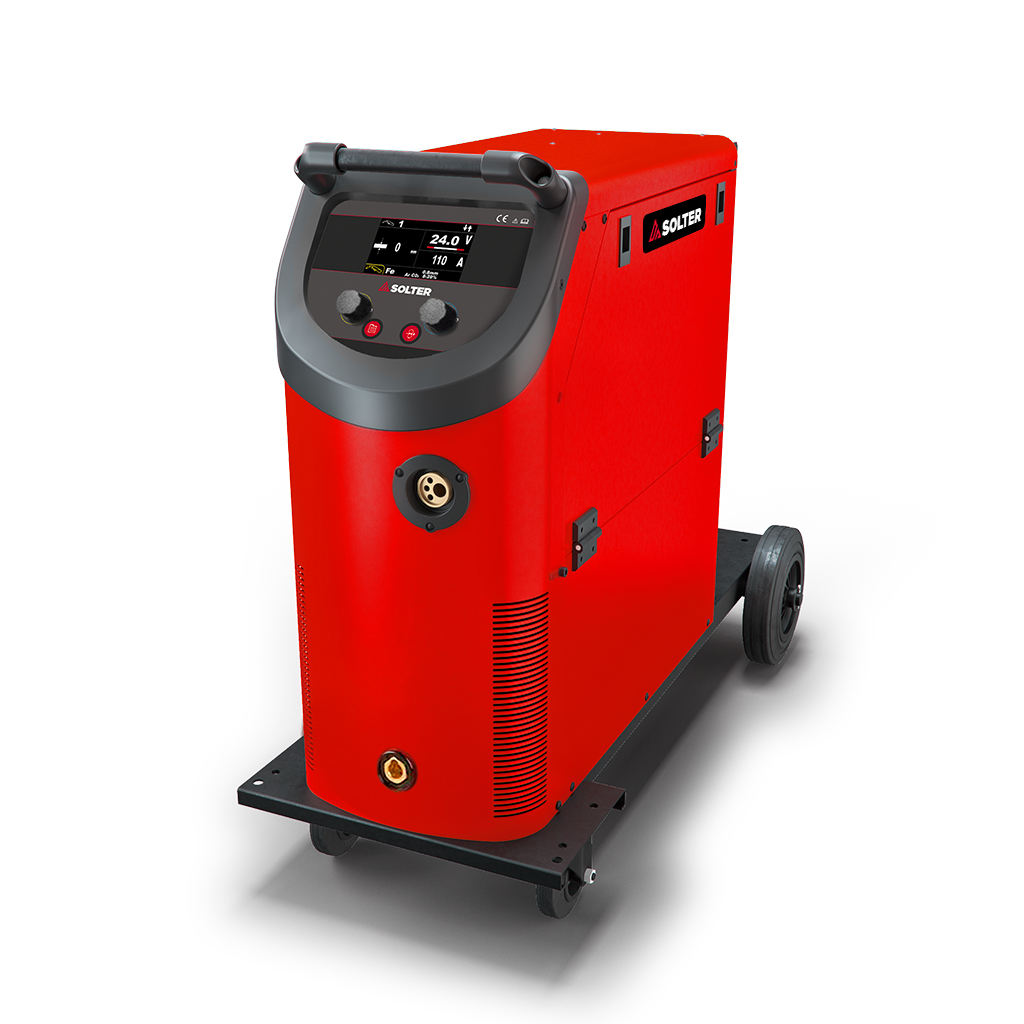

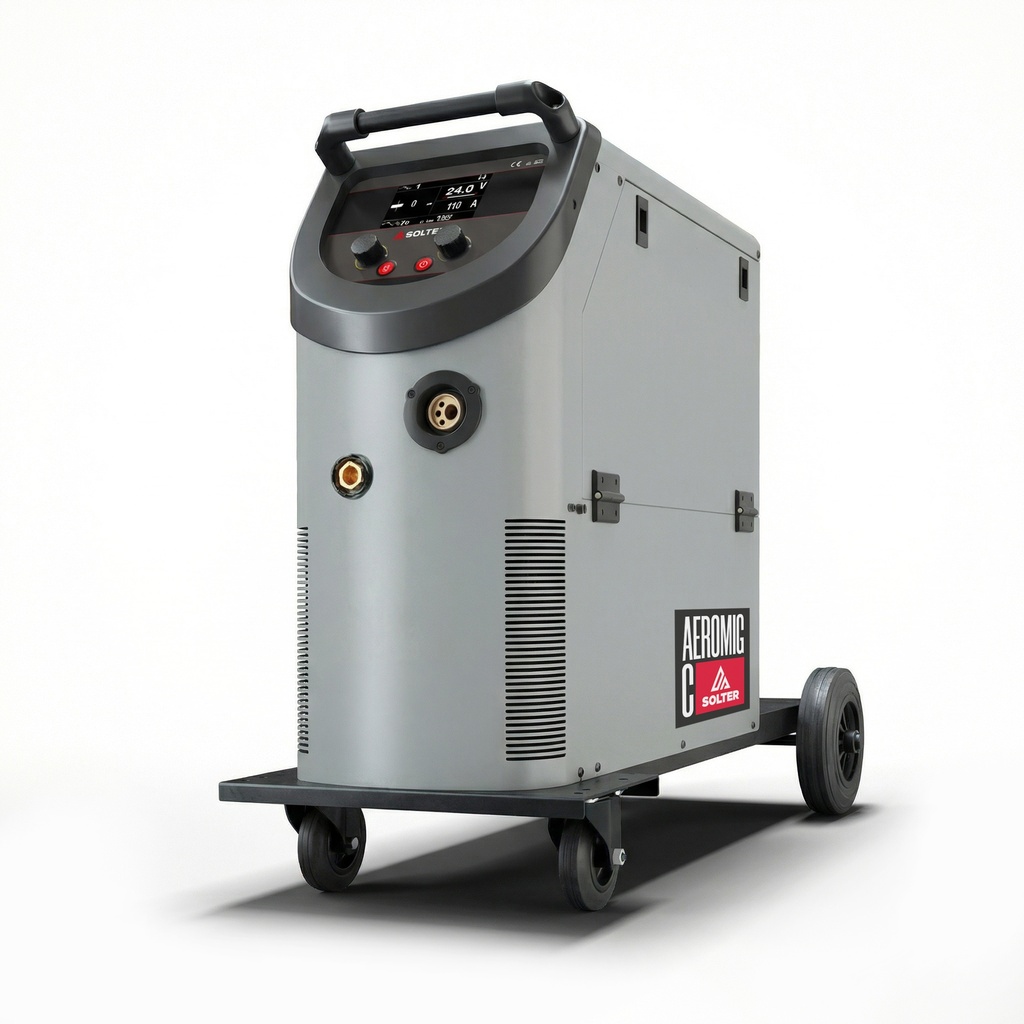

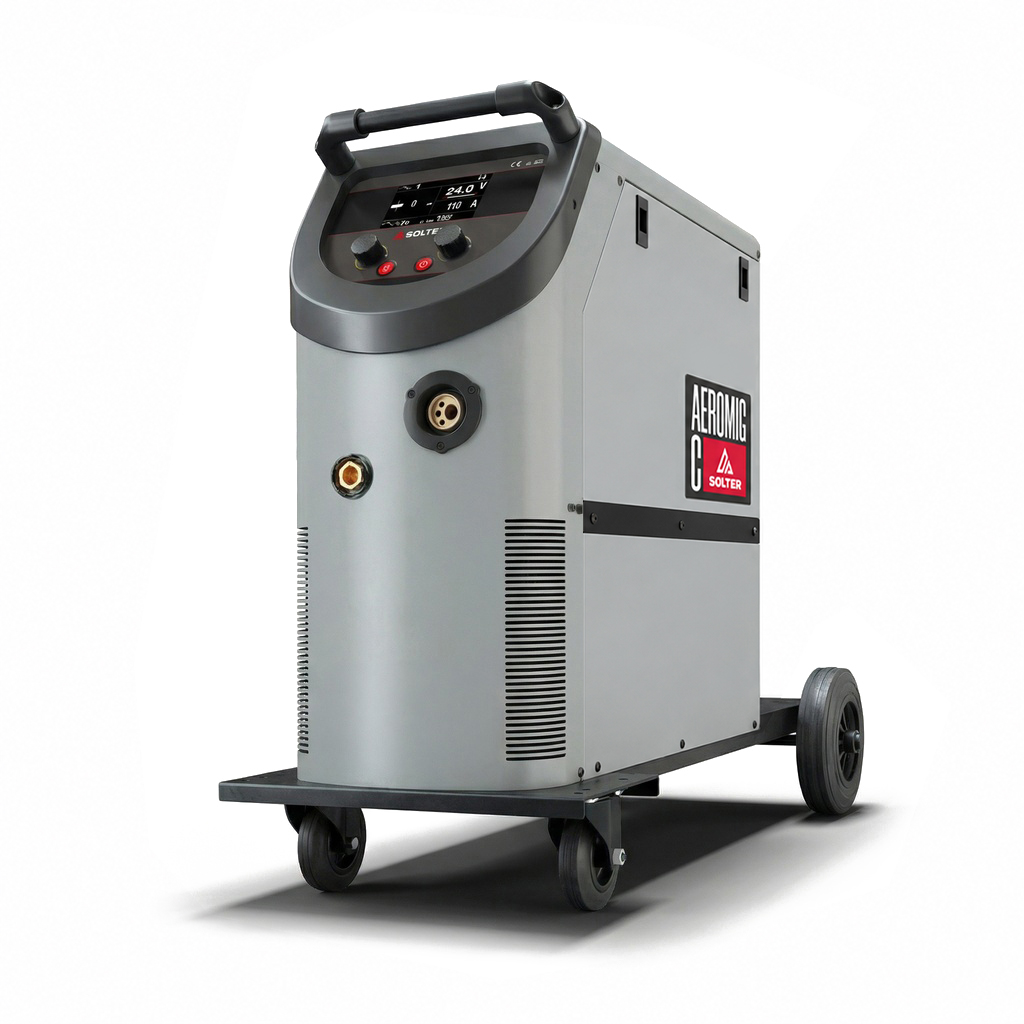

The AEROMIG C from Solter, available in 300A and 400A versions, is a compact, robust, and high-performance MIG-MAG welding power source. It features intelligent synergic control and a dual-selector LCD interface, simplifying setup in both manual and automatic modes. Its advanced options include pulsed arc, double pulse, and Root Pass, ideal for professional welding with high precision and reduced heat input. With memory capacity for 20 programs, integrated wire feeder, and gas support, it provides maximum efficiency in repetitive tasks. Designed for thicknesses up to 10 mm, it ensures stability, bead quality, and reliability in the most demanding environments.
Main Features:
✓ Professional power: 300A and 400A versions with regulation of 10-300A / 10-400A, suitable for all types of MIG-MAG applications.
✓ Synergic and manual control: automatic parameter adjustment for stable welds, with manual setup option for greater flexibility.
✓ LCD interface with dual selector: color-coded controls that streamline setup and reduce errors.
✓ Optional advanced modes: pulsed arc, double pulse, and special processes such as Root Pass and vertical-up MIG, ideal for clean beads and positional welding.
✓ Memory capacity: stores up to 20 different programs, making repetitive work on various materials and thicknesses easier.
✓ Robust and compact design: reinforced structure with integrated wire feeder and gas support for intensive use in workshop or field.
✓ Real-time visualization: monitoring of amperage, voltage, and material thickness from the screen or via app connection.
✓ Superior energy efficiency: with absorbed power of 13 kVA (300A) and 22 kVA (400A), it provides stability with low consumption.
✓ Reliability in demanding environments: IP23S protection, automatic tunnel-type ventilation, and class H thermal insulation.
| General | |
|---|---|
| Intensity at 60%(100%) a 40ºC | 270A (250A) // 320A (280A) |
| Intensity MAX. | 300A // 400A |
| Regulation | 10-300A // 10-400A |
| Tech | |
| Usable wire coil | D300 - 15kg |
| Usable welding wire | 0,6 - 1,2 mm |
| Wire feeder rolls | 4R |
| Electric | |
| Supply Voltage | 400V - 3ph |
| Absorved power max. | 13KVA // 22KVA |
| OCV | 62V |
| Fuse | 14/18A |
| Structural | |
| Dimensions | 915x460x840 |
| Protection index | IP23S |
| Regulation board | Aeroprocess LCD |
| Weight | 48Kg. // 49Kg. |
| Ventilation | TUNNEL AUTOMATIC |
| Configuraciones | |
| Potencia (Amp) | 300 or 400 |
| Version | BASIC or PULSE |
| Antorcha MIG/MAG | SX-25 4m + Sirga Acero 1.0-1.2mm or SX-25 3m + Sirga Grafito 1.0-1.2mm or SX-36 4m + Sirga Acero 1.0-1.2mm or SX-36 3m + Sirga Grafito 1.0-1.2mm or SX PULSE 4m + Sirga Acero 1.0-1.2mm or SX PULSE 3m + Sirga Acero 1.0-1.2mm or Sin antorcha |
| Conjunto Masa | 06114 - 3m Cu35mm 35-50 400A or Sin pinza |
