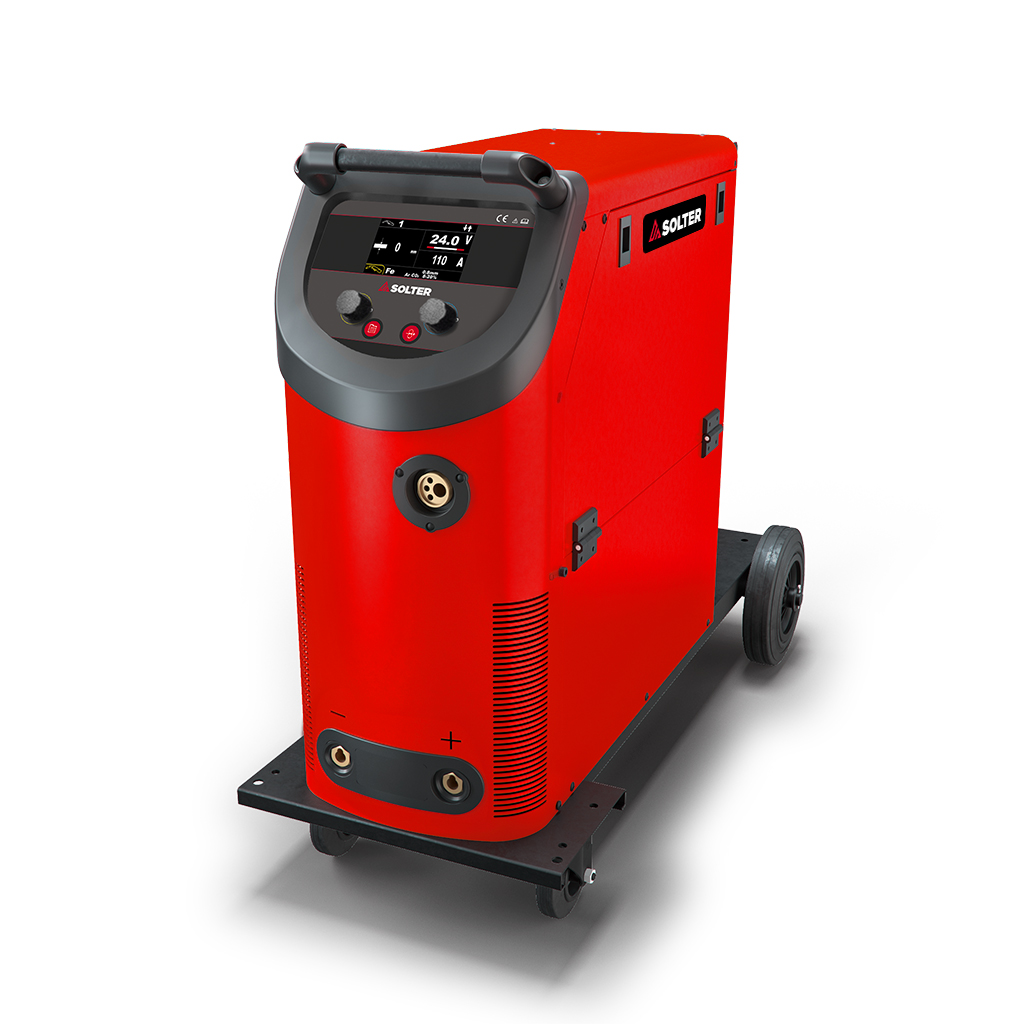

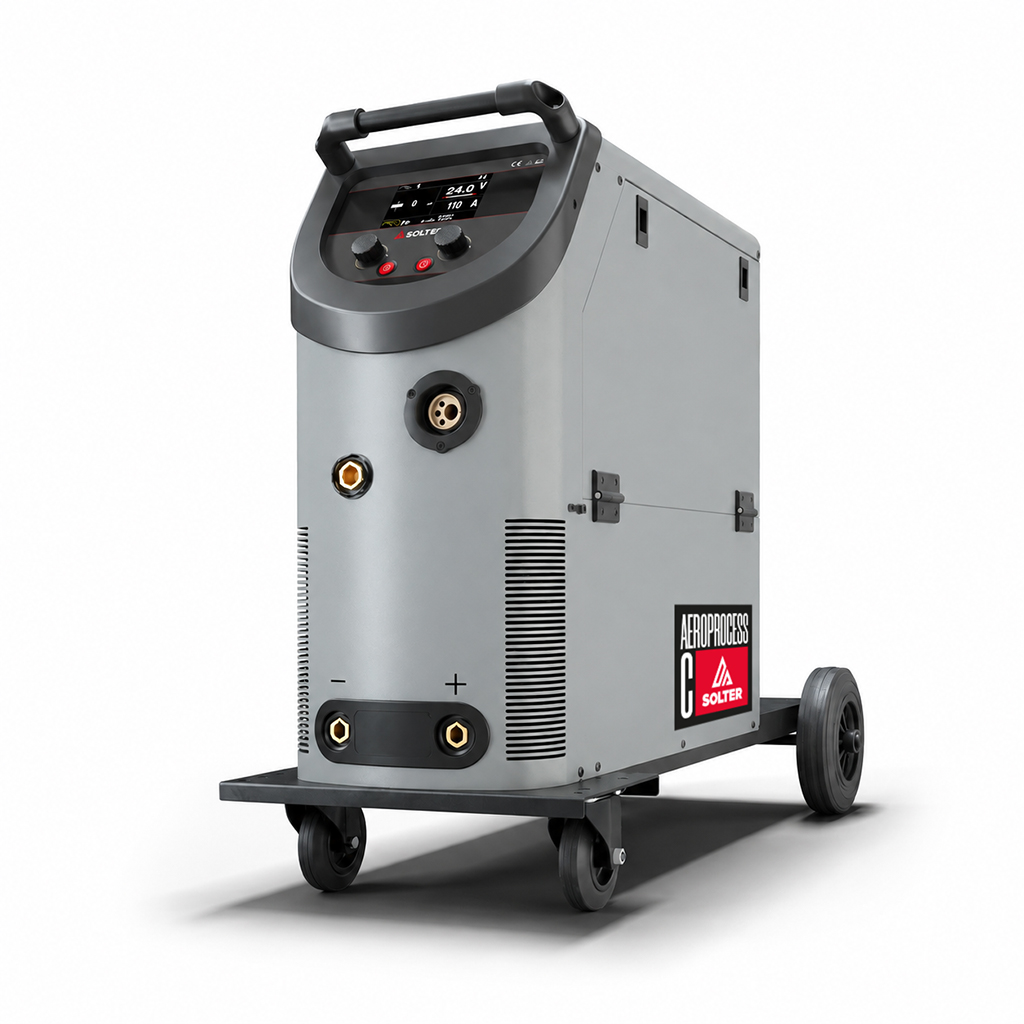

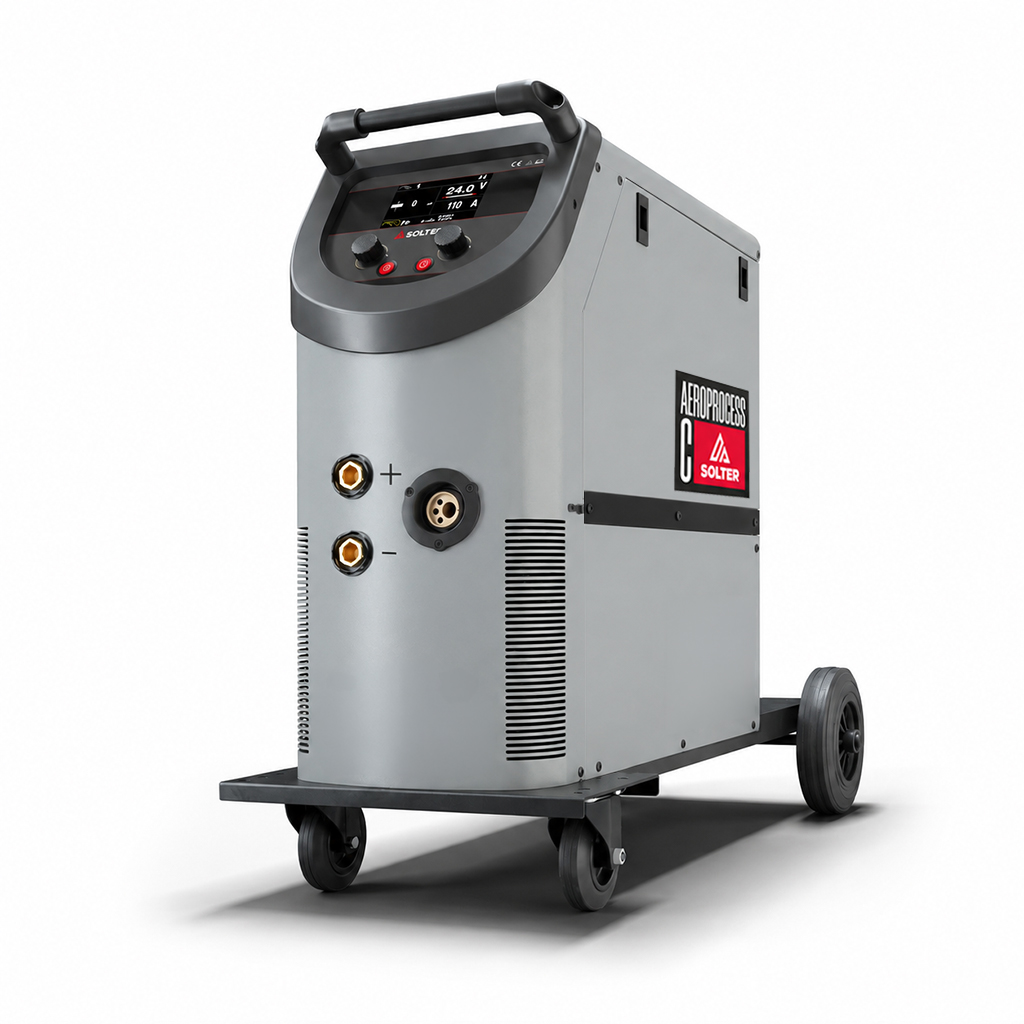

AEROPROCESS C WI
The AEROPROCESS C Wi from Solter is a compact multiprocess welding machine that combines power, advanced synergic control, and digital connectivity. Compatible with MIG/MAG, TIG Lift-Arc, and MMA processes, it enables welding of steel, stainless steel, aluminum, and silicon bronze with precise, clean results. Its WaaS Welding 4.0 platform with WiFi connection allows remote control and management of up to 10 welding programs, optimizing productivity. With 320A and 400A versions, a robust design, and advanced functions such as pulsed arc, it is the perfect solution for professionals seeking performance, precision, and versatility in their welding projects.
Main Features:
✓ Multiprocess welding: Compatible with MIG/MAG, TIG Lift-Arc, and MMA, adapting to different materials and applications.
✓ Advanced synergic control: Precise regulation through wire speed (m/min) and current (A), with real-time parameter display.
✓ Digital connectivity: WiFi integration with WaaS Welding 4.0 platform for remote control, efficient management, and program storage.
✓ High performance on materials: Excellent behavior on carbon steel (SG3), stainless steel (Ss-309, Ss-316), aluminum (Al-5356, Al-4043), and silicon bronze (CuSi₃).
✓ Advanced functions with PULSE option: Compatible with pulsed and double-pulsed arc, achieving cleaner, more precise, and spatter-free welds.
✓ Power and productivity: Current up to 320A in the standard version and 400A in the extended version, delivering maximum efficiency.
✓ Compact and robust design: Dimensions of 920x270x640 mm, weight of 36 kg, and IP23S protection rating, ideal for demanding working conditions.
✓ Accessory compatibility: Compatible with TIG torches SR-26, R25 AR/CO₂ regulators, and specific TIG adapters for AeroProcess.
| General | |
|---|---|
| Intensity at 60%(100%) a 40ºC | 280A (260A) // 320A (280A) |
| Intensity MAX. | 320A // 400A |
| Regulation | 10-320A(10,4-30V) // 10A-400A(10,4-34V) |
| Tech | |
| Usable wire coil | D200 (5 kg), D300 (15 kg) |
| Usable welding wire | 0,6 - 1,6 mm |
| Wire feeder rolls | 4R |
| Electric | |
| Supply Voltage | 400V - 3ph |
| Absorved power max. | 22KVA // 33KVA |
| Structural | |
| Dimensions | 920x270x640mm |
| Protection index | IP23S |
| Regulation board | Aeroprocess LCD |
| Weight | 36kg |
| Ventilation | TUNNEL AUTOMATIC |
| Configuraciones | |
| Potencia (Amp) | 320 or 400 |
| Version | BASIC or PULSE |
| Antorcha MIG/MAG | SX-25 4m + Sirga Acero 1.0-1.2mm or SX-25 3m + Sirga Grafito 1.0-1.2mm or SX-36 4m + Sirga Acero 1.0-1.2mm or SX-36 3m + Sirga Grafito 1.0-1.2mm or SX PULSE 4m + Sirga Acero 1.0-1.2mm or SX PULSE 3m + Sirga Acero 1.0-1.2mm or Sin antorcha |
| Conjunto Masa | 06114 - 3m Cu35mm 35-50 400A or Sin pinza |
