DIRT 200 CEL
Portaelectrodos 1,5m Ø25, Masa 2m Ø25

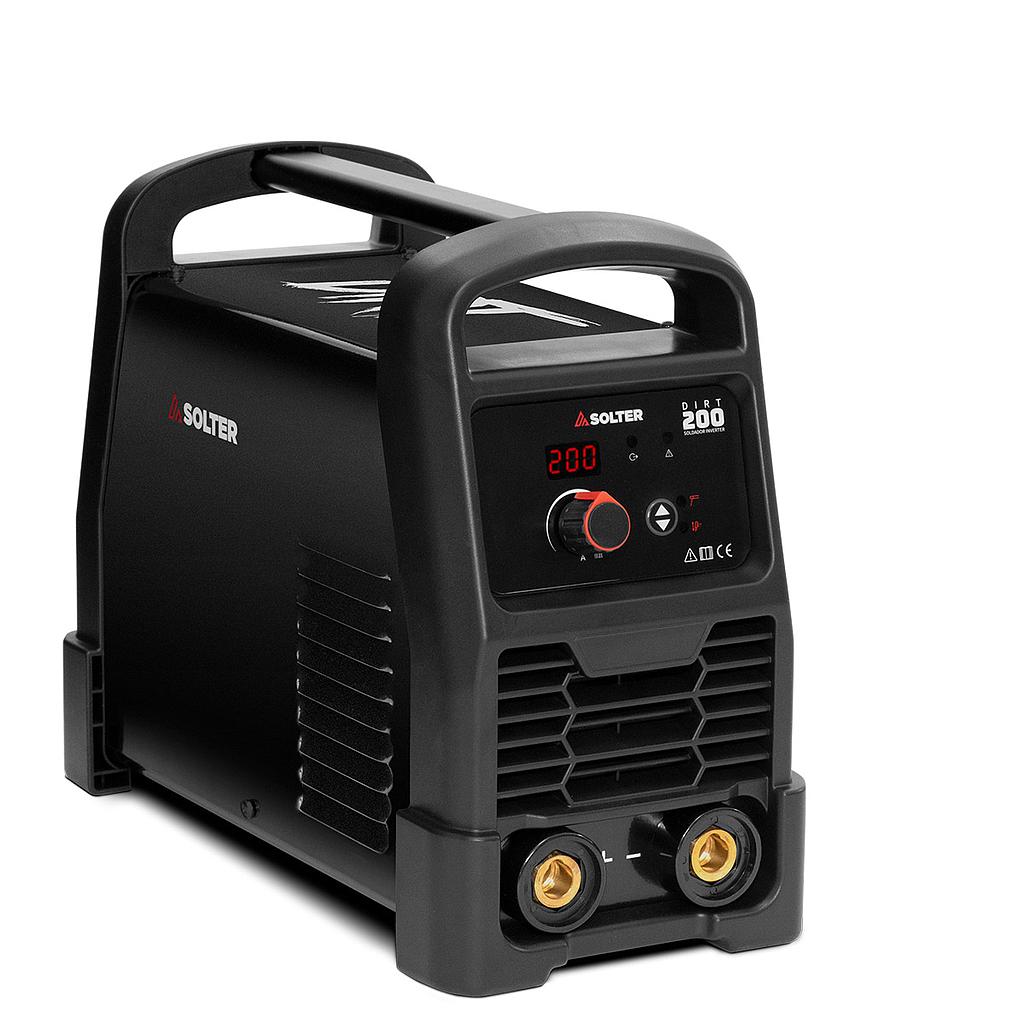

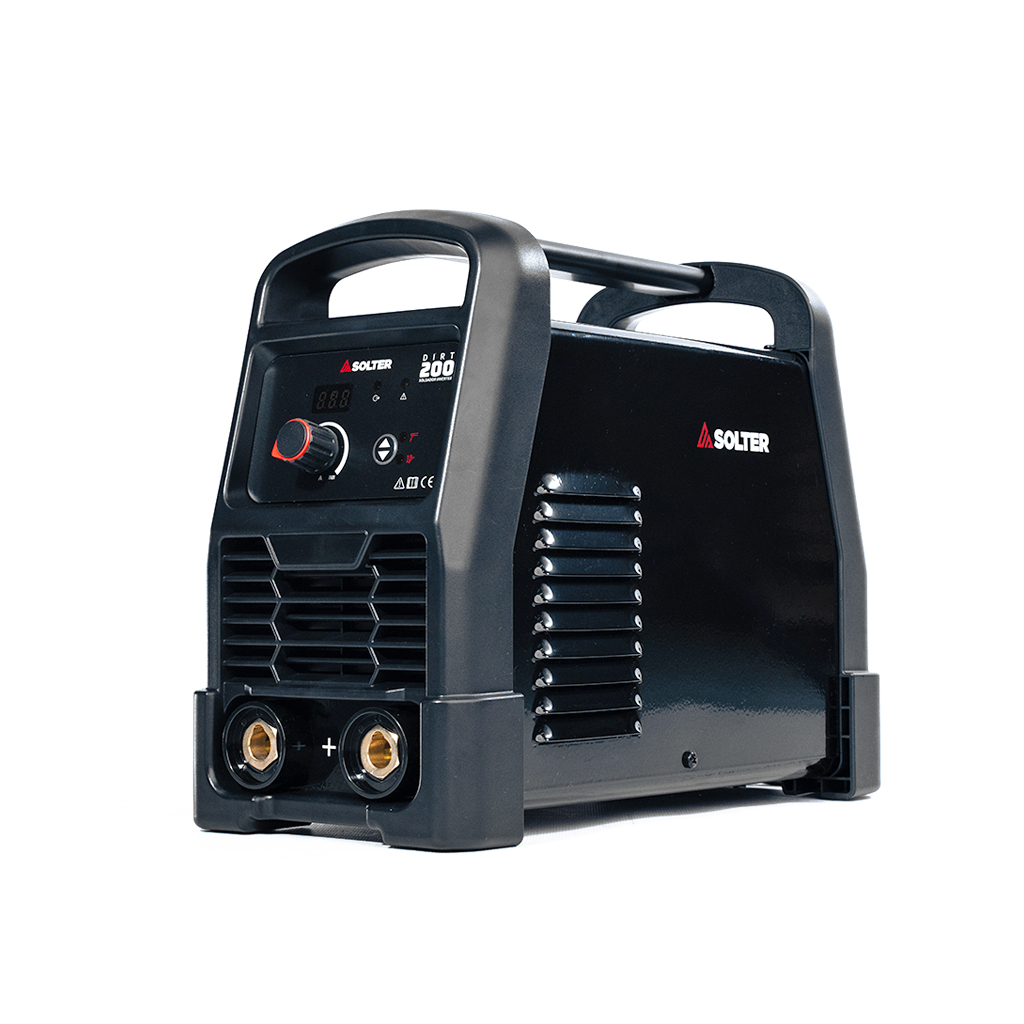

The Solter DIRT 200 CEL welder combines advanced Inverter technology and a portable design to deliver professional MMA and TIG Lift-Arc welding. Its compatibility with all types of electrodes, including aluminum, makes it ideal for demanding tasks. It features Hot-Start and Arc-Force for greater stability and ease of use. Weighing only 6 kg, it is perfect for intensive projects outdoors or in areas with limited access to the power grid.
Main Features:
✓ Arc-Sense Technology: enables welding even with special electrodes such as aluminum, ensuring a continuous and precise arc.
✓ MMA and TIG Lift-Arc compatibility: maximum flexibility in professional applications.
✓ Latest-generation Inverter system: reduces spatter, improves arc control, and optimizes energy consumption.
✓ Hot-Start and Arc-Force functions: make arc ignition easier and stabilize the process even with challenging materials.
✓ High energy efficiency: designed to minimize consumption without compromising power.
✓ Precise digital regulation: intuitive control panel that allows quick adjustments with professional accuracy.
✓ Optimized portability: only 6 kg in weight and compact dimensions (370 x 166 x 280 mm), ideal for transport and for work at heights or in confined spaces.
✓ Generator-compatible operation: works within 220-240V ranges, allowing use in remote locations or without direct connection to the grid.
✓ Robust and durable design: engineered for demanding environments and intensive use.
| General | |
|---|---|
| Duty Cycle at 40ºC | 40% |
| Regulation range | 20 - 200A |
| Intensity MAX. | 200A |
| Intensity at 60%(100%) a 40ºC | 180A (150A) |
| Regulations | EN 60974-1, EN 60974-10 |
| Tech | |
| Usable electrodes TIG | 1,6mm - 3,2mm |
| Usable electrodes MMA | 1,6mm - 4,0mm |
| Electric | |
| Open-circuit voltage | 72V |
| Operating range | 220 - 240V |
| Maximum absorbed power | 9kva |
| Fuse | 16A |
| Supply Voltage | 230V - 1Ph |
| Structural | |
| Ventilation | FORCED |
| Weight | 6kg |
| Regulation board | SOLTER DIGITAL |
| Protection index | IP21S |
| Dimensions | 370x166x280 |
| Technologies | |
| Tecnologies | Anti STICK, Arc Force, Hot-Start, CEL / ALU, Generator OK |
